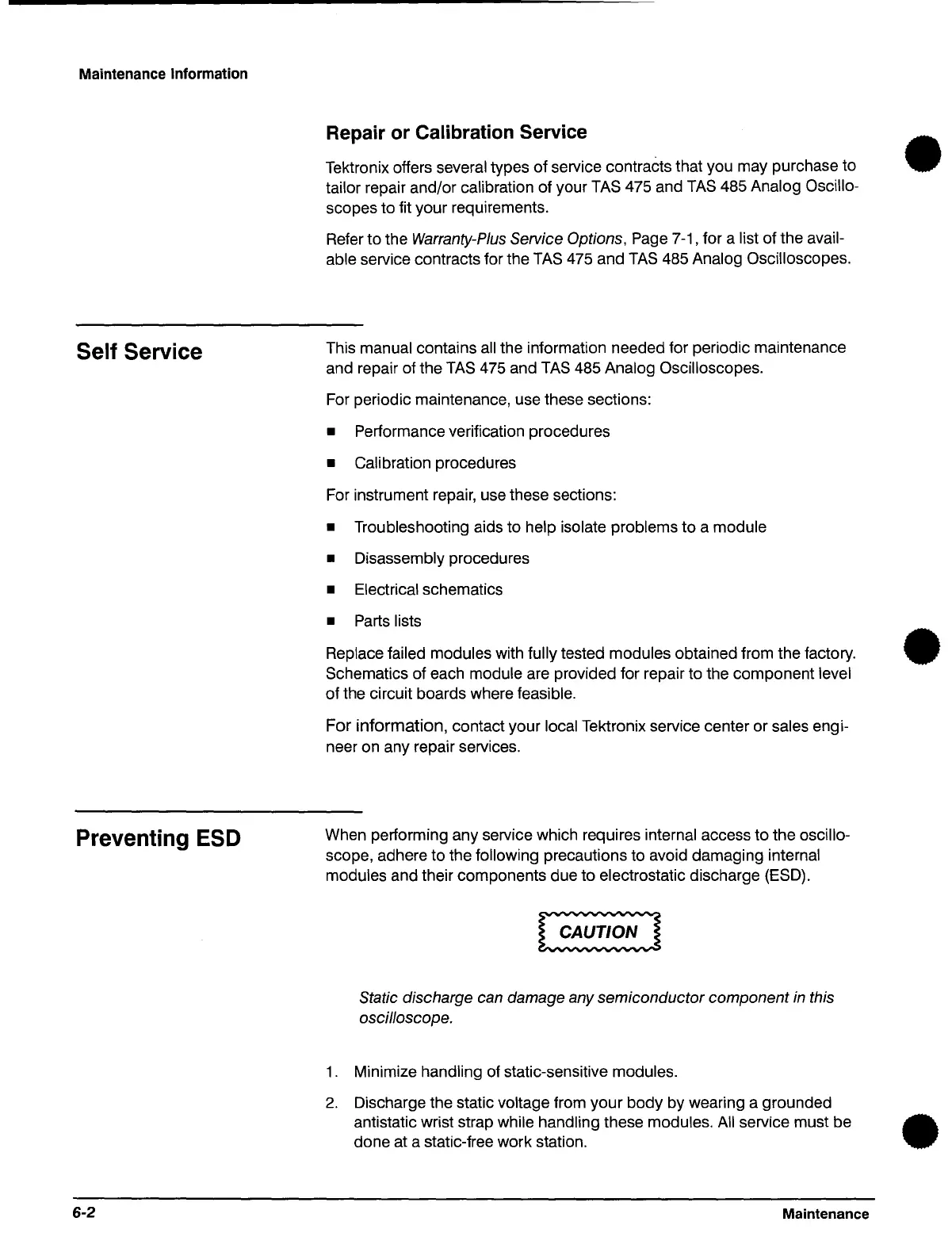

Maintenance Information
Self Service
Preventing ESD
6-2
Repair or Calibration Service
Tektronix offers several types
of
service contracts that you may purchase to
tailor repair and/or
calibration of your
TAS
475 and
TAS
485 Analog Oscillo-
scopes to fit your requirements.
Refer to the Warranty-Plus Service Options,
Page 7-1, for a list of the avail-
able
service contracts for the
TAS
475 and
TAS
485 Analog Oscilloscopes.
This manual contains all the information needed for periodic maintenance
and repair of the
TAS
475 and
TAS
485 Analog Oscilloscopes.
For periodic maintenance, use these sections:
• Performance verification procedures
• Calibration procedures
For instrument repair, use these sections:
• Troubleshooting aids to help isolate problems
to
a module
• Disassembly
procedures
• Electrical schematics
• Parts lists
Replace failed modules
with fully tested modules obtained from the factory.
Schematics of each
module are provided for repair to the component level
of
the circuit boards where feasible.
For
information,
contact your local Tektronix service center or sales engi-
neer on any repair services.
When performing any service which requires
internal access to the oscillo-
scope, adhere to the following precautions to avoid damaging internal
modules
and their components due to electrostatic discharge (ESD).
Static discharge can damage any semiconductor component
in
this
oscilloscope.
1 . Minimize
handling of static-sensitive modules.
2.
Discharge the static voltage from your body by wearing a grounded
antistatic wrist strap
while handling these modules.
All
service must be
done at a static-free work station.
Maintenance
•
•
•
