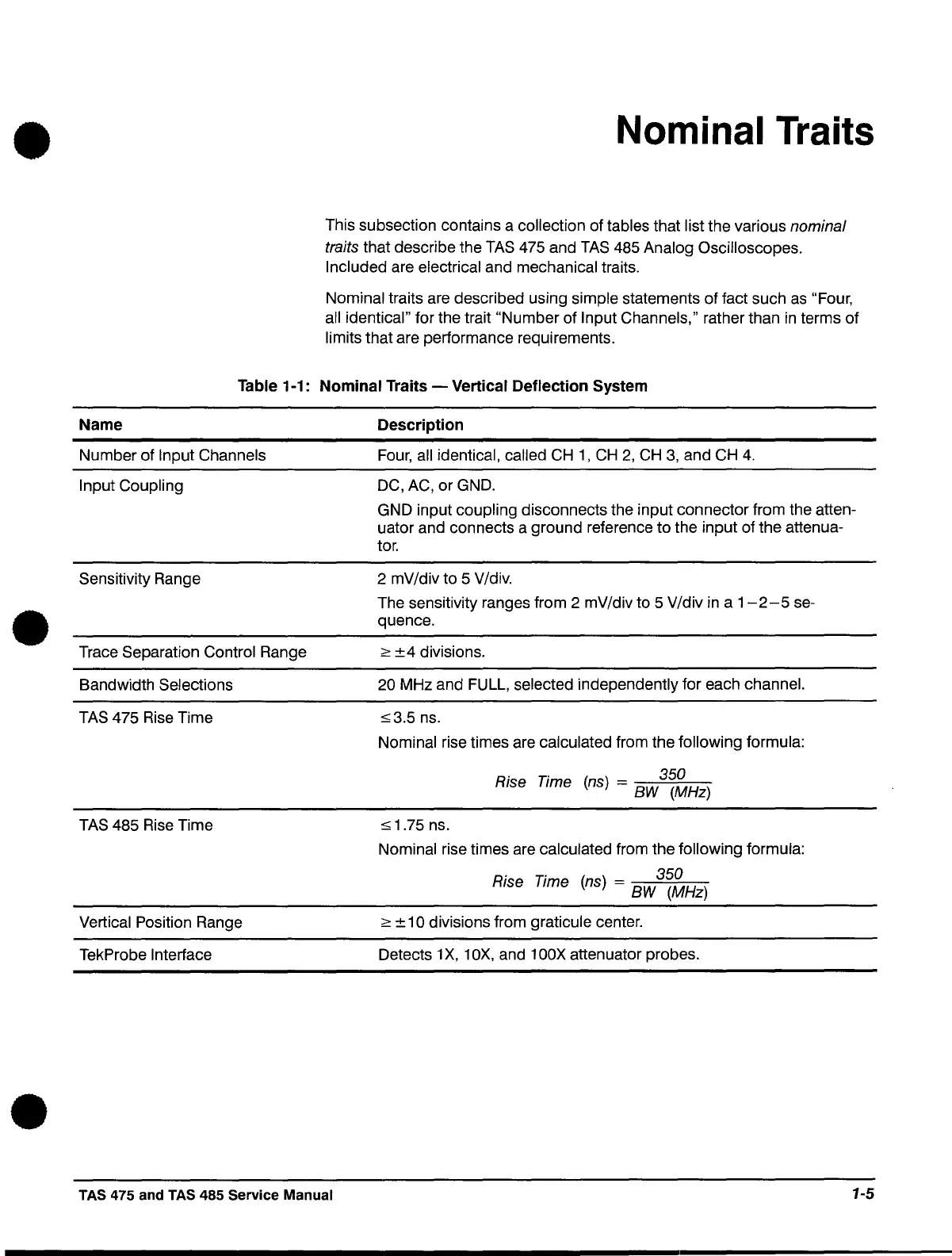

Nominal Traits
This subsection contains a collection of tables that list the various nominal
traits that describe the TAS 475 and TAS 485 Analog Oscilloscopes.
Included
are electrical and mechanical traits.
Nominal traits are described using simple statements of fact such as "Four,
all identical"
for the trait "Number of Input Channels," rather than in terms of
limits that are performance requirements.
Table 1-1: Nominal Traits - Vertical Deflection System
Name
Number of Input Channels
Input Coupling
Sensitivity Range
Trace Separation
Control Range
Bandwidth
Selections
TAS 475 Rise Time
TAS 485 Rise Time
Vertical Position Range
TekProbe
Interface
TAS 475 and TAS 485 Service Manual
Description
Four, all identical, called CH 1, CH 2, CH 3, and CH 4.
DC, AC, or GND.
GND input
coupling disconnects the input connector from the atten-
uator and connects a ground reference to the input of the attenua-
tor.
2 mV/div to 5 V/div.
The sensitivity ranges from
2 mV/div to 5 V/div in a 1-2-5 se-
quence.
~ ±4 divisions.
20 MHz and FULL, selected independently for each channel.
:s; 3.5 ns.
Nominal rise times are calculated from the following formula:
:s; 1 .75 ns.
350
Rise Time (ns) = BW (MHz)
Nominal rise times are calculated from the following formula:
R
· T· () 350
Ise ,Ime ns = BW (MHz)
~ ± 10 divisions from graticule center.
Detects 1
X, 10X, and 100X attenuator probes.
1-5
