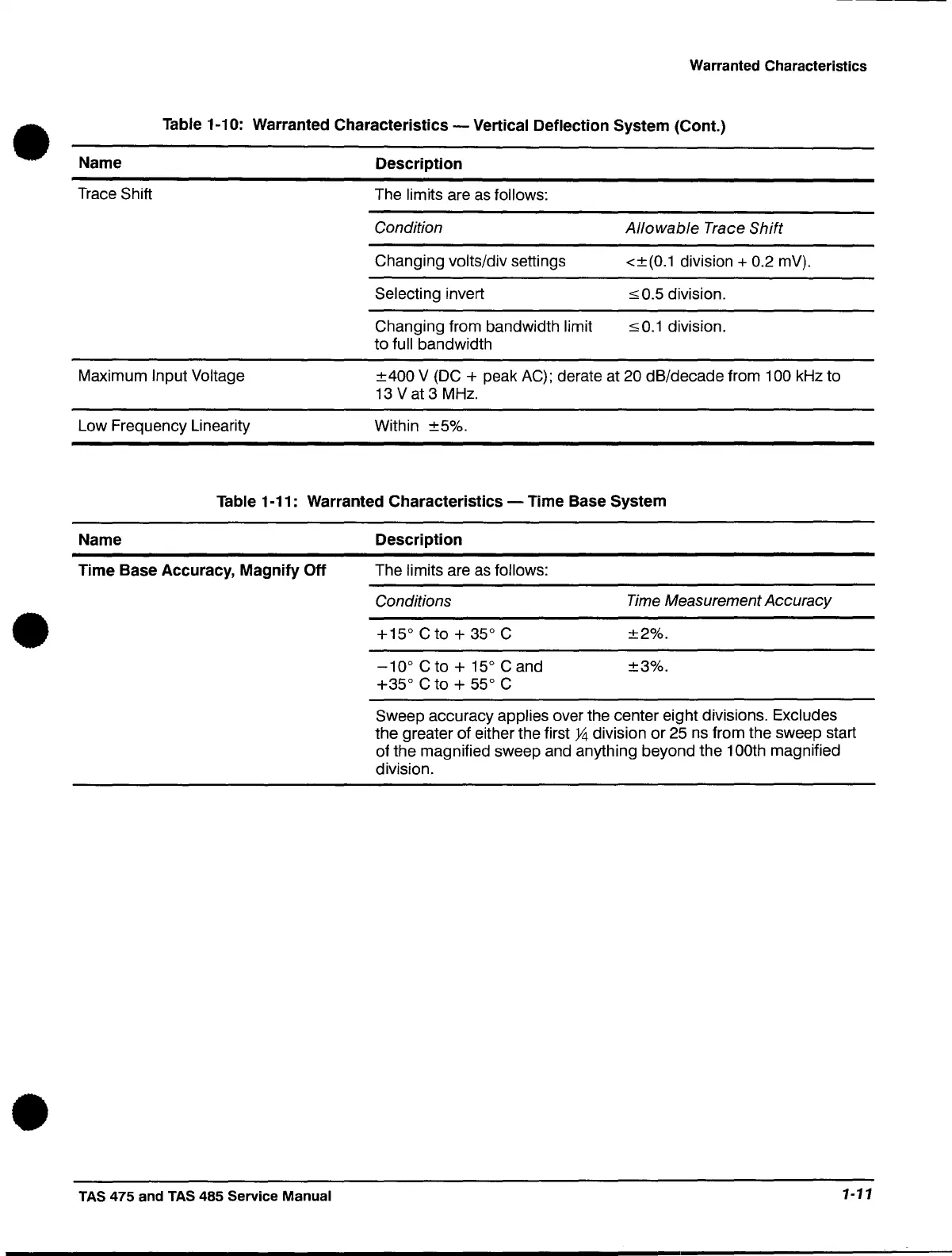

Tektronix TAS 475 Service Manual

•
•
•
Warranted Characteristics
Table 1-10: Warranted Characteristics - Vertical Deflection System (Cont.)
Name
Trace Shift
Maximum Input Voltage
Low Frequency Linearity
Description
The limits are as follows:
Condition
Changing volts/div settings
Selecting invert
Changing from bandwidth
limit
to full bandwidth
Allowable Trace Shift
<±(0.1 division + 0.2 mV).
::; 0.5 division.
::; 0.1 division.
±400 V (DC + peak AC); derate at 20 dB/decade from 100 kHz to
13
Vat 3 MHz.
Within
±5%.
Table 1-11: Warranted Characteristics - Time Base System
Name
Time Base Accuracy, Magnify
Off
TAS 475 and TAS 485 Service Manual
Description
The limits are as follows:
Conditions
_10° C to + 15° C and
+ 35 ° C to + 55 ° C
Time Measurement Accuracy
±2%.
±3%.
Sweep accuracy applies over the center eight divisions. Excludes
the greater of either the first J1I division or 25 ns from the sweep start
of the magnified sweep and anything beyond the
100th magnified
division.
1-11
