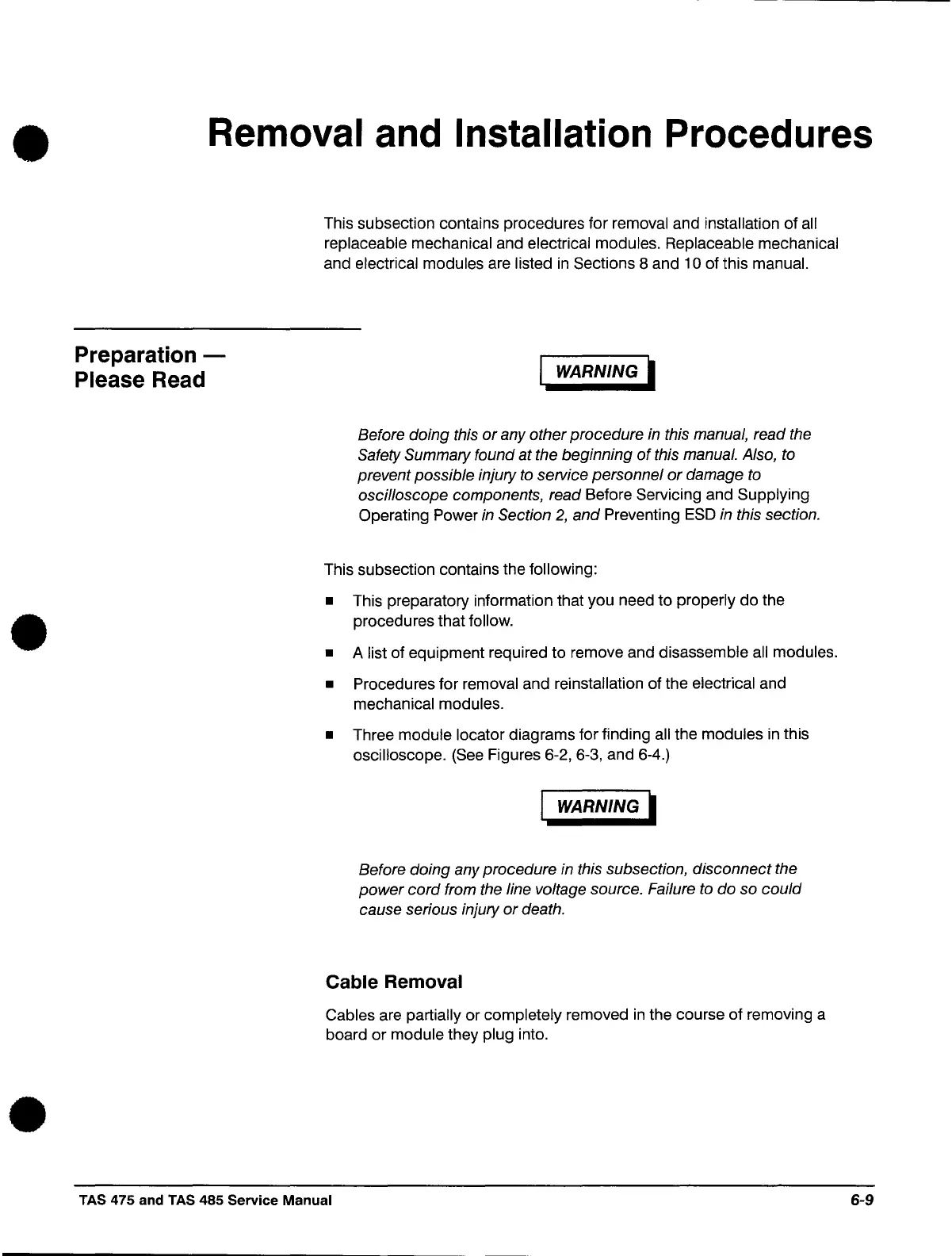

Removal and Installation Procedures
Preparation -
Please Read
This subsection contains procedures for removal and installation of
all
replaceable mechanical and electrical modules. Replaceable mechanical
and electrical modules are listed
in
Sections 8 and 10 of this manual.
WARNING I
Before doing this
or
any other procedure in this manual, read the
Safety Summary found at the beginning
of
this manual. Also,
to
prevent possible injury
to
service personnel
or
damage
to
oscilloscope components, read Before Servicing and Supplying
Operating Power in Section 2, and Preventing
ESD
in this section.
This subsection contains the following:
•
This preparatory information that you need to properly do the
procedures that
follow.
• A list of equipment required to remove and disassemble
all
modules.
•
Procedures for removal and reinstallation of the electrical and
mechanical modules.
•
Three module locator diagrams for finding all the modules in this
oscilloscope. (See Figures 6-2, 6-3, and 6-4.)
WARNING I
Before doing any procedure
in
this subsection, disconnect the
power
cord
from the line voltage source. Failure
to
do so
could
cause serious injury
or
death.
Cable Removal
Cables are partially or completely removed
in
the course of removing a
board or
module they plug into .
TAS 475 and TAS 485 Service Manual
6-9
