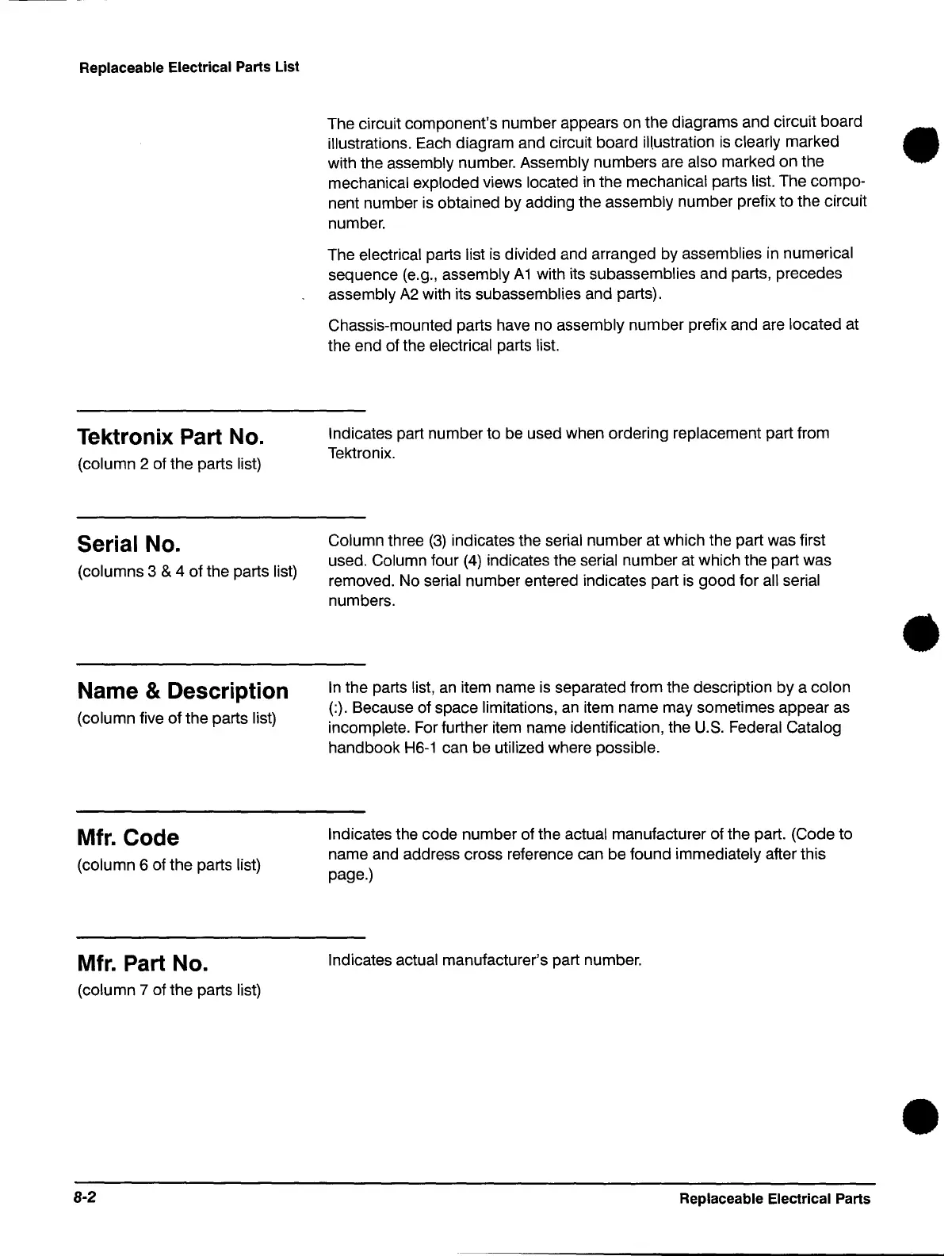

Replaceable Electrical Parts List
Tektronix Part No.
(column 2 of the parts list)
Serial No.
(columns 3 & 4
of
the
parts list)
Name & Description
(column five
of
the parts list)
Mfr. Code
(column 6 of
the
parts list)
Mfr. Part No.
(column 7 of the parts list)
8-2
The circuit component's number appears on
the
diagrams and circuit board
illustrations. Each diagram and circuit board ill,ustration
is
clearly marked •
with the assembly number. Assembly numbers are also marked on the
mechanical
exploded views located in the mechanical parts list. The
compo-
nent number is obtained
by
adding the assembly number prefix
to
the circuit
number.
The
electrical parts list is divided and arranged by assemblies in numerical
sequence (e.g., assembly
A1
with its subassemblies and parts, precedes
assembly
A2
with its subassemblies and parts).
Chassis-mounted parts have no
assembly number prefix and are located at
the end of the
electrical parts list.
Indicates
part number to be used when ordering replacement part from
Tektronix.
Column three
(3)
indicates the serial number at which the part was first
used.
Column four
(4)
indicates the serial number at which the part was
removed. No
serial number entered indicates part
is
good
for all serial
numbers.
In
the parts list, an item name is separated from the description
by
a
colon
(:). Because of space limitations, an item name may sometimes appear as
incomplete. For further item name identification, the
U.S. Federal Catalog
handbook
H6-1
can be utilized where possible.
Indicates
the code number of the actual manufacturer of the part. (Code to
name and address cross reference can be found immediately after this
page.)
Indicates actual manufacturer's part number.
Replaceable Electrical Parts
•
•
