Tektronix TAS 475 Service Manual

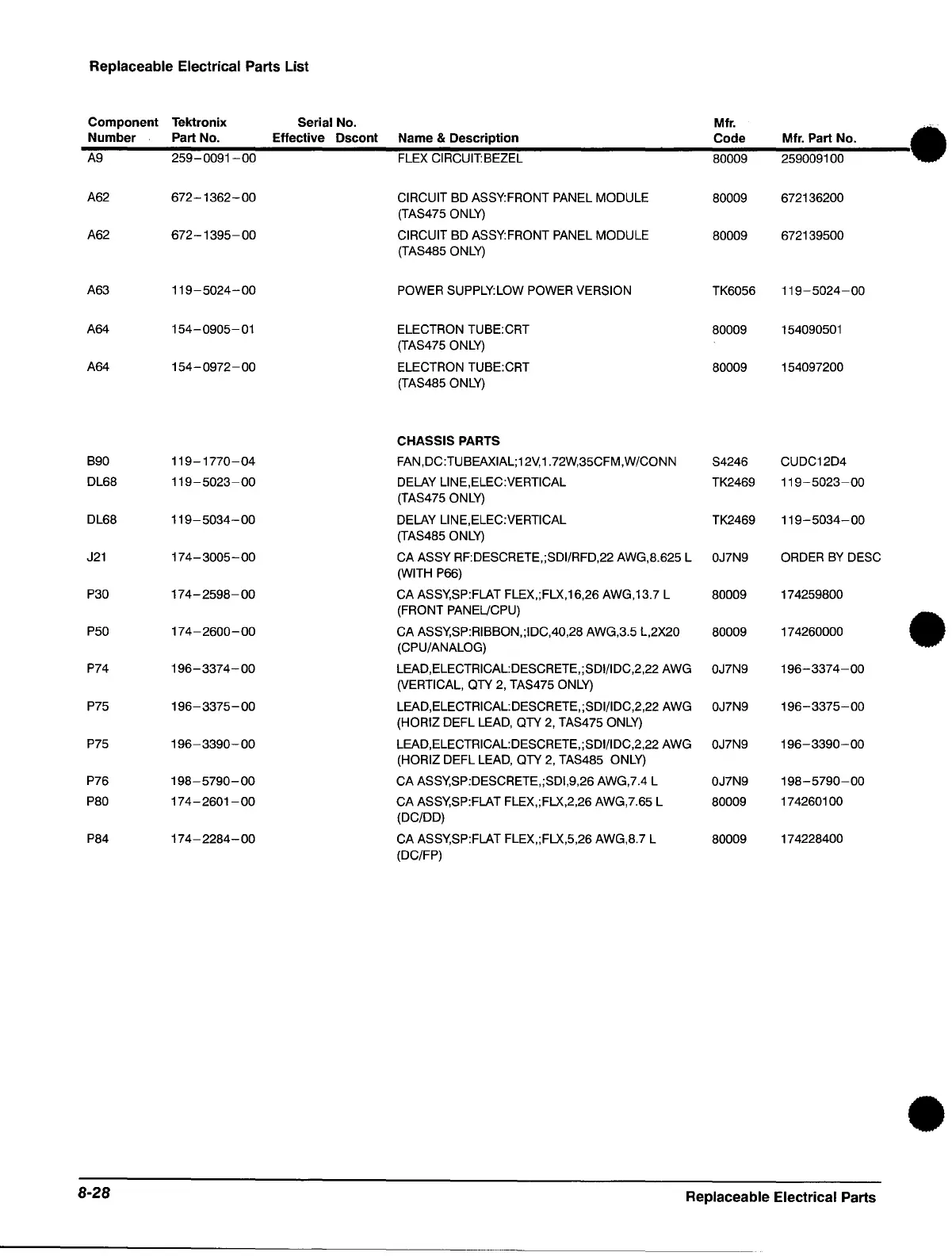

Replaceable Electrical Parts List
Component Tektronix
Serial No.
Mfr.
•
Number Part No.
Effective Dscont Name
& Description
Code Mfr. Part No.
A9 259-0091-00
FLEX CIRCUIT:BEZEL
80009
259009100
A62
672-1362-00
CIRCUIT BD ASSY:FRONT PANEL MODULE
80009
672136200
(TAS475
ONLy)
A62
672-1395-00
CIRCUIT BD ASSY:FRONT PANEL MODULE
80009
672139500
(TAS485 ONLY)
A63 119-5024-00
POWER SUPPLY:LOW POWER VERSION TK6056
119-5024-00
A64 154-0905-01
ELECTRON TUBE:CRT
80009
154090501
(TAS475 ONLY)
A64 154-0972-00
ELECTRON TUBE:CRT
80009
154097200
(TAS485 ONLY)
CHASSIS PARTS
B90
119-1770-04
FAN,DC:TUBEAXIAL;12V,1.72W,35CFM,w/CONN S4246 CUDC12D4
DL68
119-5023-00
DELAY L1NE,ELEC:VERTICAL TK2469
119-5023-00
(TAS475 ONLY)
DL68 119-5034-00
DELAY L1NE,ELEC:VERTICAL TK2469 119-5034-00
(TAS485 ONLY)
J21 174-3005-00 CA ASSY RF:DESCRETE,;SDI/RFD,22 AWG,8.625 L
OJ7N9
ORDER BY DESC
(WITH P66)
P30
174-2598-00 CA ASSY,SP:FLAT FLEX,;FLX,16,26 AWG,13.7 L
80009
174259800
(FRONT PANEUCPU)
•
P50 174-2600-00
CA ASSY,SP:RIBBON,;IDC,40,28 AWG,3.5 L,2X20
80009
174260000
(CPU/ANALOG)
P74
196-3374-00
LEAD,ELECTRICAL:DESCRETE,;SDI/IDC,2,22 AWG OJ7N9
196-3374-00
(VERTICAL, QTY 2, TAS475 ONLY)
P75 196-3375-00
LEAD,ELECTRICAL:DESCRETE,;SDI/IDC,2,22 AWG OJ7N9
196-3375-00
(HORIZ DEFL LEAD, QTY 2, TAS475 ONLY)
P75 196-3390-00
LEAD,ELECTRICAL:DESCRETE,;SDI/IDC,2,22 AWG OJ7N9
196-3390-00
(HORIZ DEFL LEAD, QTY 2, TAS485 ONLy)
P76 198-5790-00
CA ASSY,SP:DESCRETE,;SDI,9,26 AWG,7.4 L OJ7N9
198-5790-00
P80 174-2601-00
CA ASSY,SP:FLAT FLEX,;FLX,2,26 AWG,7.65 L 80009
174260100
(DC/DD)
P84
174-2284-00
CA ASSY,SP:FLAT FLEX,;FLX,5,26 AWG,8.7 L 80009
174228400
(DC/FP)
•
8-28
Replaceable Electrical Parts
