SCOPE Mode
THS710A, THS720A, THS730A & THS720P User Manual
3–51

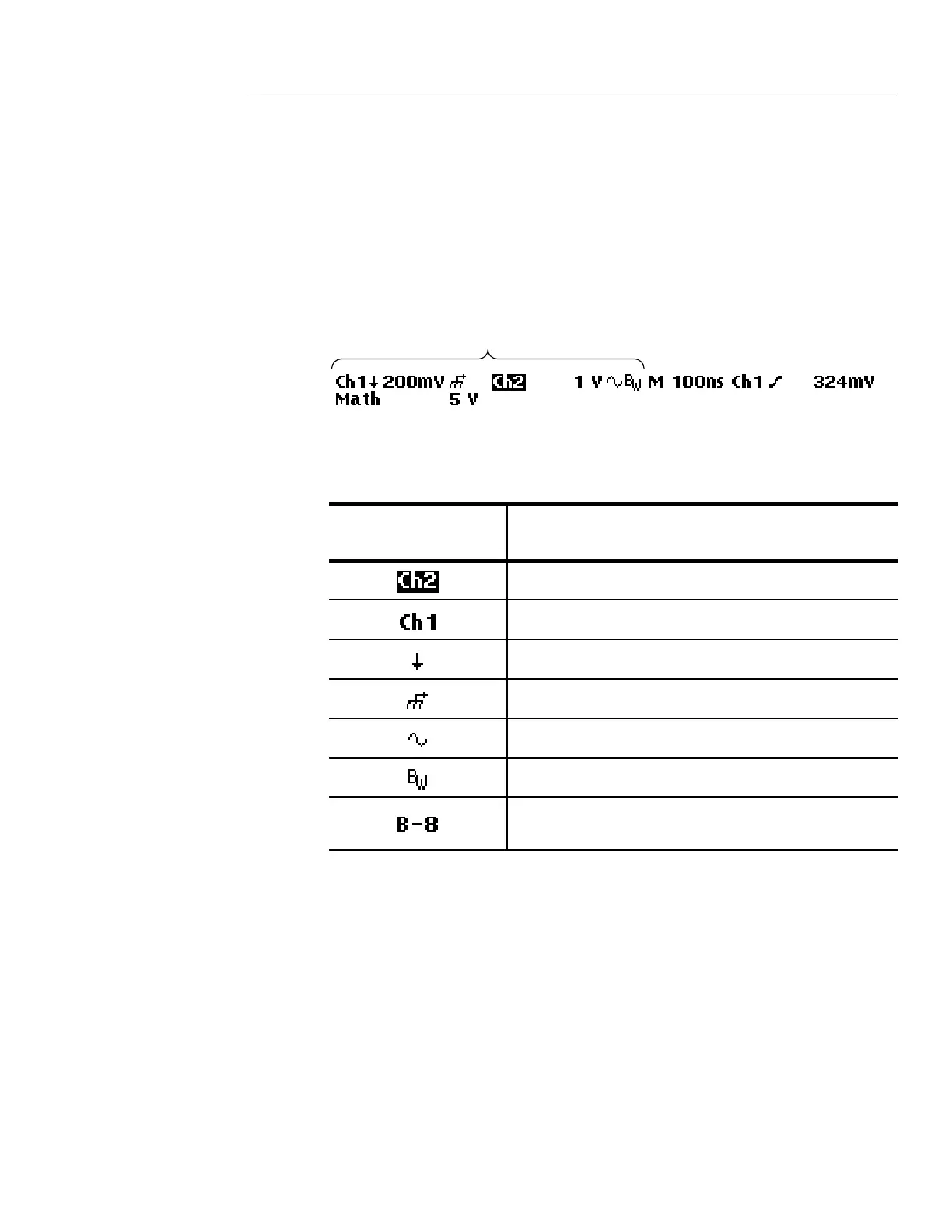

Waveform Readout Lines
The readout lines below the graticule contain specific information
about displayed waveforms. The top line displays vertical readout
for channel 1 and channel 2. The bottom line displays readout for
Ref A, Ref B, or Math, whichever waveform was selected last.
Vertical readouts
The table below shows examples of the vertical readout symbols.
Vertical Readout
Symbols
Explanation
Selected waveform
Unselected waveform
Inverted channel
GND coupling
AC coupling
Bandwidth limit on
Reference waveform Ref B recalled from waveform
storage location eight
