Power-Measurement Application Examples
2–46
THS710A, THS720A, THS730A & THS720P User Manual
Taking Power Measurements (THS720P)

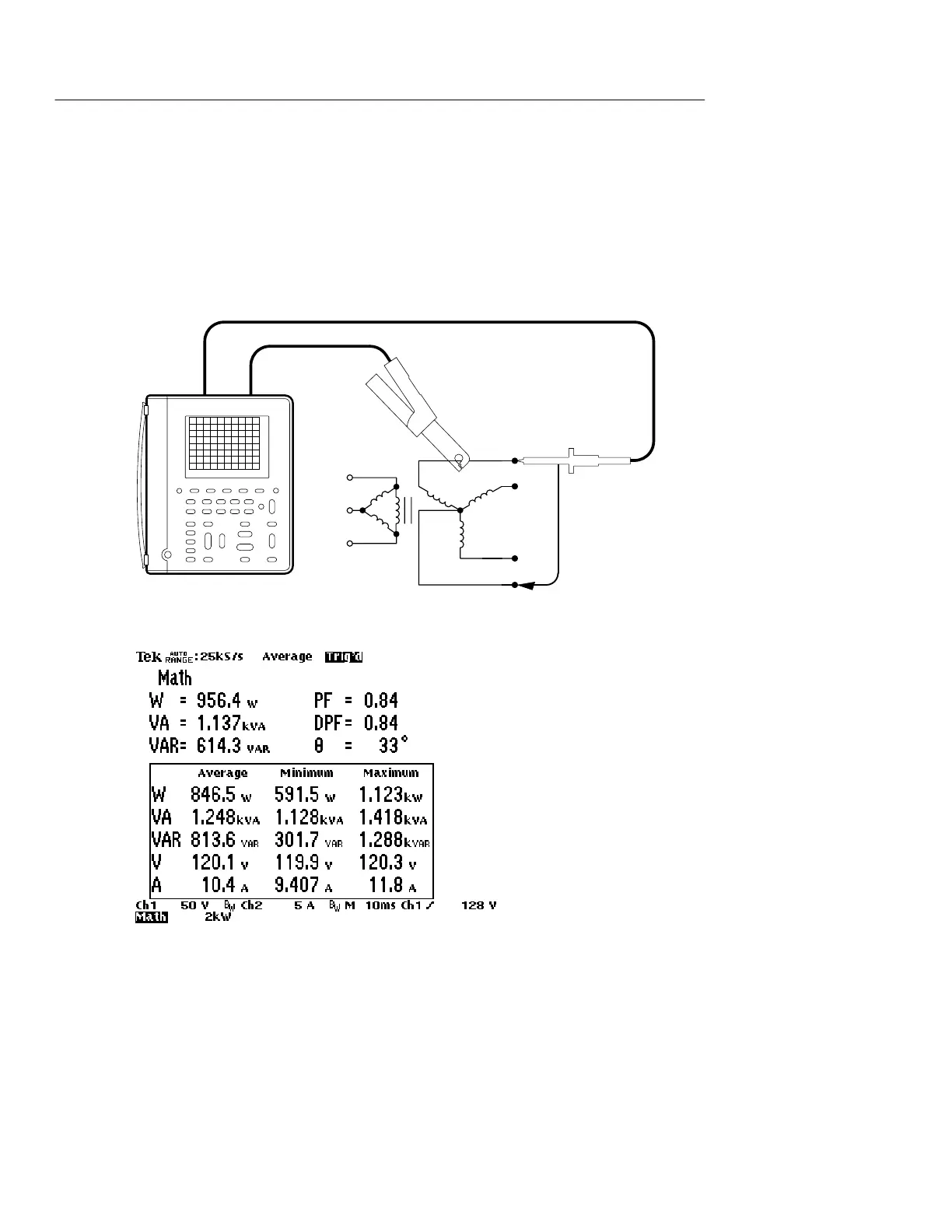

In a manufacturing plant, the load on a particular branch circuit
varies depending on the state of a process. You want to monitor the
power supplied to this circuit over several days to measure the
minimum and maximum load.
Ch 2Ch 1
P1
P2
P3
S1
S2
S3
N
100 mV/A
