Power-Measurement Application Examples
2–52
THS710A, THS720A, THS730A & THS720P User Manual

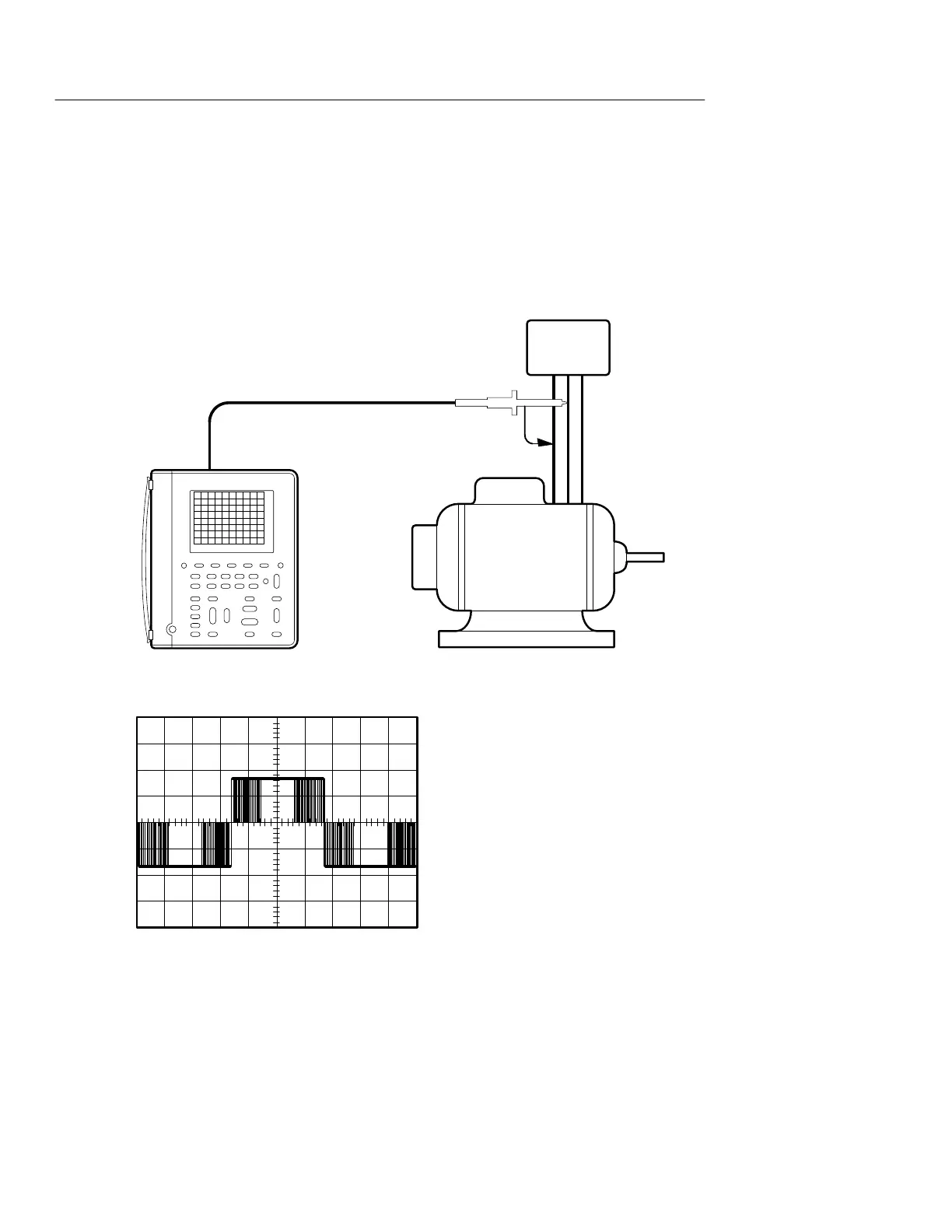

Triggering on a Motor Drive Waveform (THS720P)
You need to analyze the output waveform of a variable-speed AC
motor drive. Connect the TekScope instrument to trigger on the
output waveform of the motor drive.
Ch 1
Motor
drive
