TRIGGER Controls
3–54
THS710A, THS720A, THS730A & THS720P User Manual
TRIGGER Controls

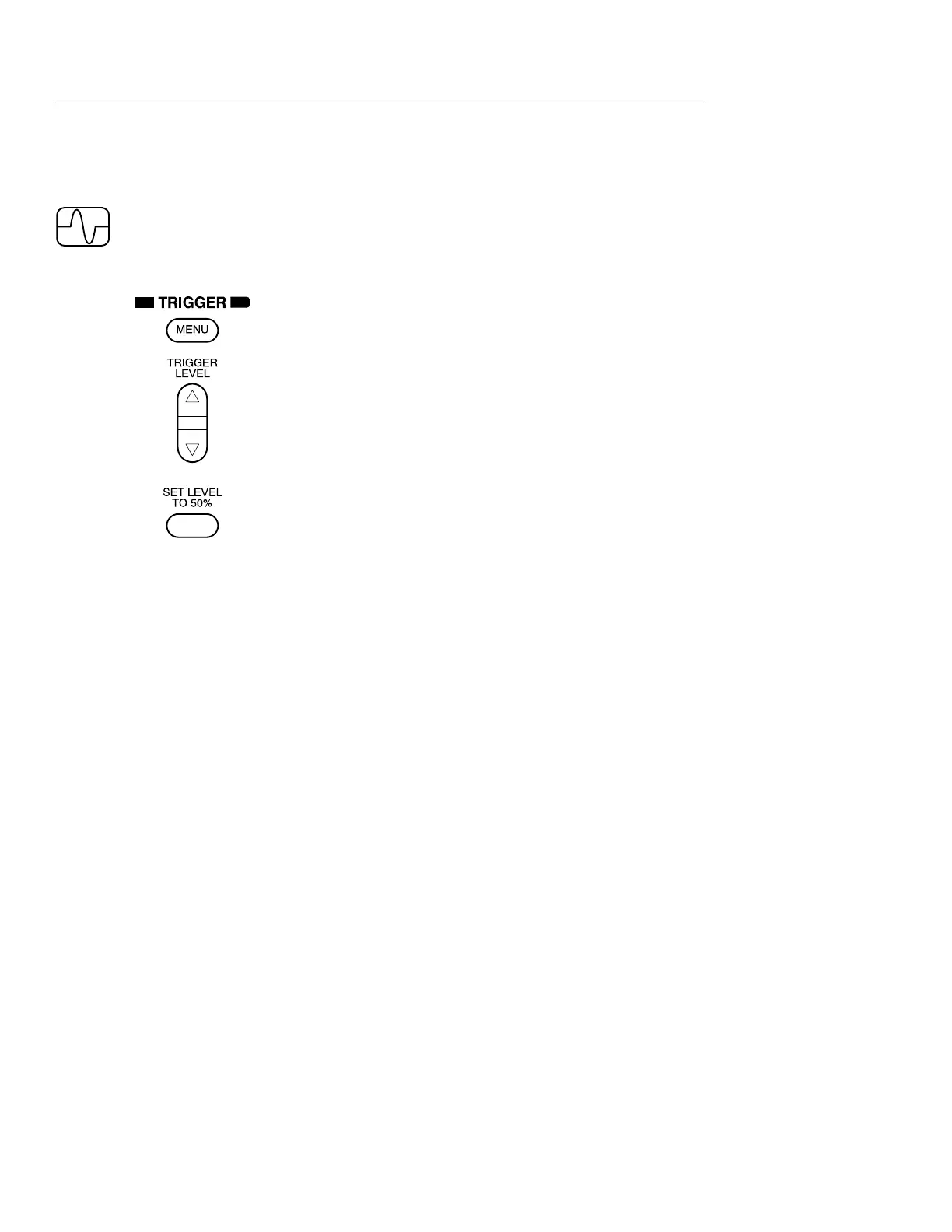

Triggering is an oscilloscope-only function; the trigger controls,
shown below, have no effect in meter mode.
The trigger types are the following:
H Edge triggers on the rising or falling edge of the input signal (see
page 3–56).
H Pulse triggers on specific events that you can qualify by time (see
page 3–58).
H Video triggers on a specific line in the odd or even field, or on all
the lines of an NTSC, PAL, or SECAM standard video signal (see
page 3–60).
H Motor triggers (THS720P) on bipolar, motordrive waveforms (see
page 3–61).
Use the leftmost button in the trigger menu to choose the trigger
type. The remaining items in the trigger menu depend on the trigger
type you choose.
