General-Purpose Application Examples
2–20
THS710A, THS720A, THS730A & THS720P User Manual

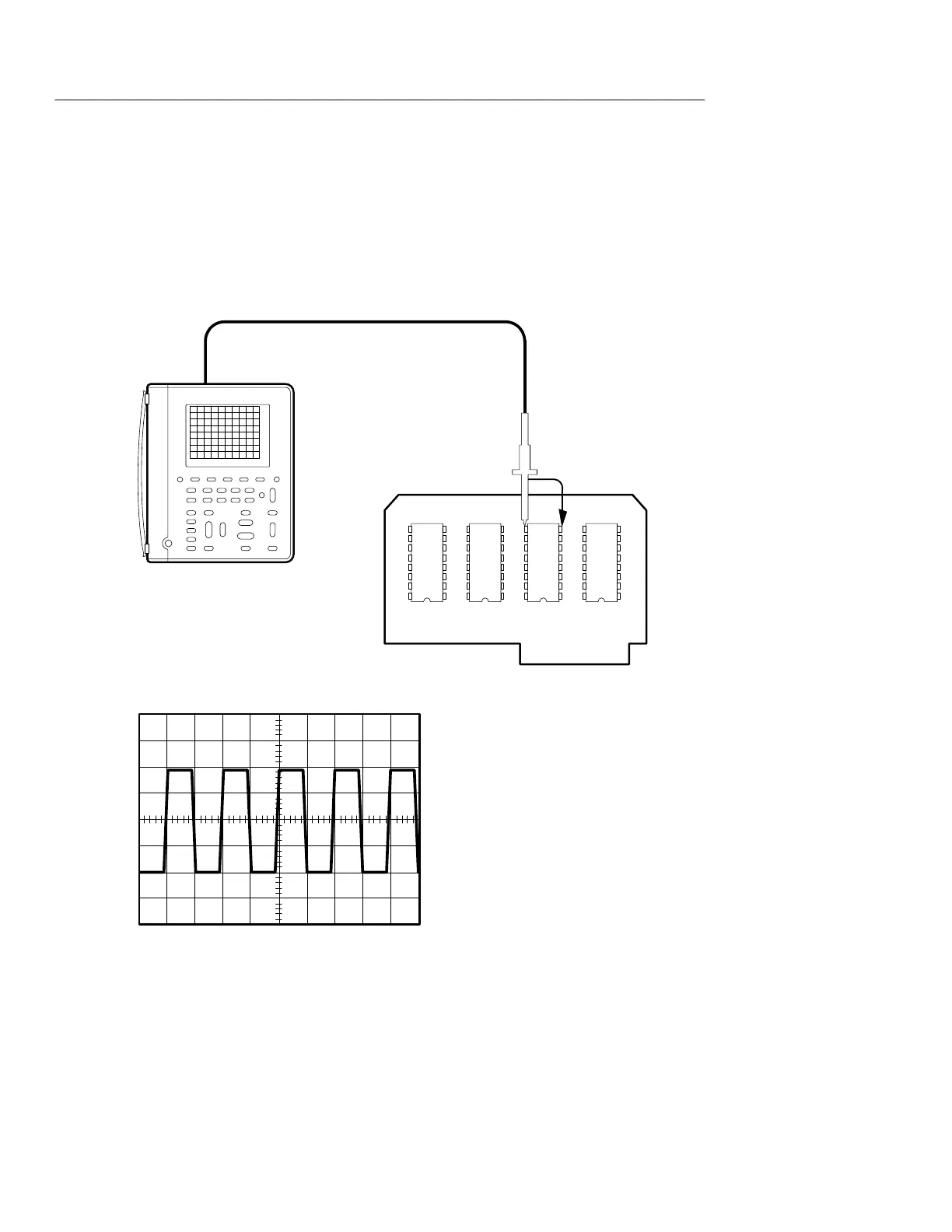

Measuring the Frequency of a Clock Signal
You suspect that the frequency of a TTL clock signal is out of
tolerance. Connect the TekScope instrument to the signal to display
it and measure its frequency.
Ch 1
Freq
30.62 MHz
Ch 1
