Tektronix TekScope THS710A User Manual

Functional Overview
2–10
THS710A, THS720A, THS730A & THS720P User Manual
Compensating the Oscilloscope Probes
To maintain signal fidelity, you must compensate each voltage probe
for the channel input it is connected to.

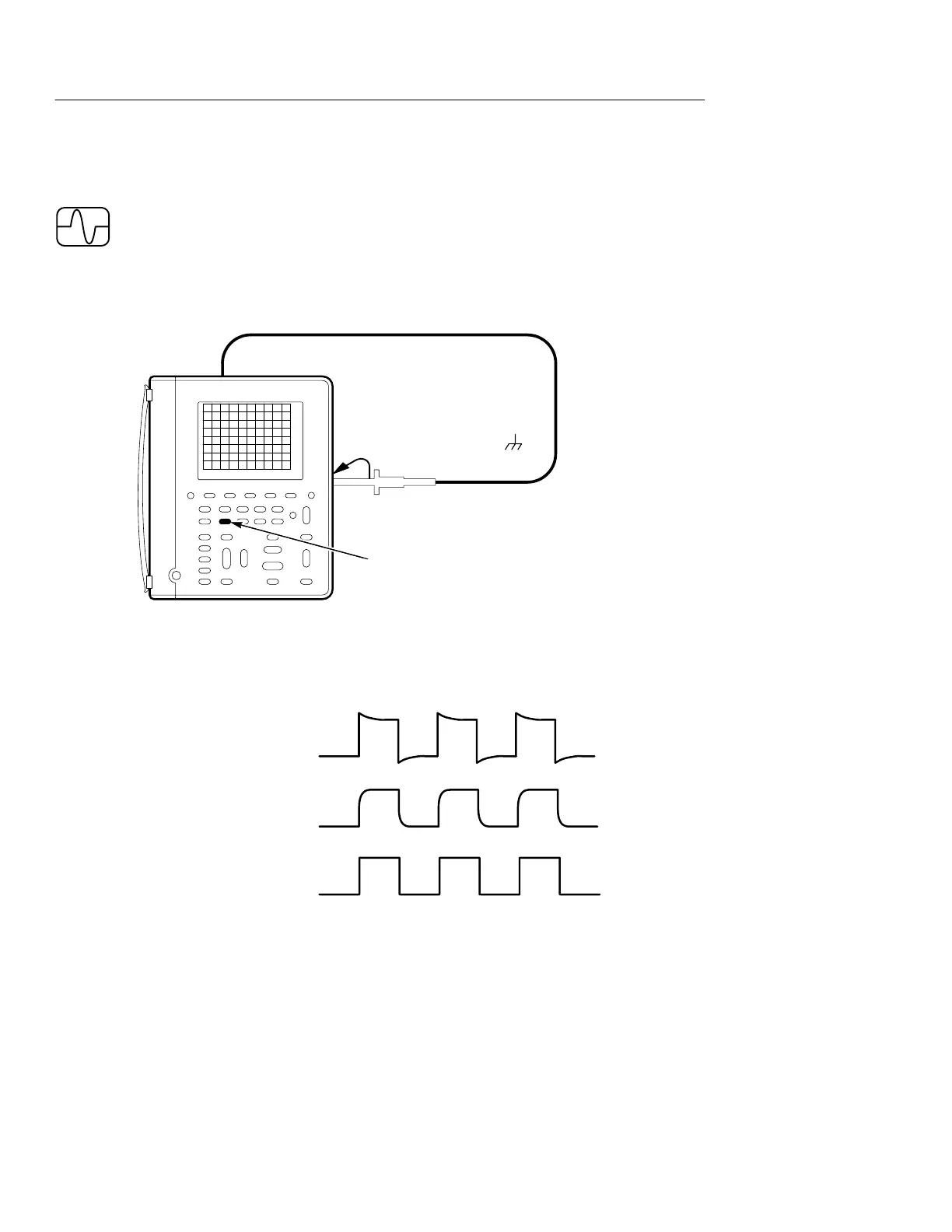

1. Connect the oscilloscope probe and then press AUTORANGE.
Probe tip to PROBE COMP
Probe reference lead to
Ch 1
AUTORANGE
2. Check the shape of the displayed waveform.
Compensated correctly
Overcompensated
Undercompensated
