Functional Overview
THS710A, THS720A, THS730A & THS720P User Manual
2–11
3. If necessary, adjust the probe for correct compensation.

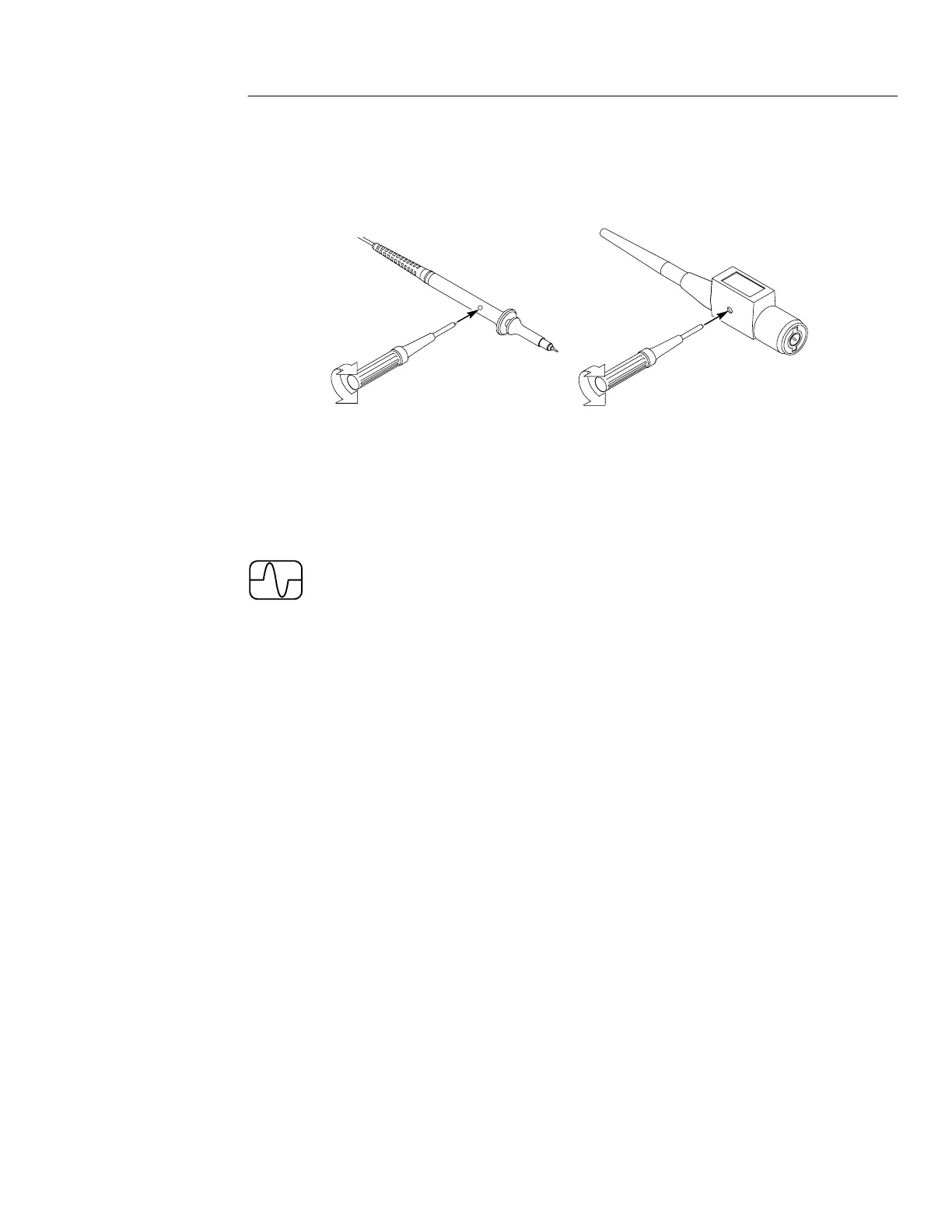

P6117 P5102
4. Repeat these steps for the other probe and channel.
Compensating the Oscilloscope Signal Path
Signal path compensation optimizes the oscilloscope accuracy for
the current ambient temperature. For maximum accuracy, recompen-
sate the signal path if the ambient temperature changes by 5° C or
more.
1. Disconnect any probes or cables from the channel 1 and
channel 2 input BNC connectors.
2. Press UTILITY.
3. Select CAL from the System Menu.
4. Press Signal Path.
5. Press OK Compensate Signal Path. This procedure takes about
one minute to complete.
To Next Page
