VERTICAL Controls
3–68
THS710A, THS720A, THS730A & THS720P User Manual

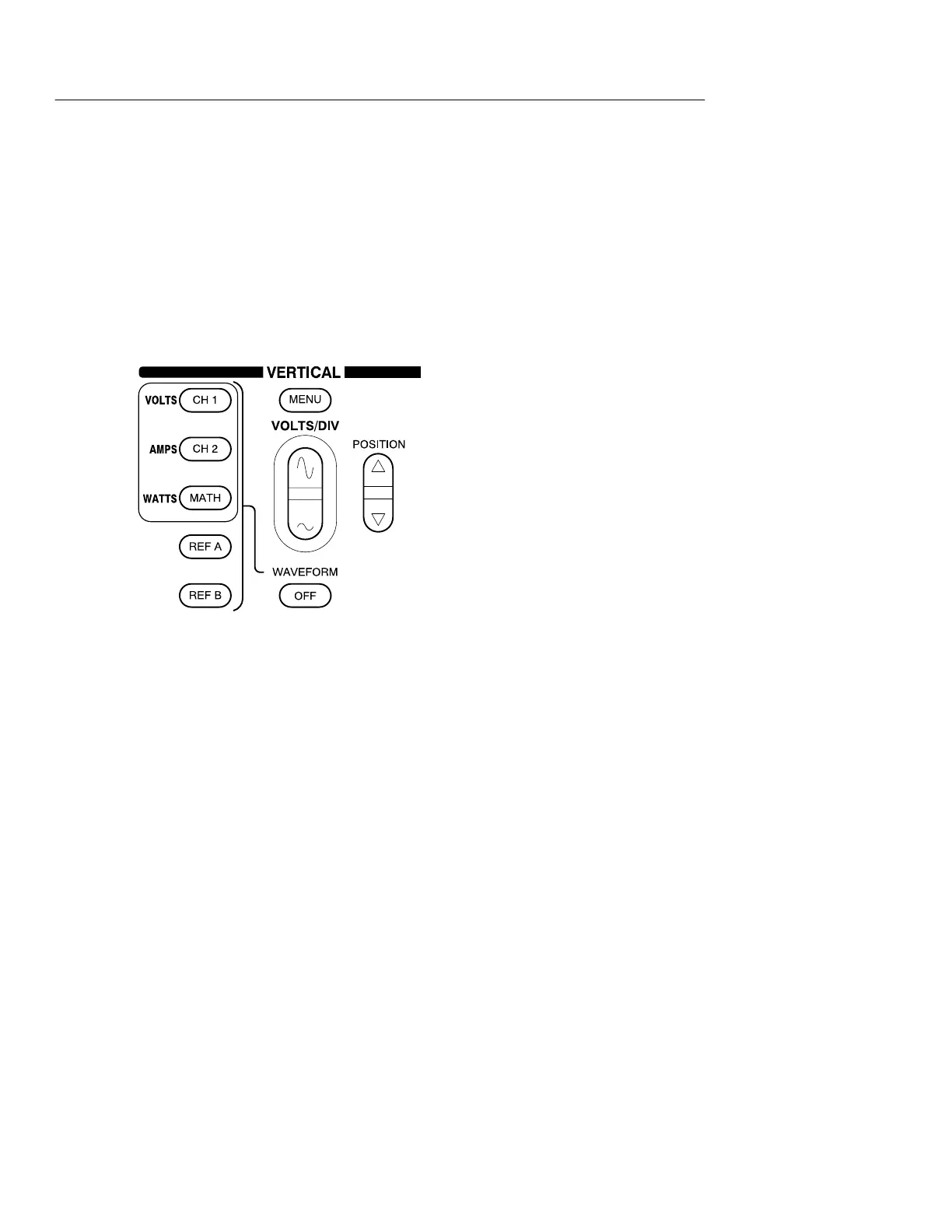

VERTICAL Controls
You can use the vertical controls to display waveforms, adjust
vertical scale and position, and set input parameters. In the THS720P
TekScope instrument, the vertical controls are also used to display
waveform harmonics. Refer to page 3–16 for a description of
harmonics.
Vertical Operations in Scope Mode
All vertical operations affect the selected waveform. Press the CH 1,
CH 2, MATH, REF A, or REF B button to select that waveform.
In harmonics mode (THS720P), the CH 1, CH 2, and MATH buttons
display harmonics of voltage, current, and power waveforms.
To remove a waveform from the display, select the waveform and
then press the WAVEFORM OFF button.
Press the MENU button to display the vertical menu. The contents of
the vertical menu depend on which waveform is selected.
