Power-Measurement Application Examples
THS710A, THS720A, THS730A & THS720P User Manual
2–47

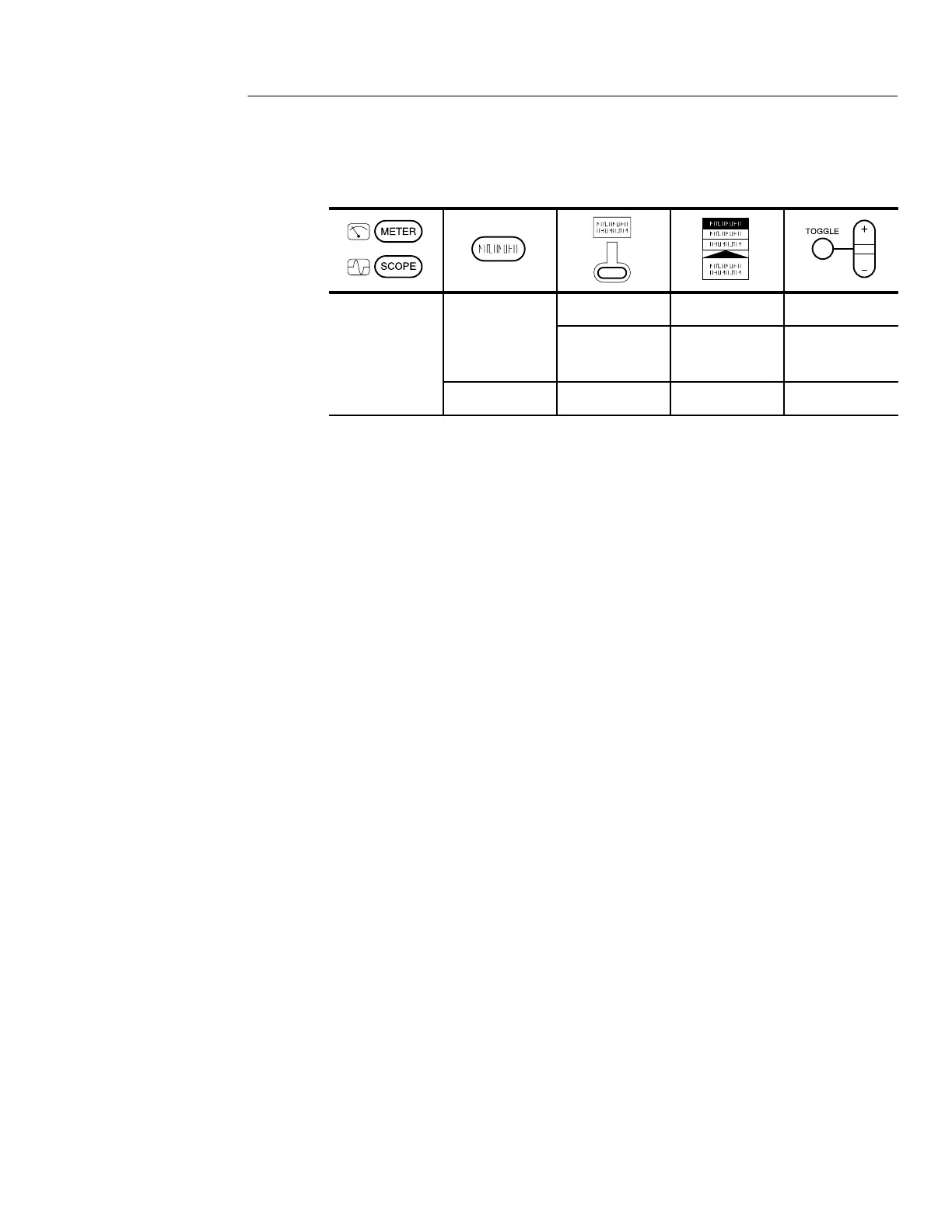

Setup to Monitor Power
S
PE
SPL
Harmonics On —
Probes Current
Probe CH 2
Set to
100 mV/A
MATH — — —
The TekScope instrument continuously measures voltage and
current, and then calculates the power statistics shown in the box.
Use the average, minimum, and maximum statistics to characterize
the load on this branch circuit.
Going Further
The numbers displayed above the box are instantaneous power
measurements. You can use them to measure short-term variations.
The power statistics accumulate from the beginning of an acquisi-
tion. To reset the statistics, press HOLD twice to stop and restart the
acquisition.
