TRIGGER Controls
3–58
THS710A, THS720A, THS730A & THS720P User Manual

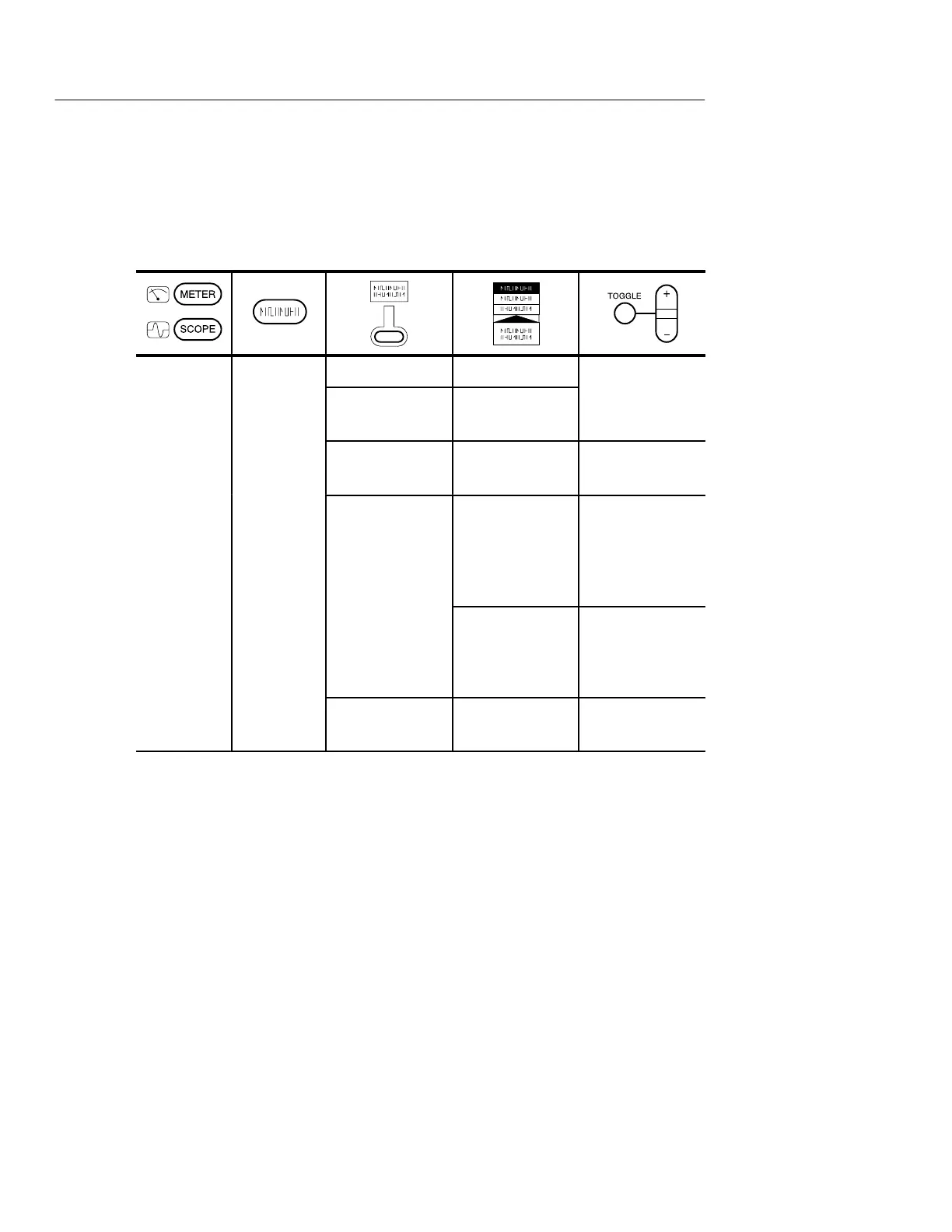

Pulse Trigger
Use Pulse triggering to isolate and display specific events that you
can qualify by time.
S
CO
PE
TRIGG
E
R
NU
Trigger Type Pulse
—
ME
NU
Trigger Source Ch1
Ch2
Polarity &
Width
Positive
Negative
Set width
Tr
igg
er
W
h
e
n
Less Than
Width
Greater Than
Width
—
Equal To Width
Not Equal To
Width
Set ±%
Mode & Holdoff Auto
Normal
—
Key Points
Trigger Conditions. You can trigger on the following conditions:
H Less Than Width triggers on a pulse width that is less than the
time threshold.
H Greater Than Width triggers on a pulse width that is greater than
the time threshold.
