Appendix D: Performance Verification
D–12
THS710A, THS720A, THS730A & THS720P User Manual
Check Sample Rate and Delay Time Accuracy
1. Set up the TekScope instrument using the following steps:
S
CO
PE S
A
VE/
RECALL
Recall Saved
Setup
Recall Factory
Setup
—
OK Recall
Factory
—
VERTICAL
MENU
Probe Type Voltage Probe Set to 1X

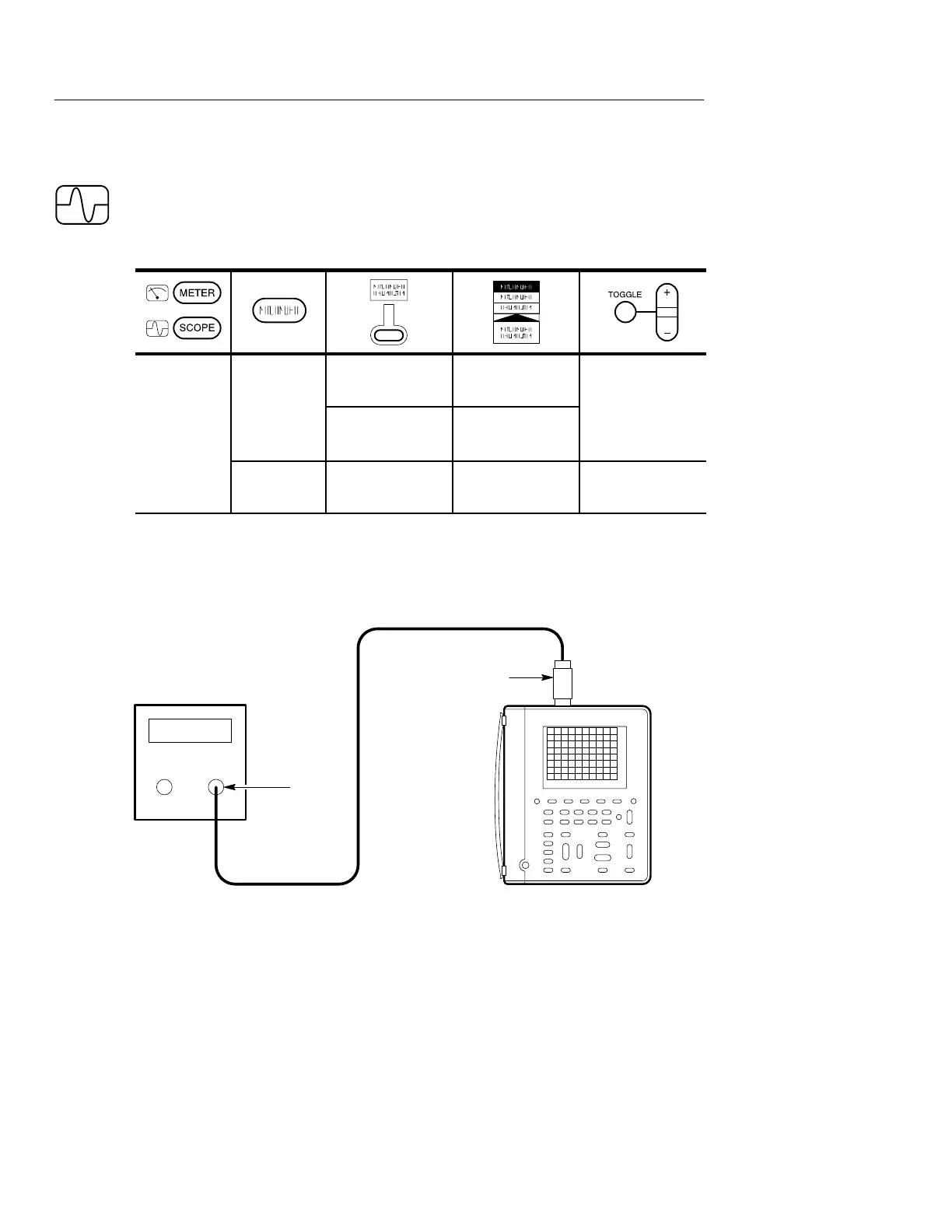

2. Connect the TekScope instrument to the time mark generator as
shown below.
Time mark
generator
Ch 1
Output
50  feedthrough
terminator
BNC cable
3. Set the time mark generator period to 10 ms.
4. Set the TekScope instrument VOLTS/DIV to 500 mV/div.
5. Use the vertical POSITION rocker to center the test signal on
screen.
