Getting Started
1–10
THS710A, THS720A, THS730A & THS720P User Manual
5. Press the AUTORANGE button. Within a few seconds, you
should see a square wave in the display (approximately 1.2 kHz).
If you want, repeat steps 4 and 5 for channel 2 of the oscillo-
scope.
6. Press the METER button.
7. Press the VDC bezel button
8. Press the AUTORANGE button.

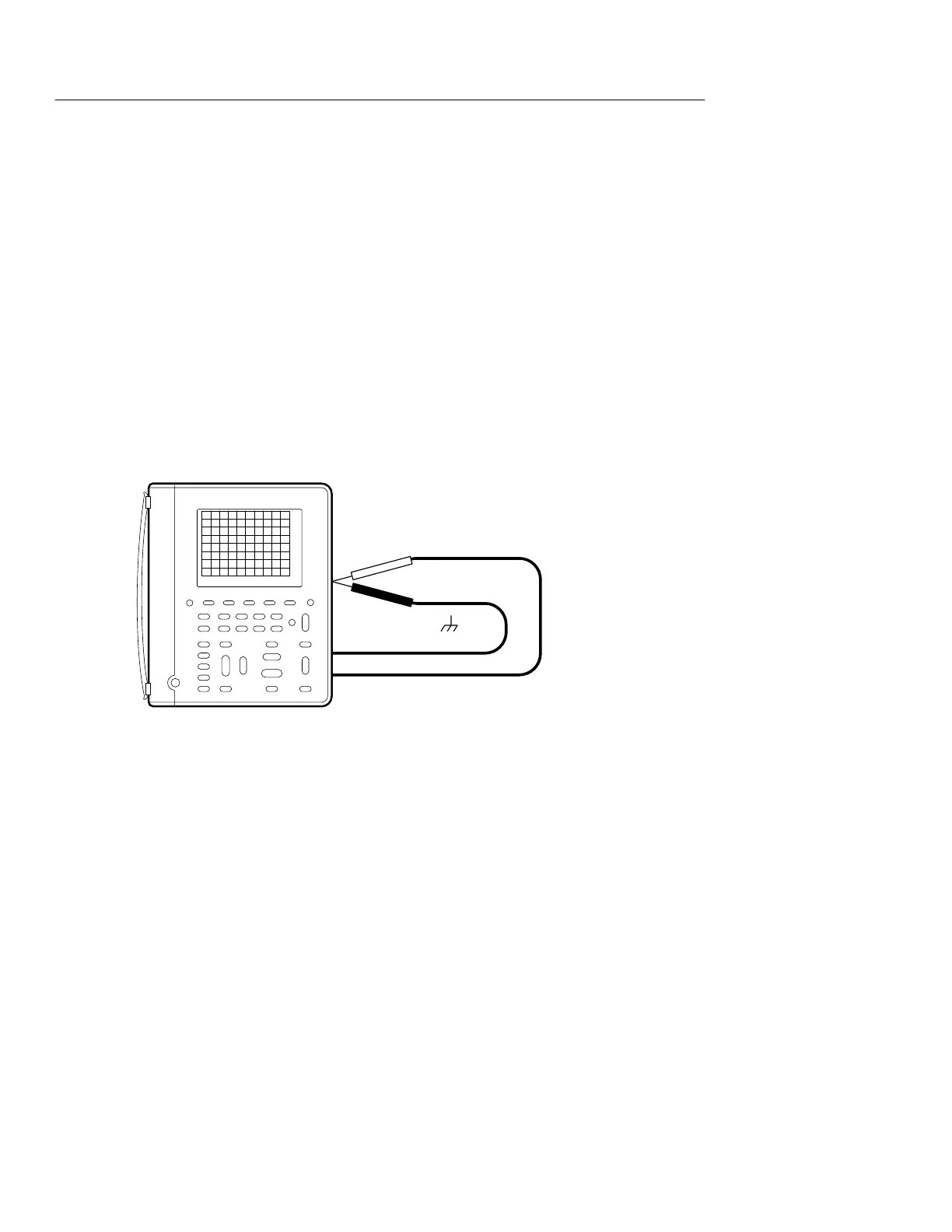

9. Connect meter leads to the TekScope instrument and touch the
meter lead tips to the PROBE COMP output as shown below.
DMM lead to PROBE COMP
COM lead to
10. Verify that the TekScope instrument measures an average DC
voltage of 2.5 ± 0.25 V.
