Tektronix TG8000 User Manual

AVG7 Analog Video Generator module
MOVING PICTURE
. Scrolls the active picture area of the output test signal. Select
this menu item, and then press the ENTER button to access the MOVING
PICTURE submenu. (See page 3-37.)
OVERLAY. Selects an item (logo, text, or circle) to overlay on the output test
signal and sets the blinking mode for the overlay. Select this menu item, and then
press the ENTER button to access the OVERLAY submenu. (See page 3-38.)
TIMING. Sets the timing offset of the output s
ignals relative to the internal
reference signal (frame reset signal). Select this menu item, and then press the
ENTER button to access the TIMING submenu. (See page 3-43.)
VIDEO. Sets the output channel configuration when a composite signal is being
output and enables or disables the signal output from CH 1, CH 2, and CH 3.
Select this menu item, and then press the ENTER button to access the VIDEO
submenu. (See page 3-44.)
APL. Sets the APL and Bounce features available for the signal output. When
you select this menu item and then press the ENTER button, you will access
the APL submenu. (See page 3-46.)
AVG7 module
MOVING PICTURE
submenu
Use this menu to scroll the active picture area of the output signal up/down,
left/right, or randomly. Use the up (▲)ordown(▼) arrow button to scroll
through the menu. The following figure shows the MOVING PICTURE submenu.

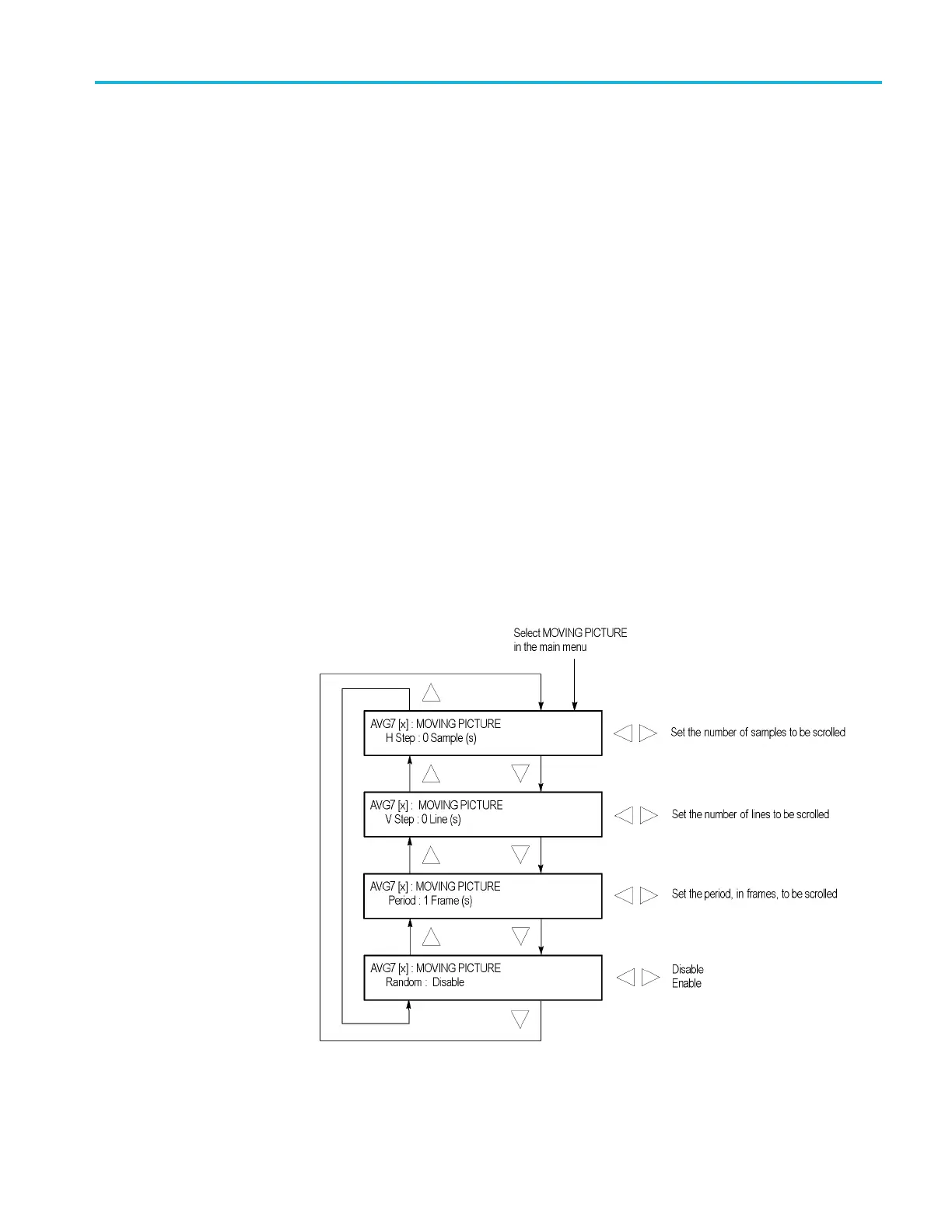

Figure 3-18: AVG7 module MOVING PICTURE submenu
TG8000 Multiformat Test Signal Generator User Manual 3–37
