Page | 108
Pin assignment,
AMP Micro Match 6pos,
card reader
Pin 1
VCC
Pin 2
CLK IN
Pin 3
DATA IN
Pin 4
DATA OUT CR
Pin 5
SW CR
Pin 6
GND

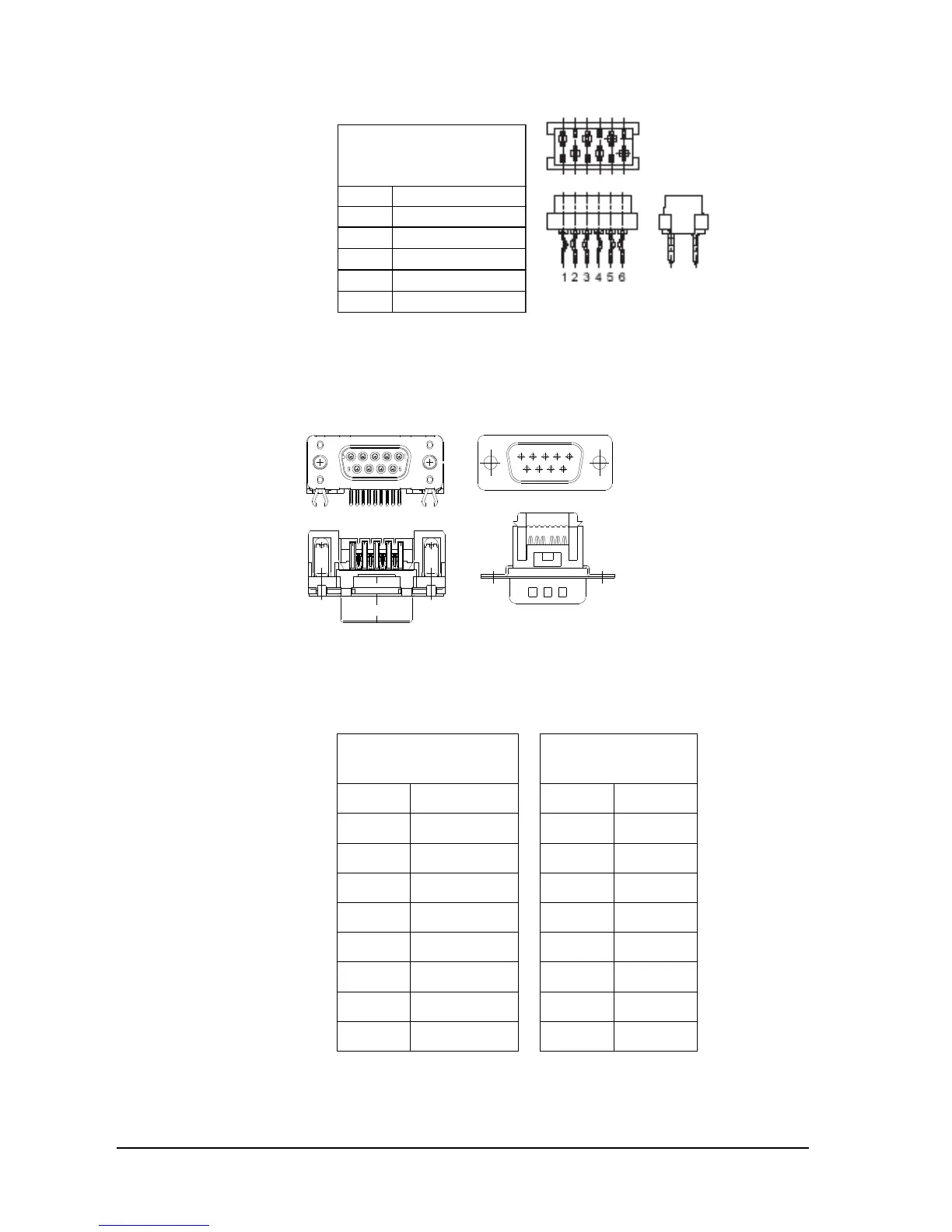

Fig.: AMP micro match 6pos connector, female
SUBD 9 connector
This connector is used for operation with an operator desk or
camera control system.
Fig.: DB-9 connector, female
Fig.: DB-9 connector, male
Pin assignment,
CPU5500
Pin 1
N/C
Pin 2
RX
Pin 3
TX
Pin 4
N/C
Pin 5
GND
Pin 6
N/C
Pin 7
N/C
Pin 8
N/C
Pin 9
N/C
Pin assignment,
PC
Pin 1
N/C
Pin 2
RX
Pin 3
TX
Pin 4
DTR
Pin 5
GND
Pin 6
DSR
Pin 7
RTS
Pin 8
CTS
Pin 9
N/C
