Aligna
®
4D User Manual
76 / 84
13 Technical Data
(Data may change related to new developments)
13.1 Environmental conditions:
The Aligna
®
system has been designed for operation in laboratory environment with a tem-
perature range between +15 °C and + 45 °C. The system is not to be operated in a hazardous
environment. Avoid exposure to heat, or to emissions of other electric equipment. Protect the
system against humidity, dust, aggressive fluids, or vapors.

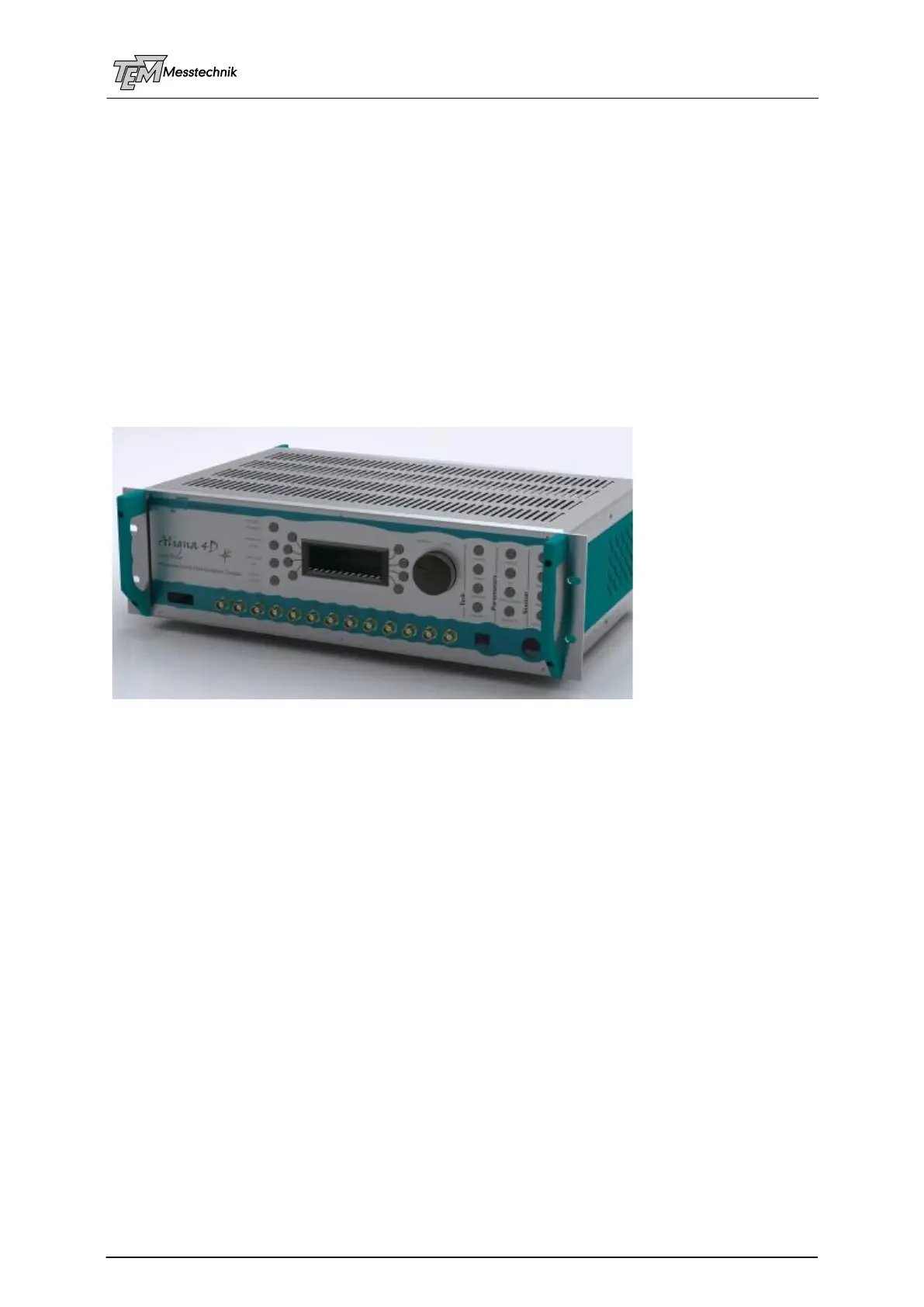

13.2 Aligna
®
4D Module Rack Case Properties
Dimensions (excl. handles and pedestal): 450 x 280 x 133 mm
(incl. handles, fixing angles and pedestal): 484 x 333 x 144 mm
Regulation bandwidth: selectable by filters and software, 0.1 Hz...20 kHz
Number of Calculation Modules "BLM": 1 … 4 (for use of up to 8 PSD2Ds or 4 PSD4D
Number of piezo amplifier modules: 1 or 2 (8 or 12 HV ch per each 24 HV ch max)
Number of motor driver modules: 1 or 2 (4 motors per each 8 motors, 4 MMMs)
Output voltage of piezo amps: standard 0…150 Volt, active limitation
(max.: -10 …270)
0…500 Volts or 0…95 V on request
Line voltage: 200…240 VAC 50…60 Hz
100…120 VAC 50…60 Hz
automatically switching between Line Voltages
Power consumption: < 95 Watts (typ. 70 W)
Interfaces: USB (front), RS232 (rear)
USB (fast, rear, optional), Ethernet (optional)
