Aligna
®
4D User Manual
78 / 84
Angular beam displacement: X-direction: 4.8 mrad (>4.8 mm at a dist. of 1 m)
Y-direction: 4.8 mrad (>4.8 mm at a dist. of 1 m)
Mirror size: 1 inch diameter (24.0 … 25.8 mm)
thickness: 2 … 10 mm
other mirrors: on demand
Free aperture (max beam diameter): 15 mm (1" mirror at 45°)
or 22 mm (elliptical mirror)
or 11 mm (1/2 inch mirr.)
Fixing of the mirror: 3 or 4 screws M 2.5 mm
or M2
alternatively glued
First main resonance: 1.3 kHz,
including mirror 1 inch diameter, 6 mm thickness
(other actuators with different displacements
and other speed on request)

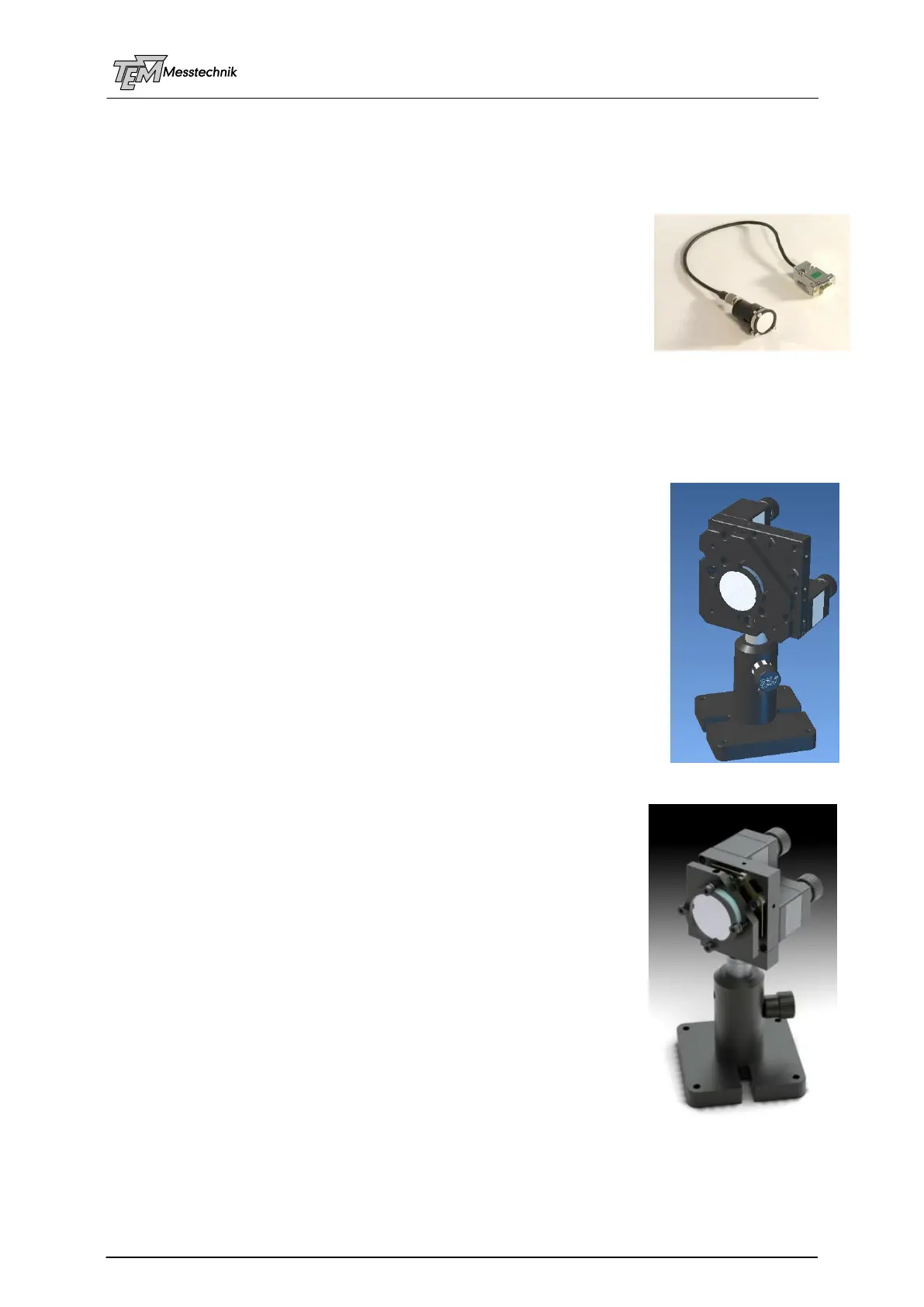

13.6 Aligna 60 Motorized Mirror Mount
Dimensions (excl. post, carrier,…): 60 x 60 x 63 mm
Angular beam displacement: X-direction: 5 deg
Y-direction: 5 deg
Mirror size: 1 inch diameter (std)
thickness: 2 … 10 mm
2 inch (with adapter)
thickness 6…15 mm
Reference switches: optical X and Y
13.7 Aligna 40 Motorized Mirror Mount
Dimensions (excl. post, carrier,…): 40 x 40 x 63 mm
Angular beam displacement: X-direction: 8 deg
Y-direction: 8 deg
Mirror size: 1 inch diameter (std)
thickness: 2 … 10 mm
Reference switches: optical X and Y
