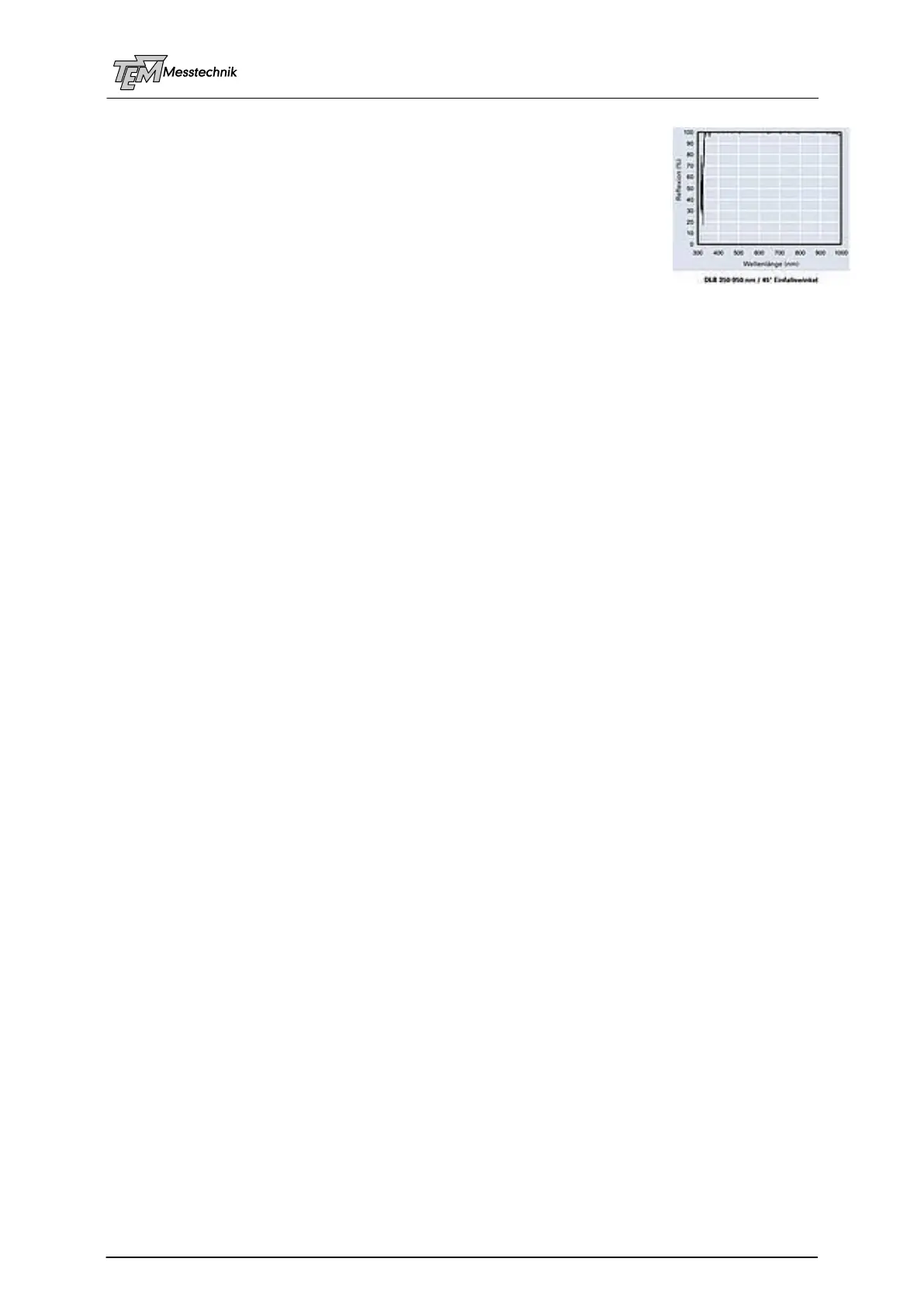

13.8 Used Mirrors
The user may use any own mirrors. For standard applications we rec-
ommend (and deliver) mirrors with QI/LINOS dielectric super broad
band coating DLB 350-950
Wavelength range: 350 … 950 nm > 99%
at 45° AOI
400 … 950 nm > 99 %
at 0°…45° AOI
Dimensions (for different applications): round, D=10 mm, T=2mm
rectangular 20 x 15 mm, T=2.5 mm
ellipse 22 x 32 mm, T=5 mm
(Other mirrors, coatings and mirror sizes on request)
