HYDRAULICS
8E-21
6. Install the seals and backup ring in the flange end
as shown in Figure 8E-5.

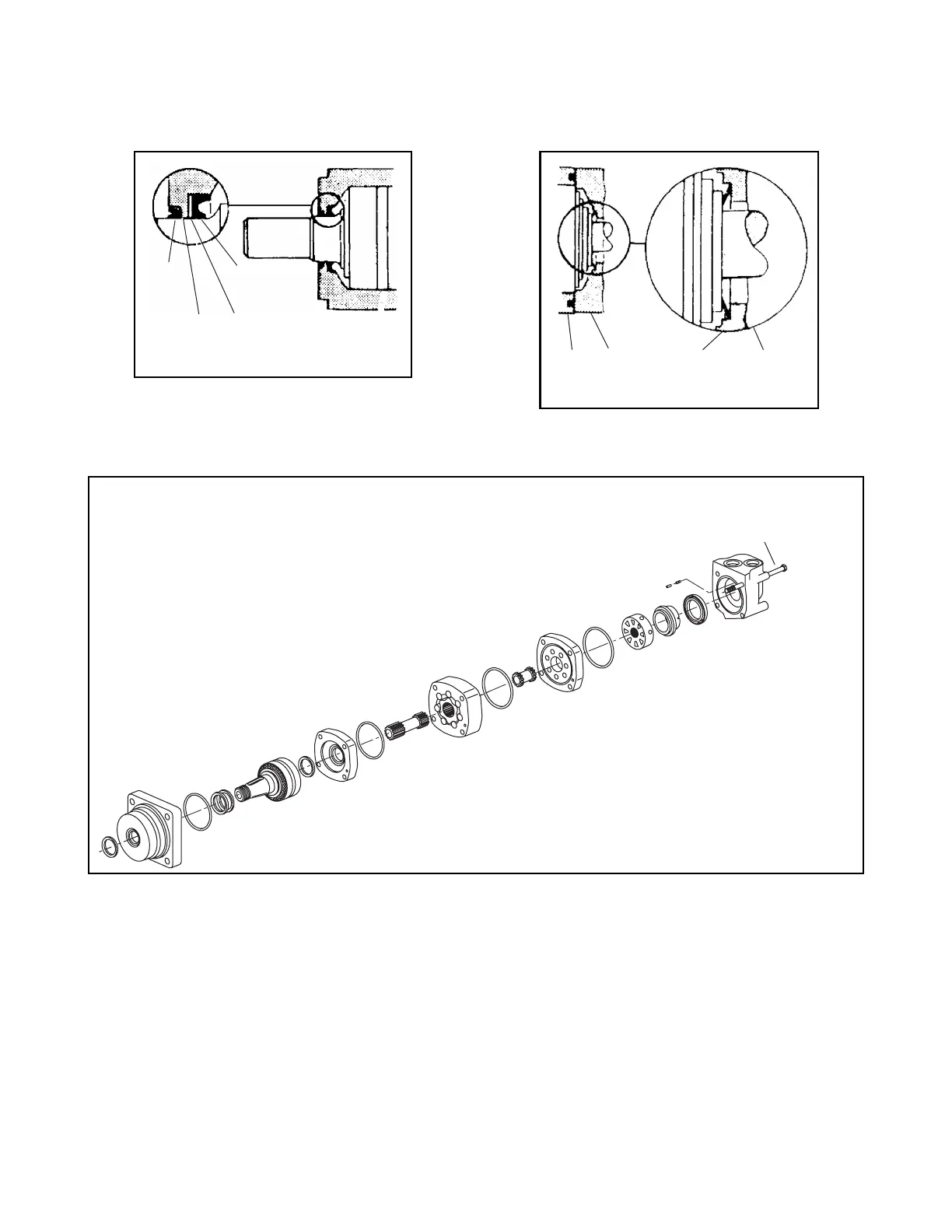

Figure 8E-5. Seals and Backup Ring
7. Press the bearing and shaft assembly into the
flange end of the motor.
8. Install the shaft face seal as shown in Figure 8E-6.
Place the wear plate on the flange end.
Figure 8E-6. Installation of Face Seal
9. Continue to assemble as shown in Figure 8E-7.
Figure 8E-7. O-Rings and Seals
Dust
Seal
Shaft
Seal
Mounting
Flange
Backup
Ring
Shaft &
Bearing
Assembly
Seal
Wear
Plate
Shaft
Face
Seal
Shaft
Face
Springs
& Pins
Port Manifold
Cover
Tighten Capscrews
to 36 to 37 ft. lbs.
(49 to 50 Nm).
To Next Page
