ATTACHMENTS
12D-9
2. Set cutting height gauge to the desired height by
measuring between the underside of the screw
head and the gauge bar surface and tighten the
wing nut (Figure 12D-6).
Figure 12D-6. Cutting Height Adjustment
3. Place the gauge bar across the bottom of the front
and rear rollers near one end.

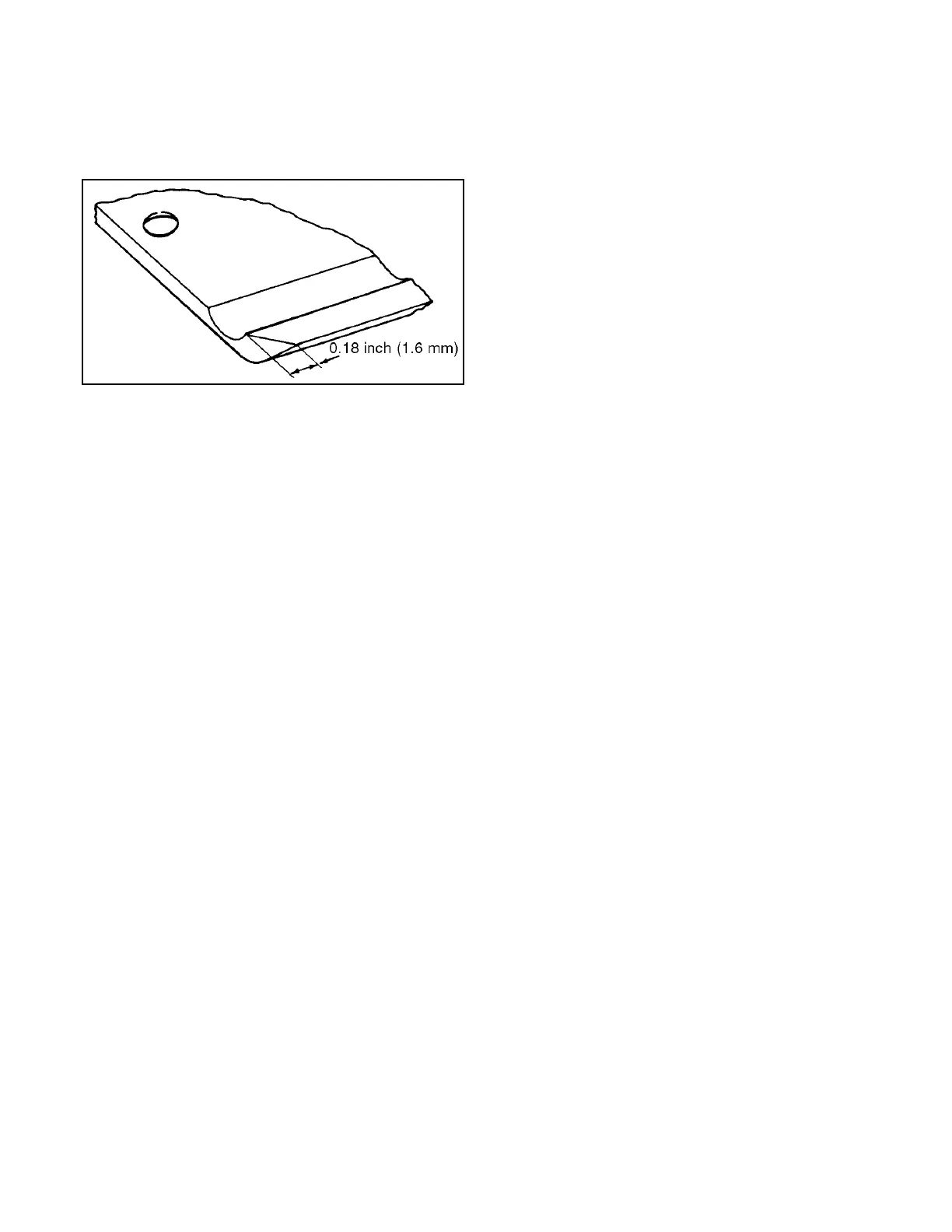

4. Slide the head of the gauge screw over the bed-
knife.
5. Adjust the hand adjusting knob of the front roller to
close the gap between the roller and gauge bar,
then tighten the locknut.
6. Repeat for the opposite end.
7. After tightening the locknuts, recheck each end
with the gauge for the proper adjustment.
