ENGINE
3D-11
7. Remove the dust screen. Using low-pressure
compressed air blow dust and debris from the
radiator core (Figure 3D-6).

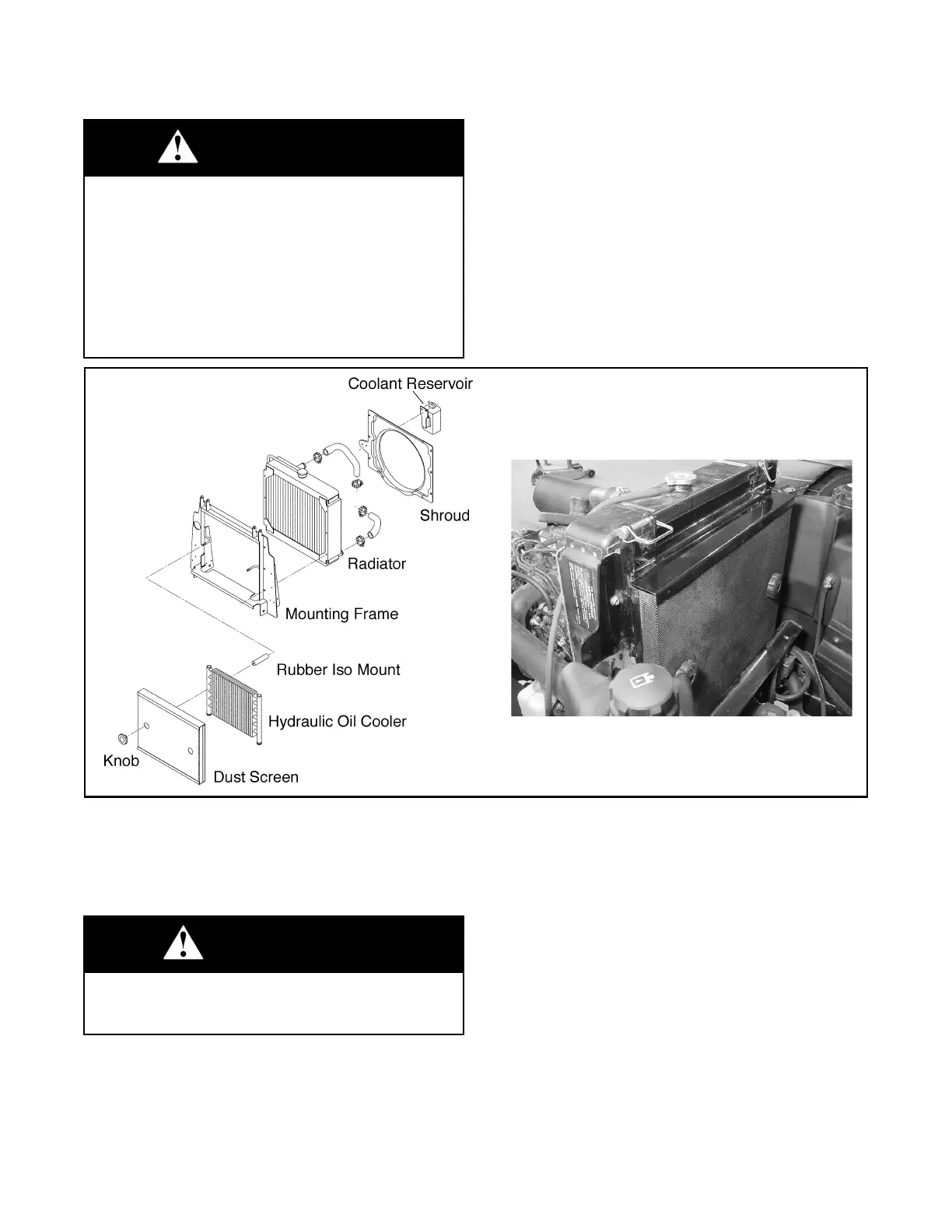

Figure 3D-6. Radiator, Hydraulic Oil Cooler, and Dust Screen
Removal
1. Shut down the engine and remove the ignition
key.
2. Allow the coolant to cool completely and remove
the radiator cap.
3. Remove the dust screen knobs and dust screen.
4. Disconnect the coolant reservoir hose at the radia-
tor overflow outlet.
5. Place a suitable container underneath the radiator
petcock drain. Drain the coolant system.
6. Disconnect and remove the upper and lower radi-
ator hoses.
7. Remove three bolts on each side of the shroud.
Remove the shroud and coolant reservoir.
8. While supporting the radiator, remove three
mounting bolts on each side of the radiator.
9. Carefully remove the radiator from the mount.
WARNING
Always wear eye protection when using compressed
air. Never use compressed air in excess of 20 psi
(138 kPa) for cleaning purposes. Never point the air
nozzle at another individual; serious personal injury
can occur from contact with compressed air.
Do not use screwdrivers or sharp tools to clean the
radiator core. Sharp edges can damage the core
and cause coolant leaks. Use commercially avail-
able fins tools for repair of bent fins.
CAUTION
Allow the engine coolant to completely cool before
removing the radiator cap. Hot coolant sprayed from
the cap can cause serious personal injury.
