DRIVE TRAIN
4C-6
Assembly
NOTE:
During assembly make sure all parts, especially
the caps, are clean inside and outside.
1. Ensure the roller bearings are well lubricated
inside the bearing cap.
2. Place the bearing cross inside the yoke and a
bearing cap on each ear opposite the cross. Tap
the bearing cap inside the ear slightly.
3. Position the yoke, bearing caps, and cross in a
vise as shown in Figure 4C-3.

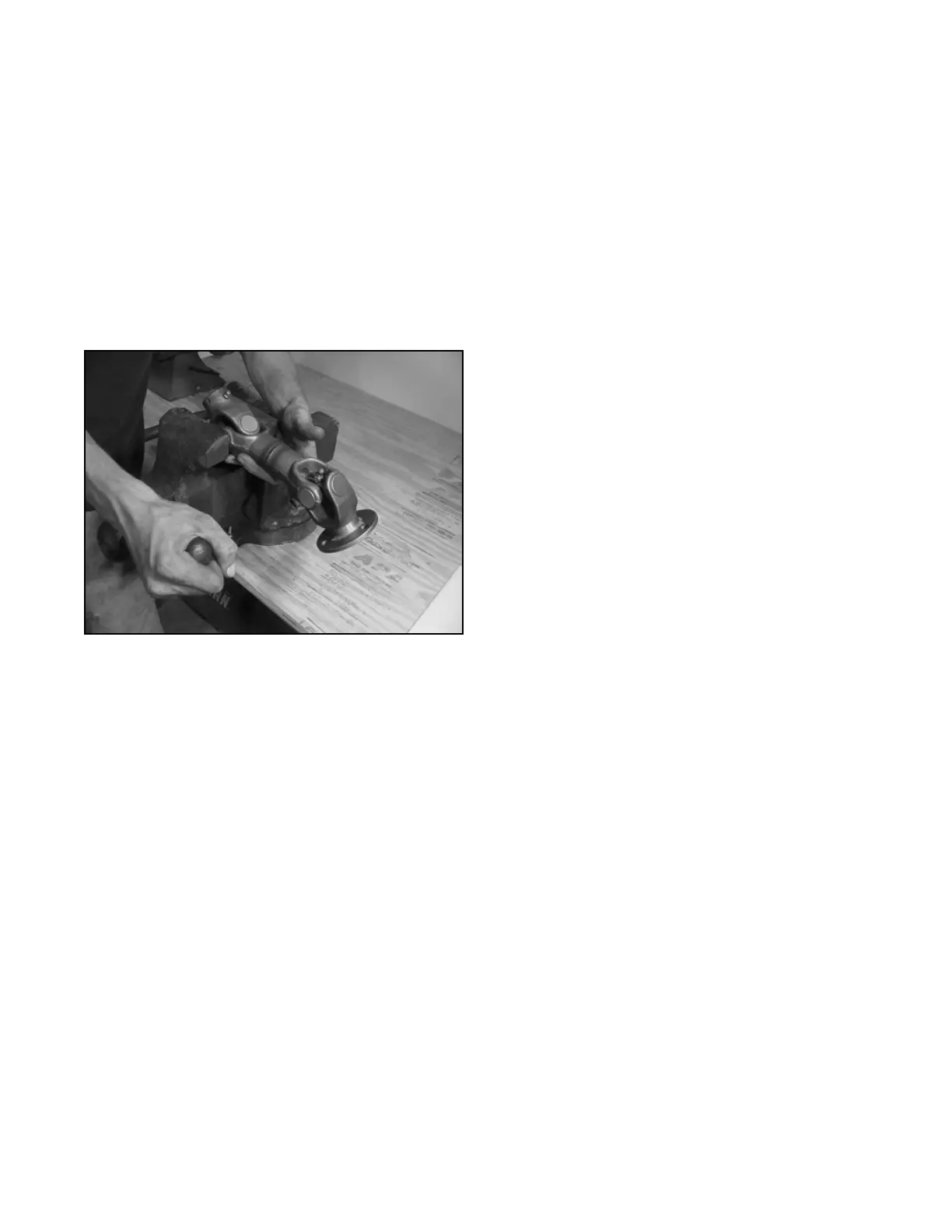

Figure 4C-3. Drive Shaft Assembly
4. Slowly and carefully tighten the vise. The bearing
caps will be pressed into the ears. The bearing
caps should be pressed evenly until the bearing
cap rubber seal completely covers the cross shaft.
5. Remove the yoke from the vise and check for free
movement of the bearing in the yoke.
NOTE:
If the bearing seems tight in the bearing caps,
place the joint on a vise as described in Step 1 of
Disassembly. Using a soft face hammer loosen
the bearing caps slightly as described in Step 2 of
Disassembly.
Installation
1. Slide the front yoke over the drive pump shaft.
2. Place the rear yoke over the engine drive plate
and install four socket head screws.
NOTE:
The engine drive plate mounting screws can be
installed evenly with the end yoke approximately
1 inch (25.4 mm) from the engine drive plate.
