Thomas 85 - Page 145

5-5
PIN WIRE COLOR FUNCTION
1 Tan Starter relay
2 Red Seat belt
3 Wht / Ppl Spare
4 Brown Sol aux. switch
5 Wht / Brn Horn
6 Yl / Red Spare
7 Blue Warning light
8 Grey / Wht Brake light switch
9 Grey Charge light
10 Org / Blue Fuel gauge
11 Purple Warning light
12 Ppl / Wht Warning light
13 Red / Wht Glow plug
14 White Key to circuit breaker
15 Blk / Wht Key to fuse block
Engine Harness Connector

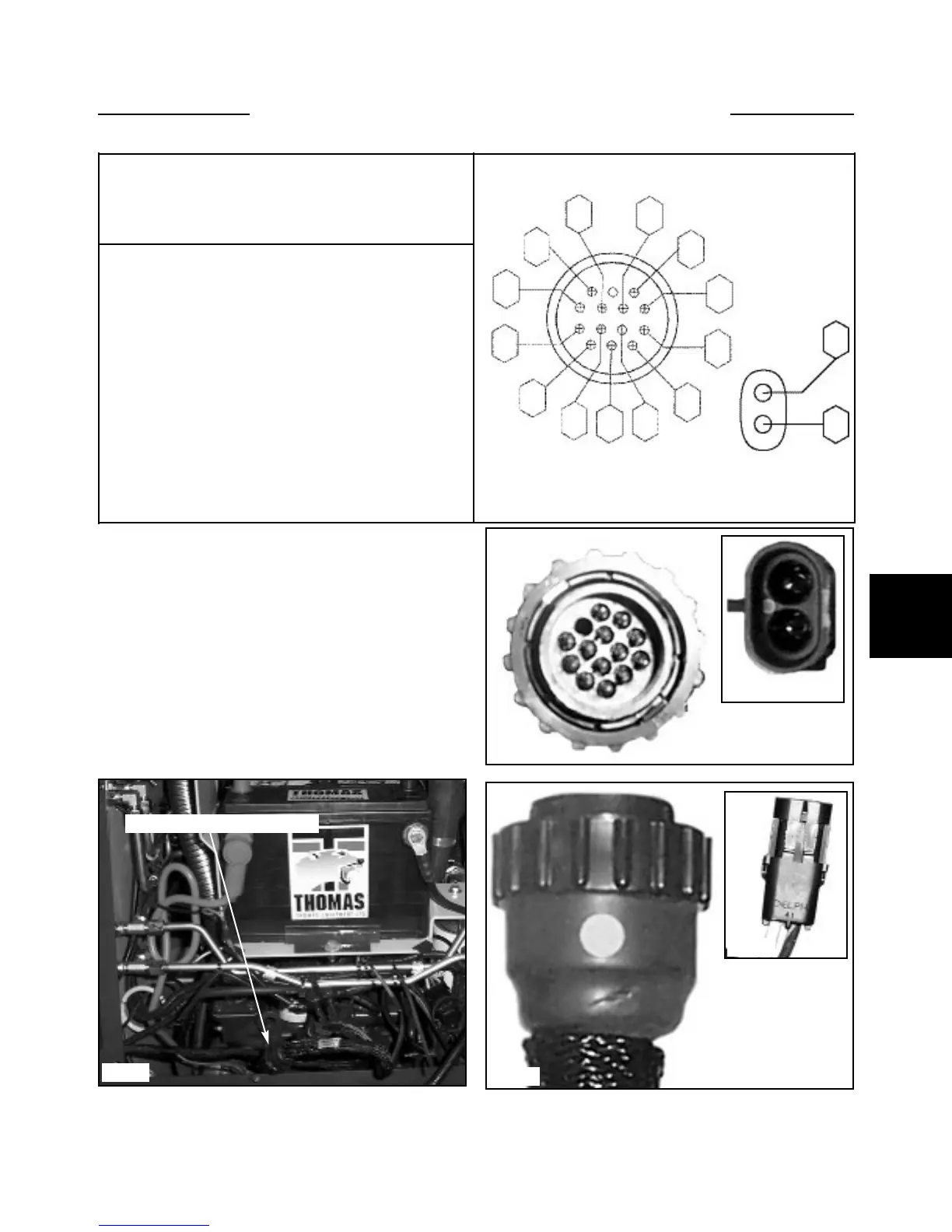

Diagram C1741a Legend. Shown is the wire color and
function of each pin terminal in the connector plug.
The photographs below and at right show the actual
Engine harness plug connection.
To separate the main electrical harness connection, refer
to pg. 5-3.
WIRING SCHEMATIC 5.2
5
C5312
C5273
C5316
C5317
Main harness plug connection
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
C5318
Engine Plug
C5320
