2-37
2
DRIVE MOTOR 2.12
TIMING STEP NO. 1

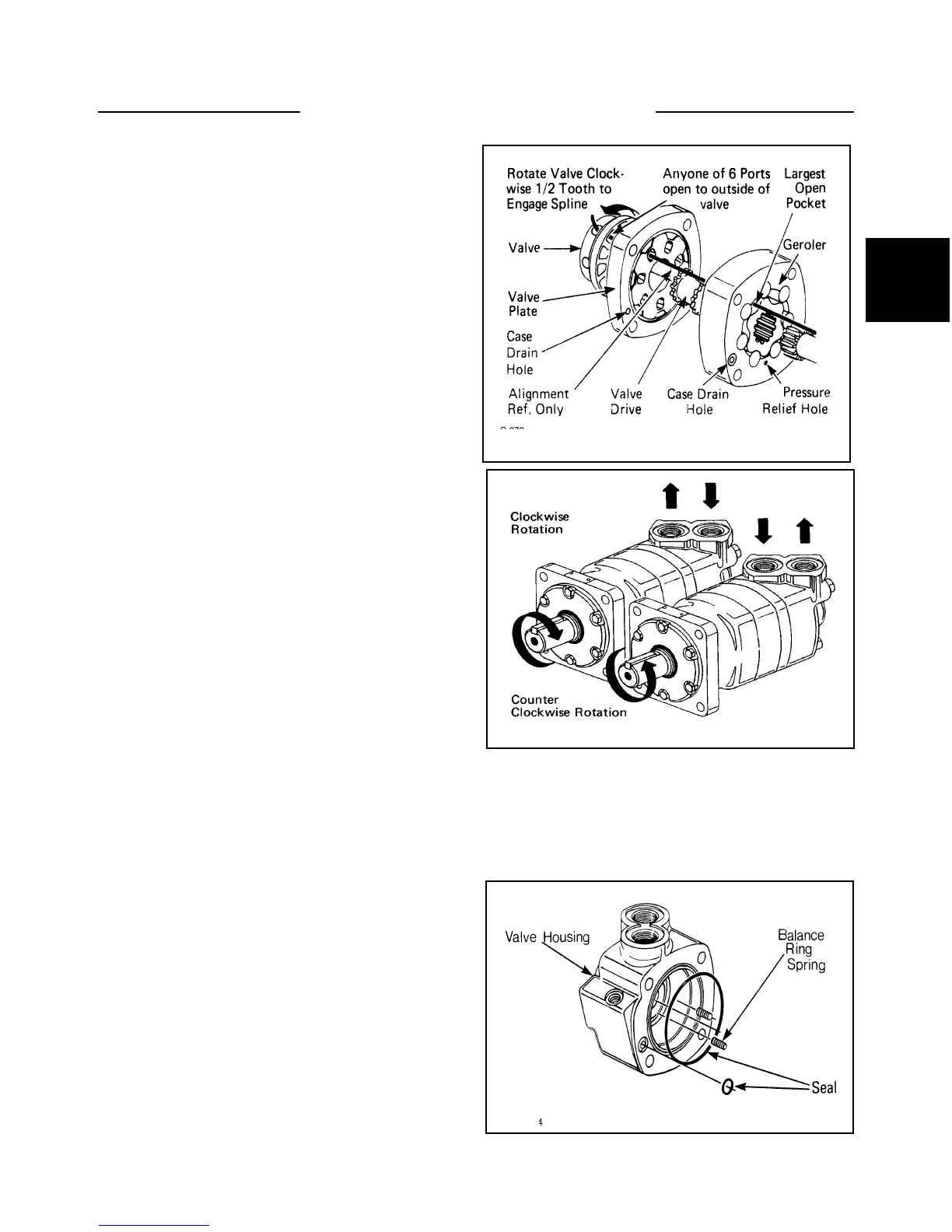

14 Locate the largest open pocket in the geroler(fig.
C272). Mark the location of the pocket on the outside
edge of the geroler.
15 Install the valve drive shaft in the geroler (fig. C272)
16 Apply a light film of light grease on the valve plate
seal. Install the seal in the valve plate.
17 Align the case drain in the valve plate with the
matching hole in the geroler. Install the valve plate, seal
side towards the geroler, on the geroler assembly (fig.
C272).
TIMING STEP NO. 2
18 Locate the slot opening in the valve plate which is in
line with the largest open pocket of the geroler.(fig.
C272)
TIMING STEP NO. 3
19 Install the valve on the valve plate. Locate any one
of the side openings on the valve that goes through to the
face of the vavle (fig. C272).
Line up this side opening with the largest open pocket of
the geroler.
20 Rotate the valve clockwise1/2 spline tooth to engage
the spline teeth of the valve drive shaft.
When correctly timed, the motor will rotate when pressur-
ized as shown (fig. C273)
21 Apply clean grease to the two balancing ring assem-
bly springs. Install the two springs in the holes located
inside the bore of the valve housing (fig. C274).
22 Apply a light film of grease on the case drain seal
and the valve housing seal. Install the seals in the
grooves on the valve hausing (fig. C274).
C272
C273
C274
