Note

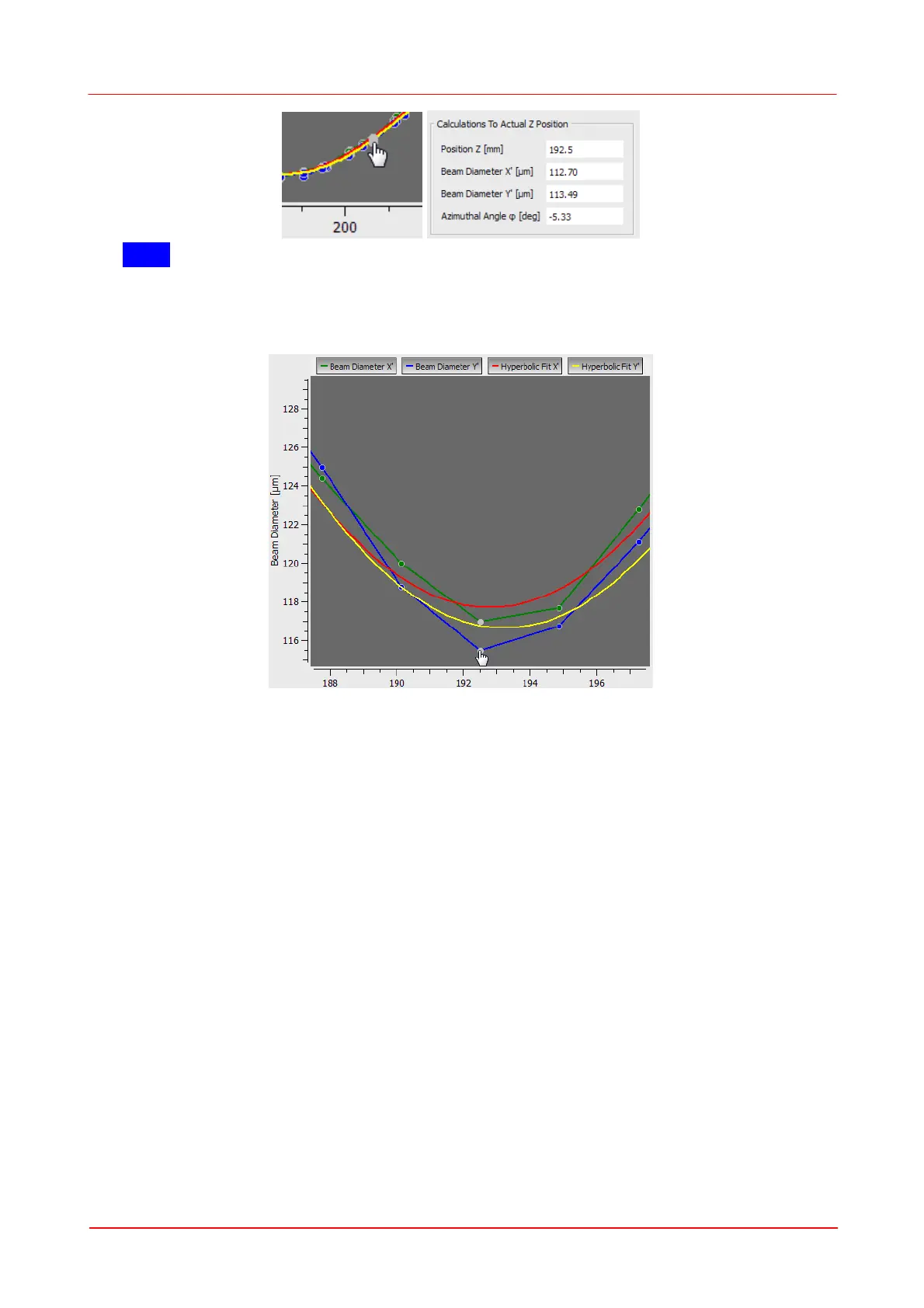

Different from the Results pane, here results are calculated from the measured data
without hyperbolic fit. So it may happen, that in the waist position, at the actual
position are displayed diameter values less that the waist X' (Y') diameters.
In above example, the fitted Y' beam diameter (yellow) is larger than the measured Y'
diameter (blue); same is for X' diameters.
