For correct beam profiling results it is highly recommended to shield ambient light
from entering the Beam Profiler aperture. Using attenuation filters provided within the
filter wheel will attenuate ambient light but will also absorb power of the light source
by the same amount so that the ratio between both remains unchanged. Increasing
the laser power will help to increase the dynamic between wanted and unwanted
light portions.
2.4.3
Connectors

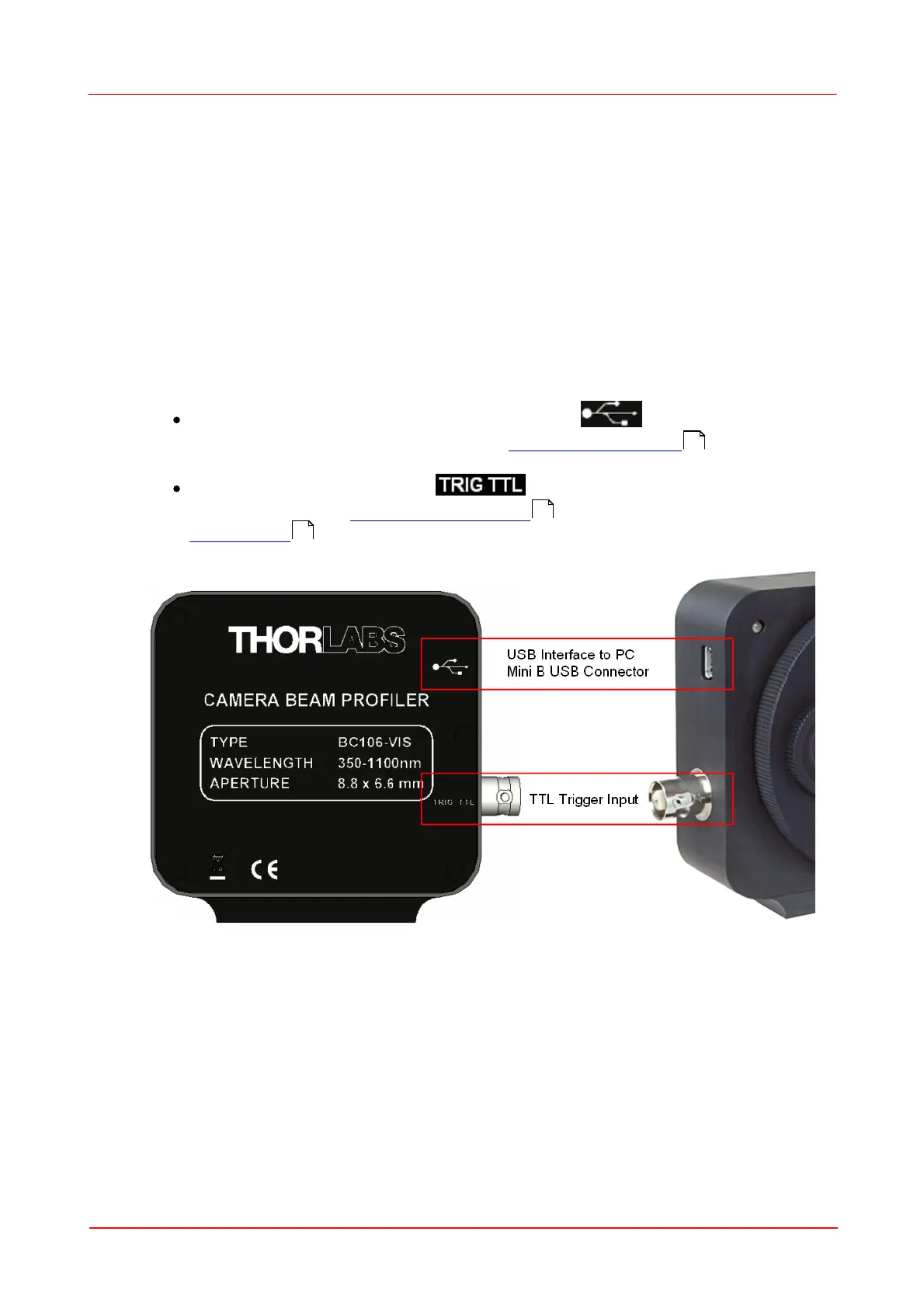

The BC106 Camera Beam Profiler provides two connectors at its left side of the
instrument body.
Mini B USB connector, labeled with USB symbol
For connection to your PC, see chapter Connection to the PC
TTL Trigger input, labeled with
For synchronizing a Pulsed Laser Sources to the Beam Profiler, see
Trigger Input for specifications.
