© 2011 Thorlabs
8 Thorlabs Beam 4.0
2.4
Operating Elements
2.4.1
Mounting and Sensor Position
The Beam Profiler provides at the bottom side a mounting plate with 2 holes and
different thread - M6 (ahead) and UNC8-32 (rear).
Mount the Beam Profiler on your optical board using Thorlabs post, post holder and
base. See Accessories .

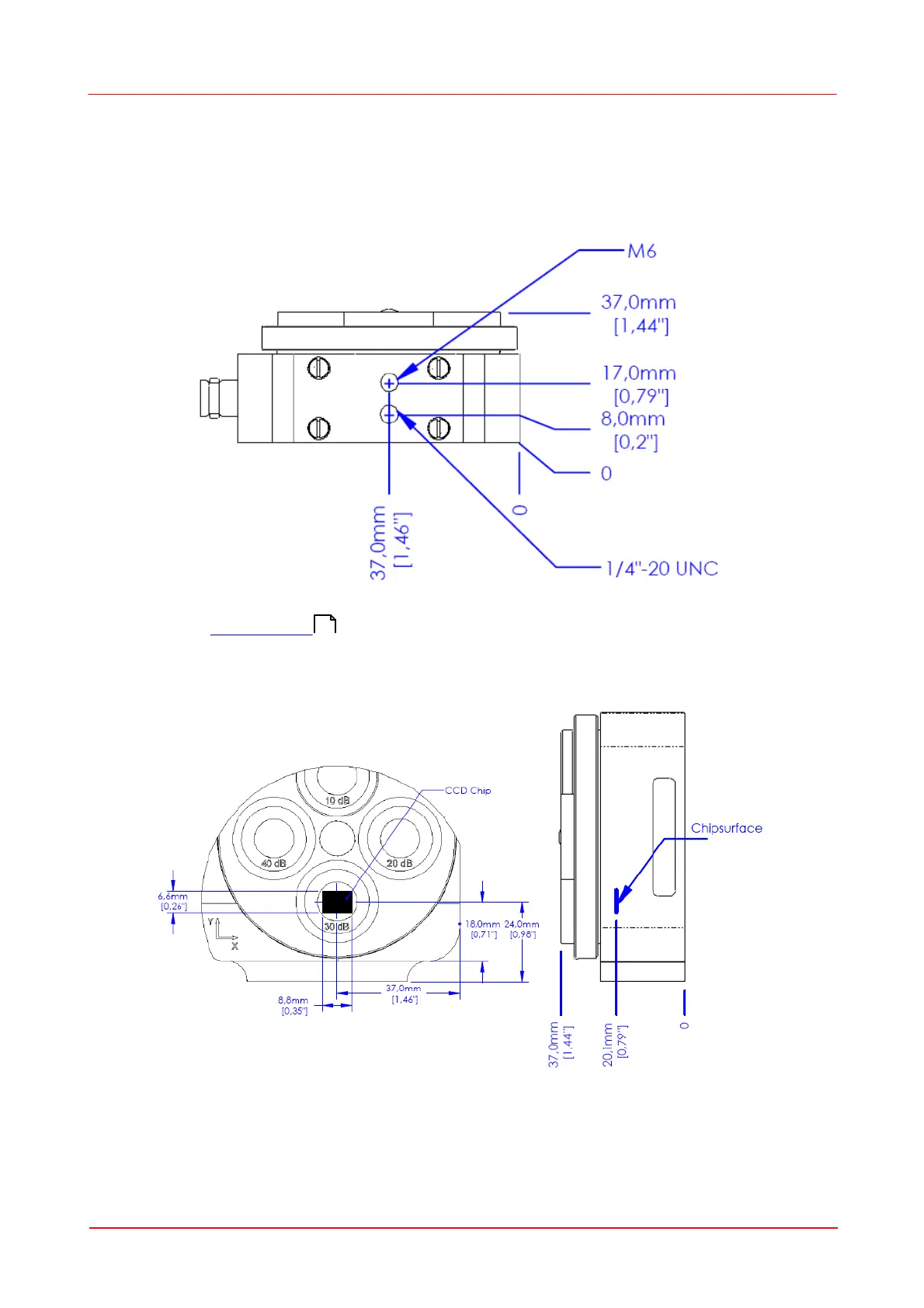

The following drawing shows the sensor position with respect to the Beam Profiler
housing edge:
The sensor is centered with respect to the holes in the mounting base, its depth
measured from the front surface of a filter holder is 16.5 mm [0.65 inches].
154
