79Operating the Beam Profiler
delay is inevitable.
As a result, the camera cannot start exposure before the internal trigger delay time
has expired. An optical pulse that is received during this time span (t
Delay
)cannot be

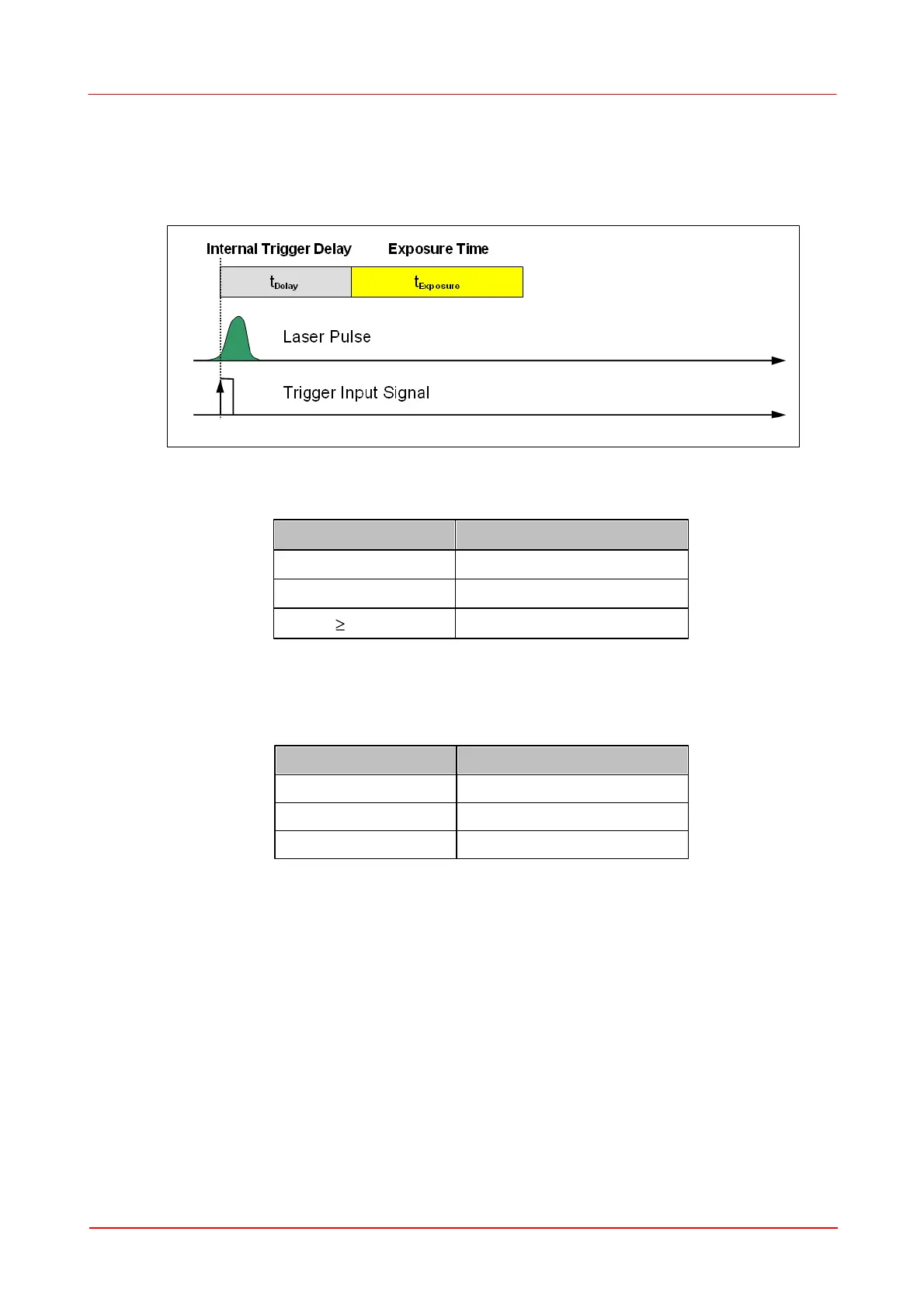

detected. The following figure illustrates this situation:
The internal trigger delay t
Delay
depends on the selected exposure time:
Exposure time
Internal trigger delay
20 µs
96 µs
43 µs
73 µs
74 µs
42 µs
When entering a desired delay to the box Target Delay’, the software displays the
resulting ‘Actual Delayas the closest possible value.
Example for exposure time = 0.020ms (20µs):
Target Delay
Actual Delay
0.000 ms
0.096 ms
0.050 ms
0.096 ms
0.100 ms
0.100 ms
