© 2011 Thorlabs
94 Thorlabs Beam 4.0

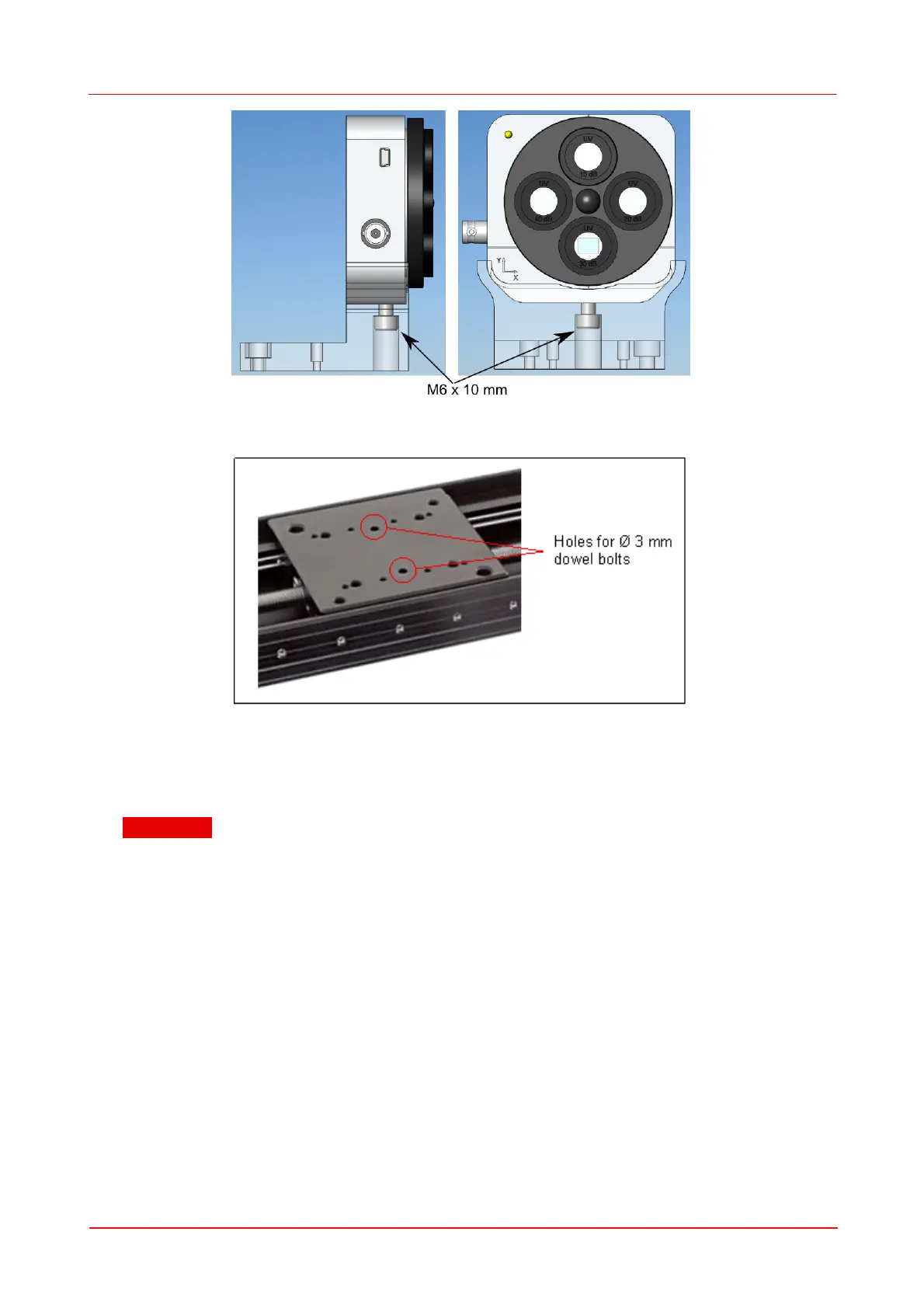

Now insert both dowel bolts into the mounting plate of the translation stage.
Put the adapter plate with the Beam Profiler mounted on it onto the mounting plate of
the translation stage so that the two dowel bolts guarantee a nearly free from play
connection. Fit both plates with 2 screws near the back plate of the Beam Profiler.
Attention
Be sure to mount the Beam Profiler's adapter plate with the designated
cap screws M4x10 and M6x8 only! Longer screws will block or even
damage the translation stage!
Be sure to mount the translation stage with the Beam Profiler on it in a
way that prevents any contact to ambient mechanical parts!
Lasers, lenses, holders or other mechanics may damage the Beam
Profiler and Translation Stage!
The following figure shows the fully assembled BC1M2 Extension Set.
