Tomey UD-8000 User Manual

3-109 ■
[When an eye cup is used]
1) Make preparation for the patient according to the description in “3.3.4
Patient preparation.”
2) When the instrument is in the FREEZE mode, touch the “Scan” button (1)
or step on the FREEZE pedal (2) on the footswitch to release the FREEZE
mode.
3) Sink the probe tip in the eye cup.
[When the probe is placed directly on the eye lid]
4) Lay the patient on the back.
5) Apply the ultrasound diagnosis gel to the tip of the B-mode probe taking
care not to mix air bulbs in the gel.
6) Apply the tip of the probe directly to the lid of the examined eye.
7) Set the total gain (3), dynamic range (4), near gain (5), and the far gain (6)
to obtain the best results.
8) To capture the image, touch the “FREEZE” button (1) or step on the
footswitch FREEZE pedal (2) to enter FREEZE mode.

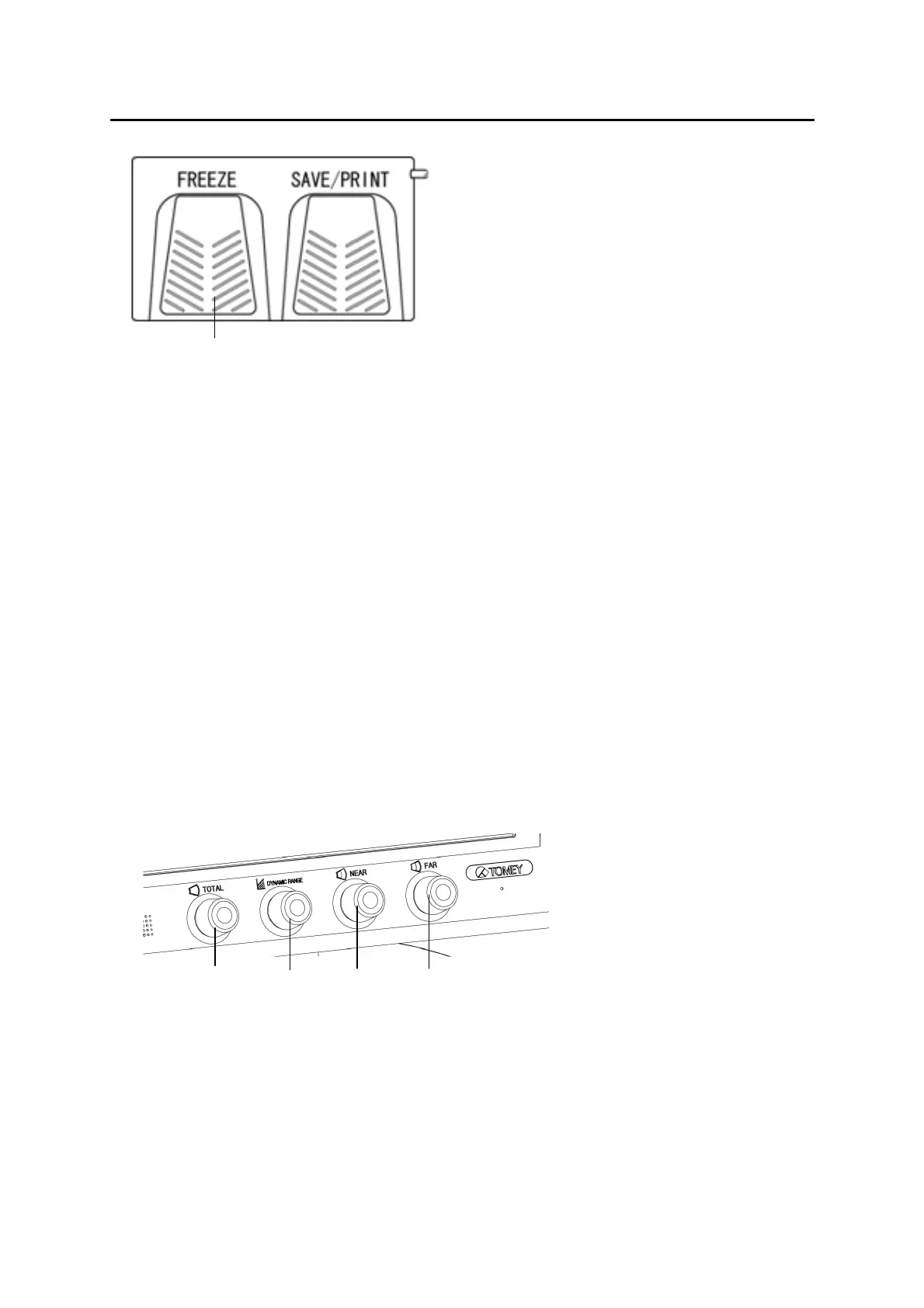

(2)
(Fig. 2)
3-45
(3) (4) (5) (6)
(Fig. 3)
3-43
