3.6.6 Caliper function
■ Values measured and displayed using the caliper
function are rough estimates and may differ from the
actual measurement result.
This function is used to measure the distance at an arbitrary section of the
measurement waveform. The distance from the corneal measurement line
(Fixed) that displays the position of the corneal waveform to the caliper line
is measured.
1) Use the “selection cursor movement” buttons (1) to move the selection
cursor (2) to the data which is to be measured.

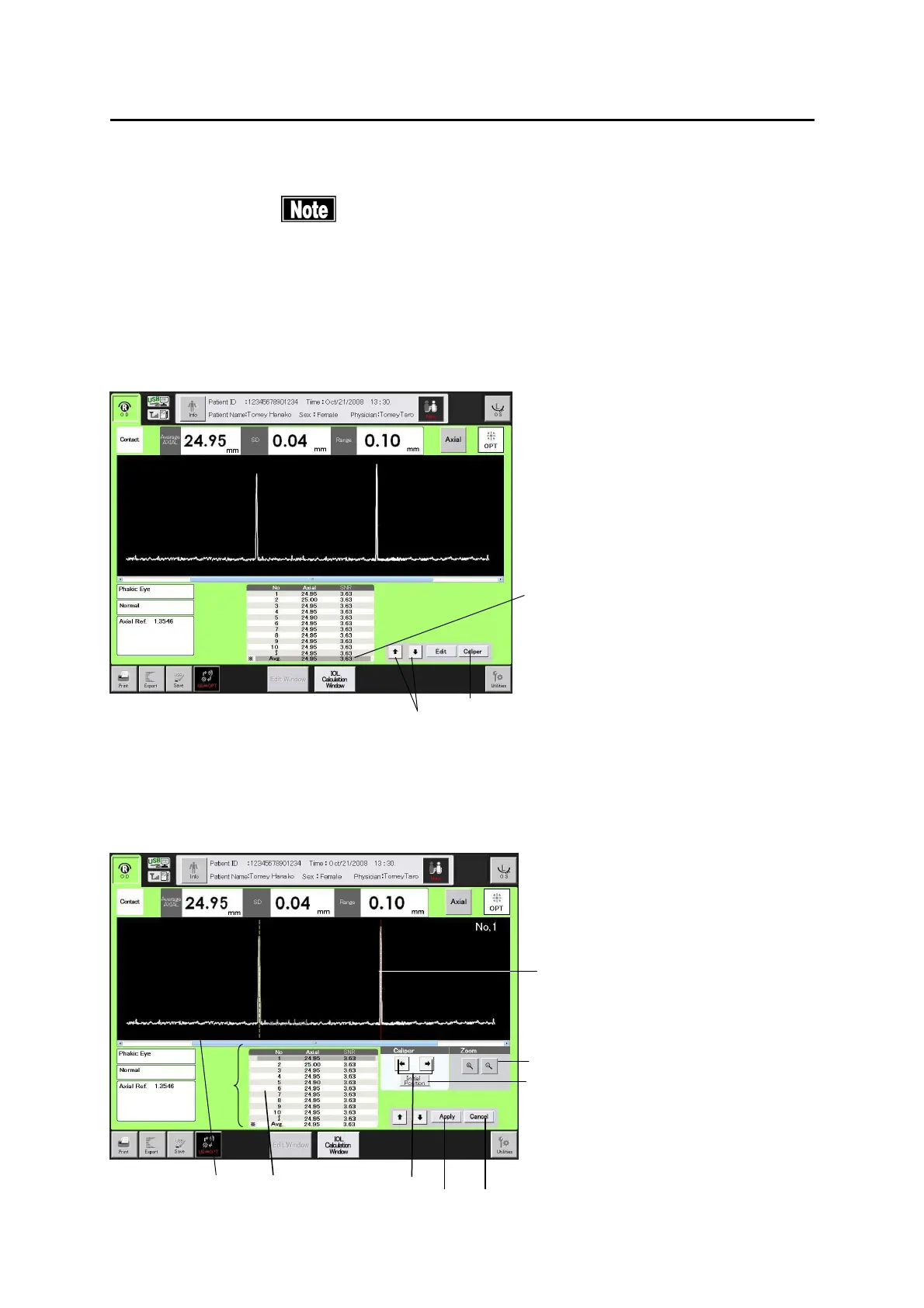

2) Touch the “Caliper” button (3) to open the caliper screen (Fig. 2).
3-95
(Fig. 1)
(3)
(1)
(2)
3-98
(Fig. 2)
(6)
(4)
(5)
(10)
(3)
(12) (8)
(13)
(11)
