2-1
■
2. NAMES AND FUNCTIONS

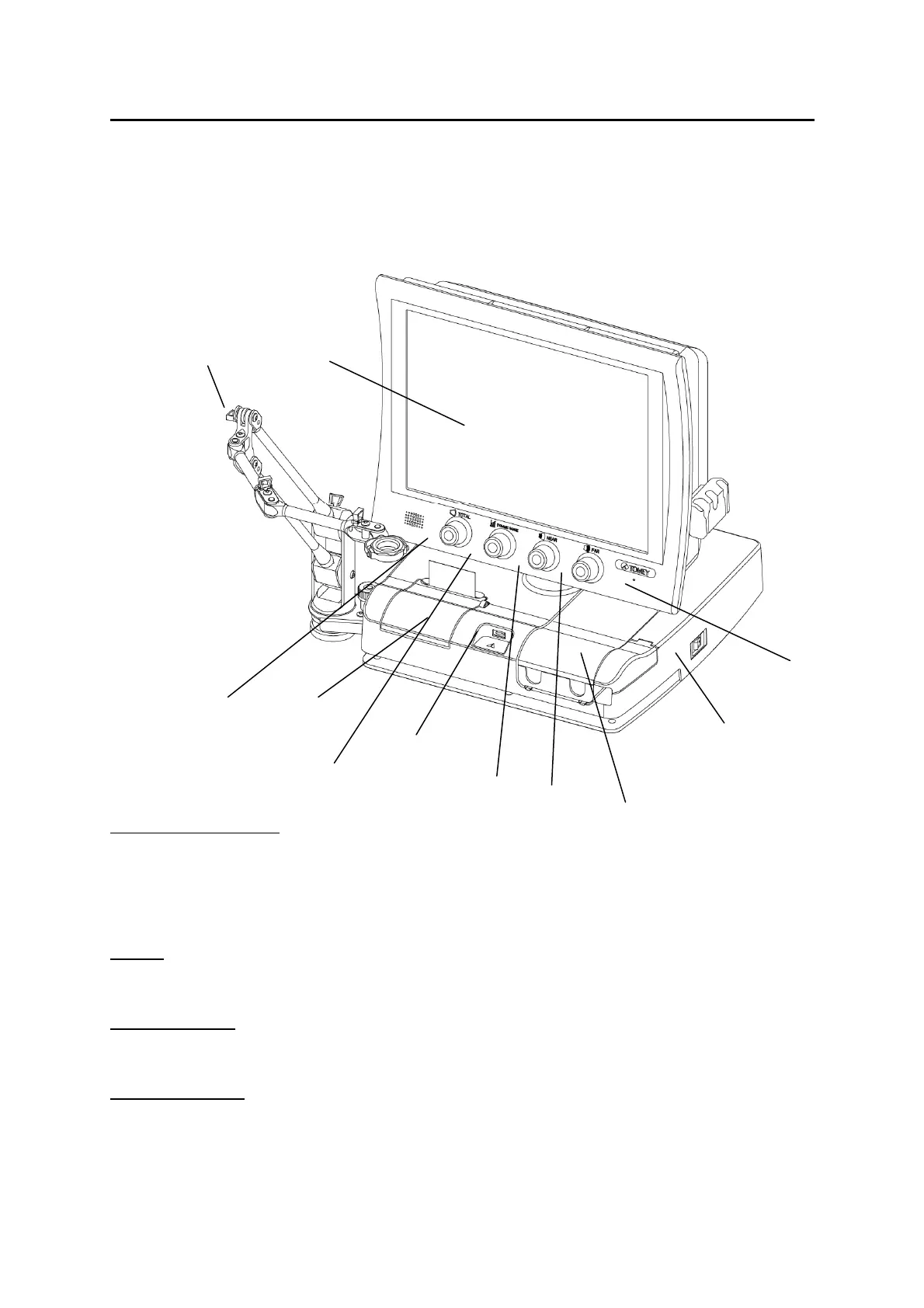

2.1 Front of the main unit
(1) LCD and touch panel
Topographic images, waveforms, and measurements are displayed on the 15” TFT color LCD (1,024
x 768 dots).
Operations are performed by touching buttons on the touch panel attached over the
LCD.
(2) Arm
Attaches the probe for diagnosing images and assists probe operation.
(3) Built-in printer
Prints received measurement results or calculation results.
(4) USB connector
A connector for connecting
axial length and corneal thickness measurement instrument
AL-4000,
external storage media such as USB flash memory, video printer, and external ID
input device, etc.
(1)
(4)
(2)
(8)
(7)
(5)
(6)
(3)
(11)
(10)
(9)
2-01
