3.7.5 R/L alignment display function
This function simultaneously displays data of left and right eye by displaying two
aligned tabs which contain data of the patient’s left and right eye respectively.
However, this screen can only be used for viewing, and it is not possible to perform
setting or editing on it.

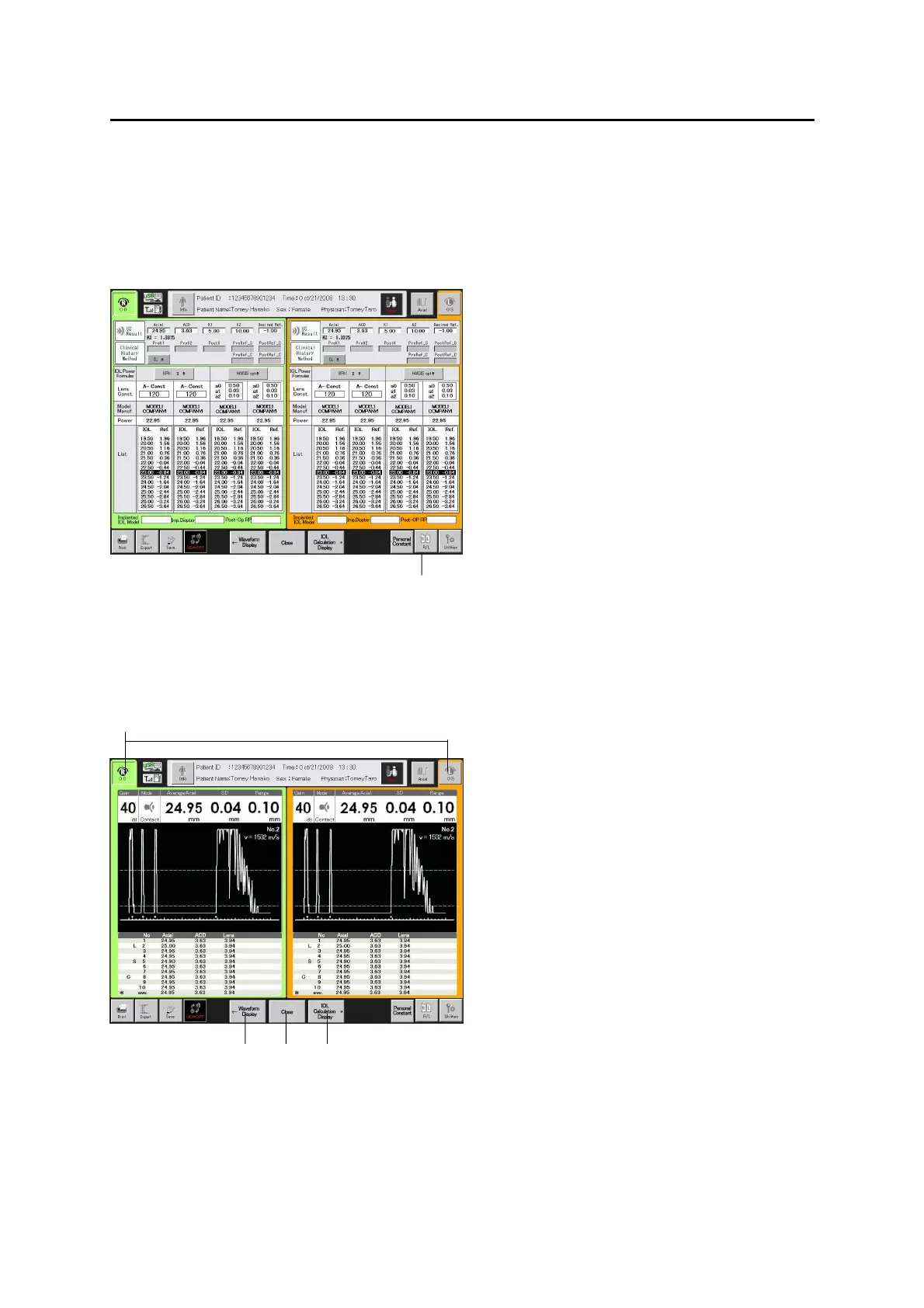

1) Touch the “R/L” button (1) to display the R/L alignment display screen.
2) Click the “Waveform Display” button (2) to display aligned waveforms in the
waveform display fields.
3) Click the “IOL Calculation Display” button (3) to display aligned data in the
IOL calculation fields.
4) Touch “Back” (4) or “Inspected Eye Selection” button (5) to return to the
display of a single eye only.
(4)
(5)
(3) (2)
3-109
3-108
(1)
(Fig. 1)
