3-243

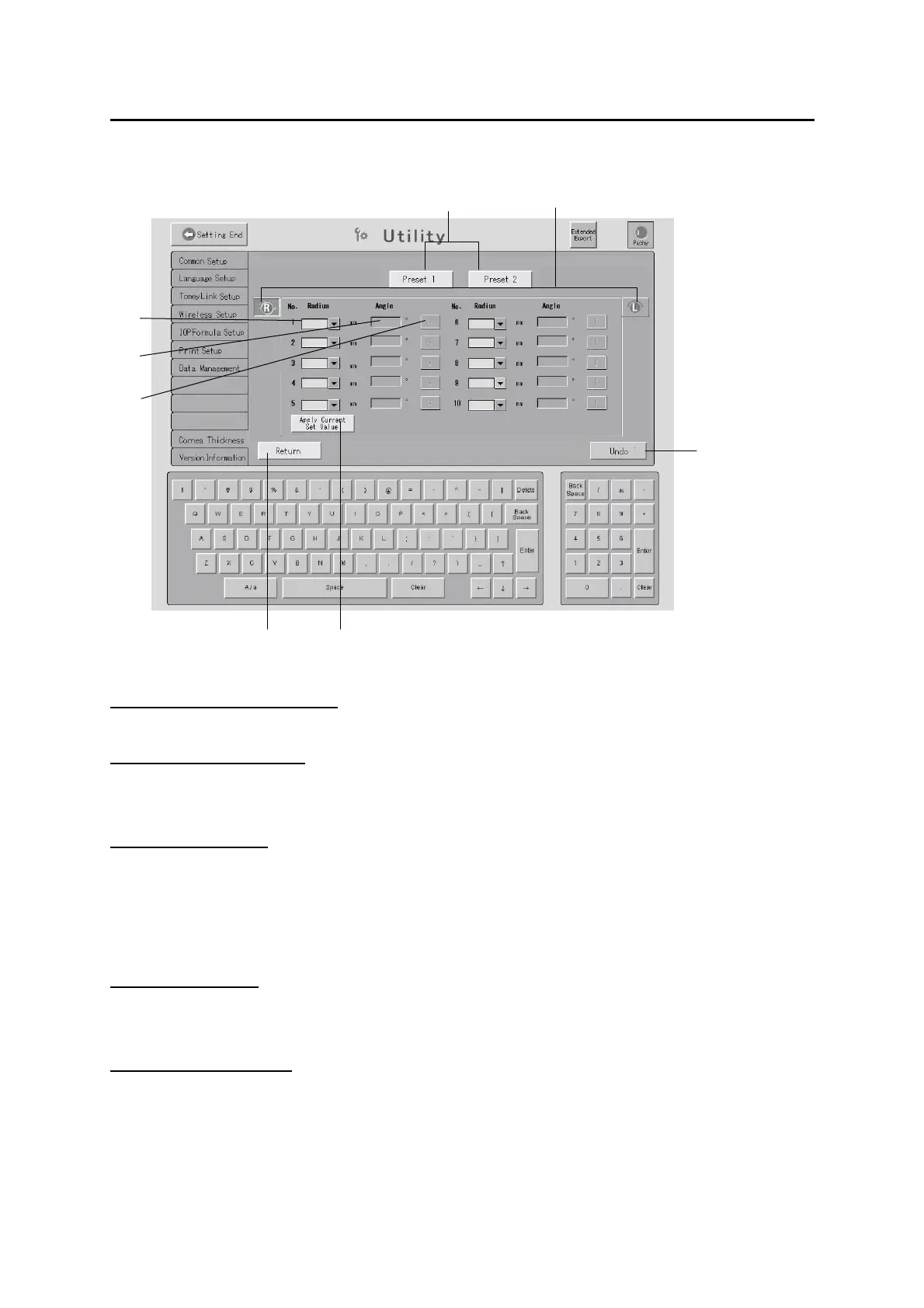

[Measurement point setting screen]
(1) “Preset 1/Preset 2” buttons
Selects measurement points to be edited and opens the measurement point edit screen.
(2) “Inspected eye” button
Touch the “R” or “L” button on the tab to display the measurement point setting screen for the
selected eye (right or left).
(3) Radius input field
Specifies the distance from the center of the measurement point. Touch the input field. The
keypad appears. Touch the “” on the right of the input field The pull down menu appears.
Select CCT or enter the desired value using the keypad.
[Input range] Radius: 0.10 – 15.00 mm
(4) Angle input field
Enter the angle from the horizontal axis at the measurement point.
[Input range] Angle: 0 – 179
(5) “S/I selection” button
Touching this button changes the setting between “S” and “I” alternately.
3-164
(3)
(8)
(1)
(2)
(4)
(5)
(7)
(6)
