Topcon Net-G3A User Manual

Connector Specifications
P/N 7010-0935
A-9
Connector Specifications
The Net-G3A has the following connectors:
Power Connector

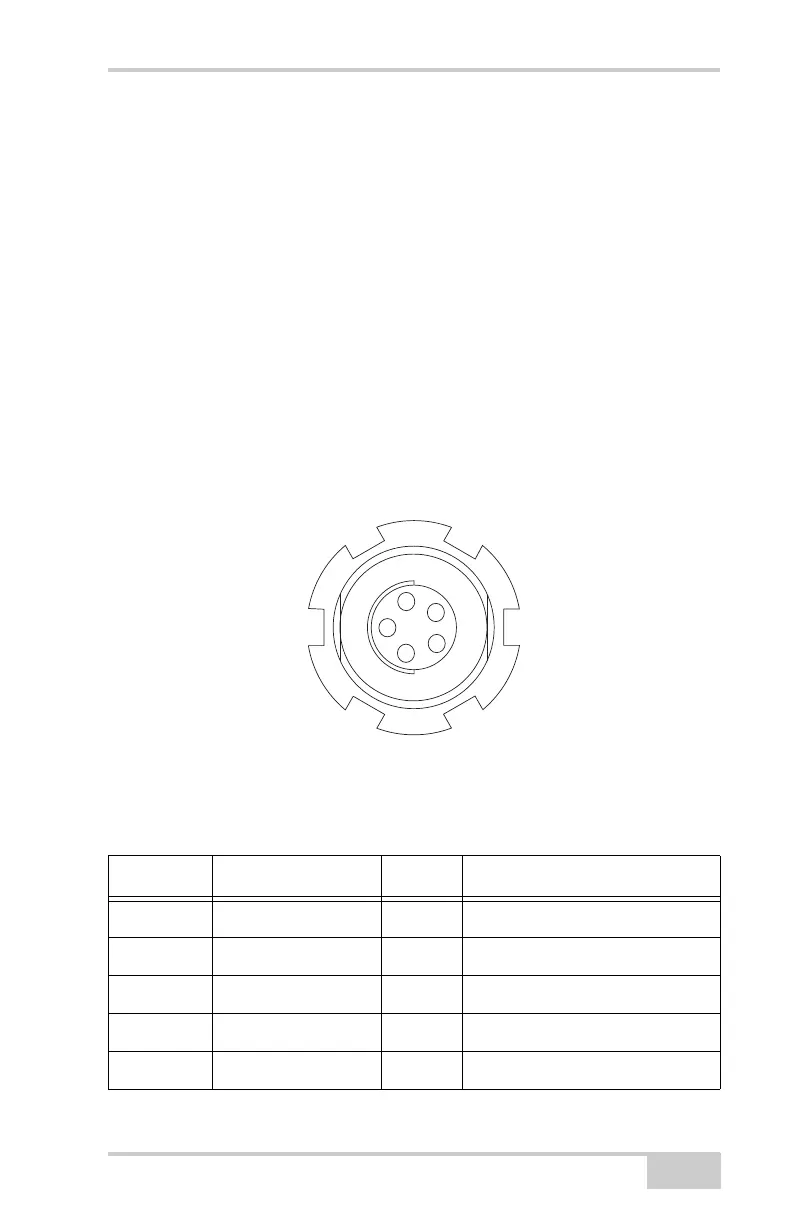

The power connector (Figure A-2) is a sealed receptacle, 5 pin, ODU
part number G80F1C-T05QF00-0000.
Figure A-2. Power Connector
Table A-3 gives power connector specifications.
•Power x 2
• Serial RS232C: 1xODU and
3xDE-9
• USB Host/Device
•Ethernet
• GPS antenna
• 1PPS
•Event marker
• External Frequency
Table A-3. Power Connector Specifications
Number Signal Name Dir Details
1 Power_INP P 6 to 28 volts DC input
2 Power_INP P 6 to 28 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Aux_Power P 6 to 28 volts DC input
1
2
3
4
5
Net-G3A_OM_Book.book Page 9 Thursday, May 14, 2009 8:49 AM
