Topcon Net-G3A - Establishing an RS232 Cable Connection

Pre-setup Preparation
NET-G3A Operator’s Manual
2-16
Establishing an RS232 Cable
Connection
The following steps describe the physical connection of the cable,
receiver, and computer. For a description of a software connection
with the receiver, see “PC-CDU Connection Parameters” on page 2-
22.
1. Using the RS232 cable, connect the serial port of your computer
(usually COM1) to the receiver’s serial port (either ODU or
DE-9). Use the serial port most convenient for you because both
are equal in functionality but simply require different cables.

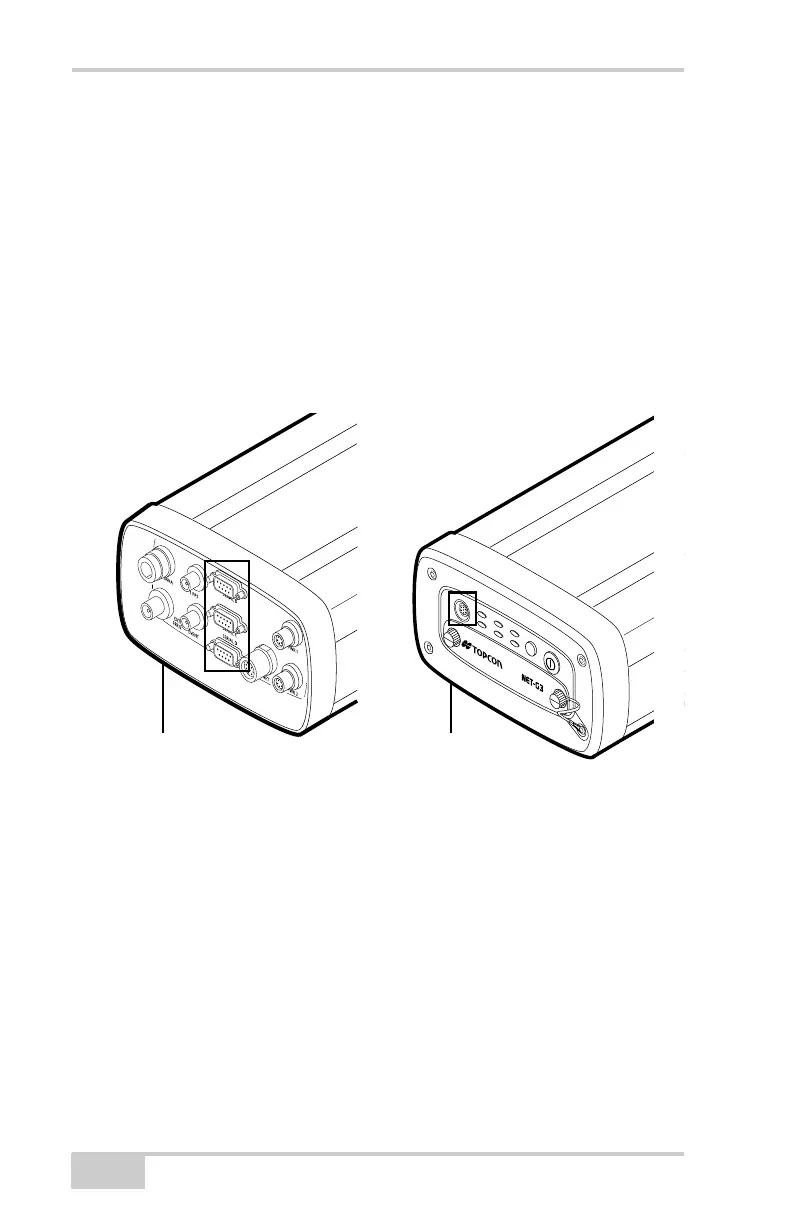

Figure 2-6. Net-G3A Serial Ports
2. Press the power buttons on the receiver and computer to turn
them on.
FN
FN
STAT LINK PWR 1
REC RX/TX
PWR 2
A
Rear
Panel
Front
Panel
