Getting Acquainted
P/N 7010-0935
1-15
• Ethernet/USB port (12-pin ODU-MINI-SNAP) – used to connect
the receiver to a computer or network via the adapter cable, which
is also connected to the Ethernet/USB port.

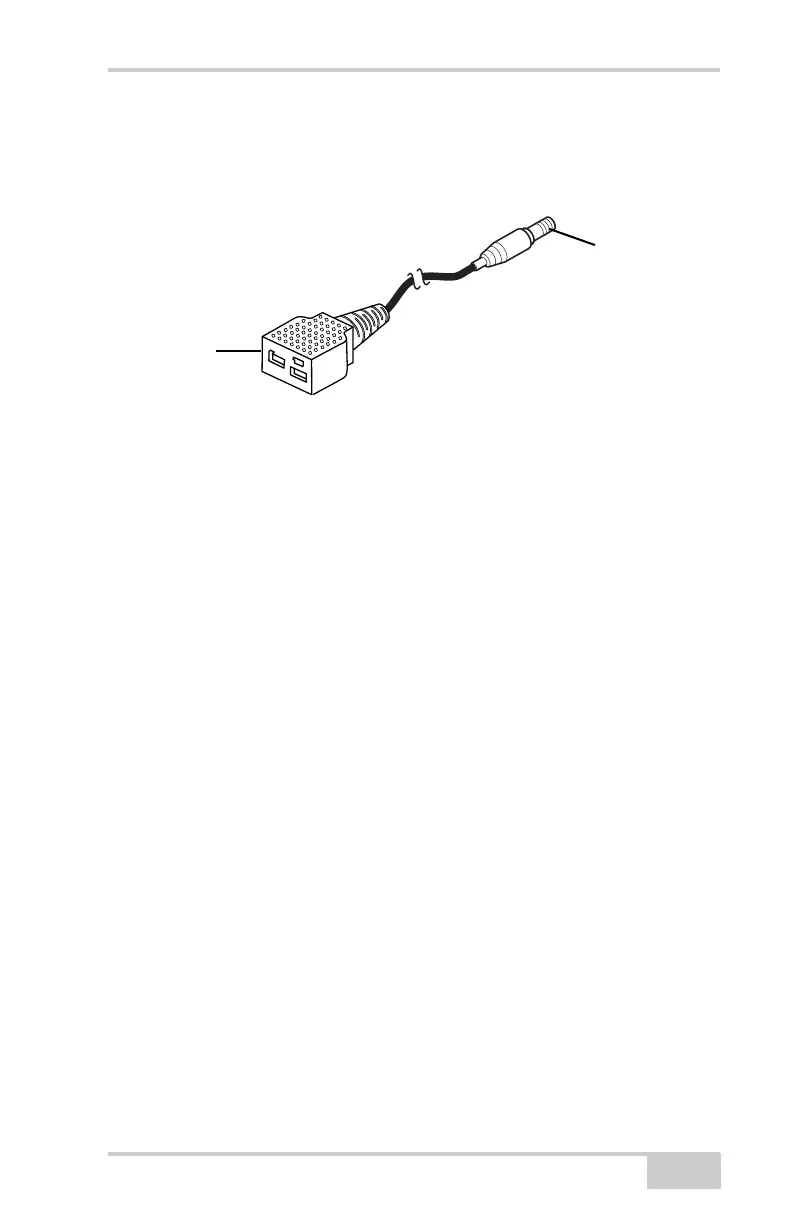

Figure 1-4. Adapter Cable
• 1 PPS port (BNC connector) – used for generating one pulse per
second signals with programmable reference time, period, and
offset. The pulse is synchronized to a specified reference time.
• Event Marker port (BNC connector) – used to input an event
synchronized with a specified time reference.
• GPS Antenna port (Type N connector) – used for detecting GNSS
signals.
• External Frequency port (BNC connector) – used for an external
frequency input or the receiver’s internal frequency output.
• Power ports (5 pin ODU-MINI-SNAP) – used to connect the
receiver to an external power source.
• USB (Mini-B) – used for high-speed data transfer and
communication between the receiver and an external device. This
port is located on the adapter cable, which is connected to the
Ethernet/USB port.
• USB (Type A) – used to transfer raw data files from the receiver’s
CF card to the connected USB mass storage device (UMS). This
Ethernet and
USB ports
Connects to the
Ethernet/USB
port on the
receiver
