Getting Ready to Pave
Topcon Paver System Five Operator’s Manual
5-4
3. Using the manual thickness adjustment cranks or hand cranks
on the paver, null the screed and set the proper angle of attack
(Figure 5-4).

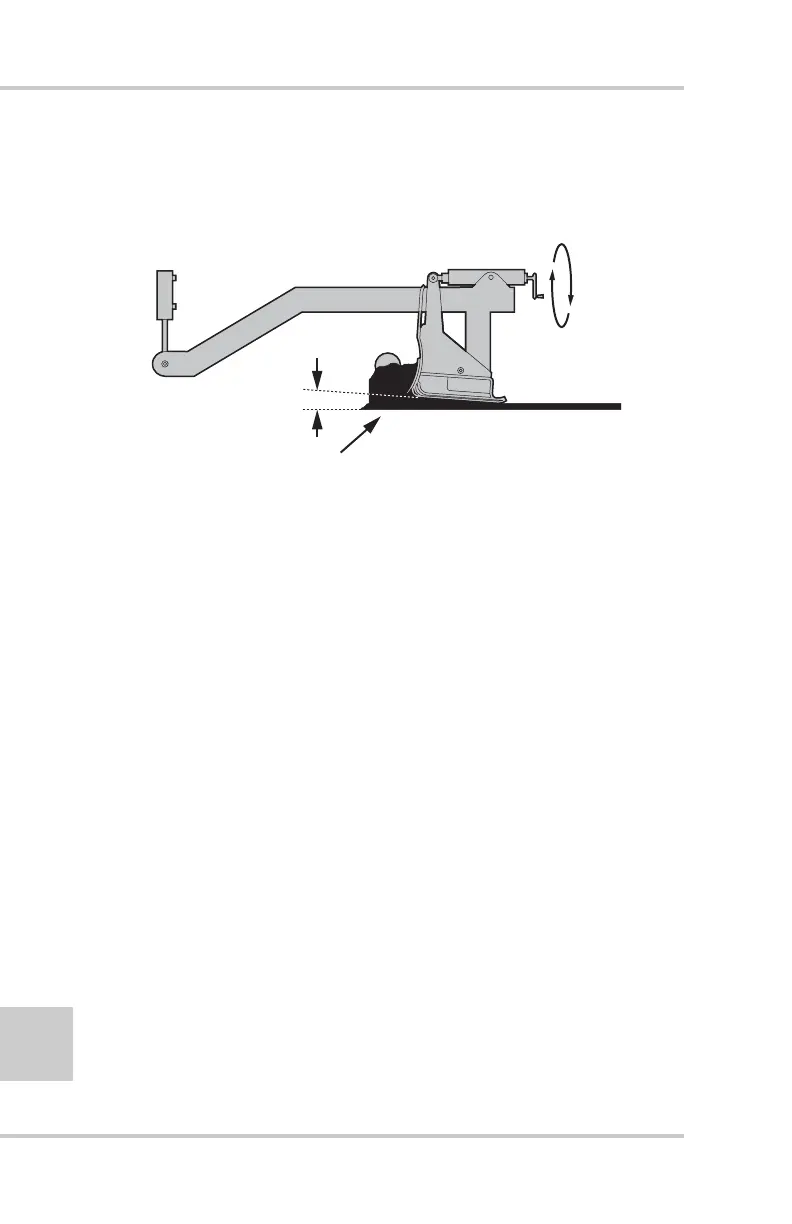

Figure 5-4. Manually Adjust Thickness of Mat
4. Next, turn on the auger feeder controls to place the asphalt in
front of the screed.
Sonic Tracker Setup
The following steps describe installing and positioning the Sonic
Tracker II on the Paver (Figure 5-5 on page 5-5).
1. Connect the coil cord to the Tracker.
2. Bolt the Tracker to the bracket, and visually check to get the
Sonic Tracker plumb.
3. Make one wrap of the coil cord around the L-Bar. This will act
as a strain relief for the connector on the Tracker.
Be sure the coil cord snap hook is in place and secure.
4. If needed, snap the temperature bail into place
5. Place the Sonic Tracker over the reference: raise or lower the
Tracker bracket to position it at a proper height above the grade
reference.
6. Push the Survey button on the Control Box to lock trackers on-
grade.
P
roper Screed Angle of Attack
Thickne
ss
Crank
s
Correct Head of Material
