Setting Elevated Stringline
P/N 7010-0341 www.topconpositioning.com
3-9
Attaching Stringline to the Grade Stake
Some jobs may require the stringline to be secured directly to
the grade stake rather than attached to the clip.
1. Mark the lath with the desired “hike-up” above grade
(Figure 3-12).

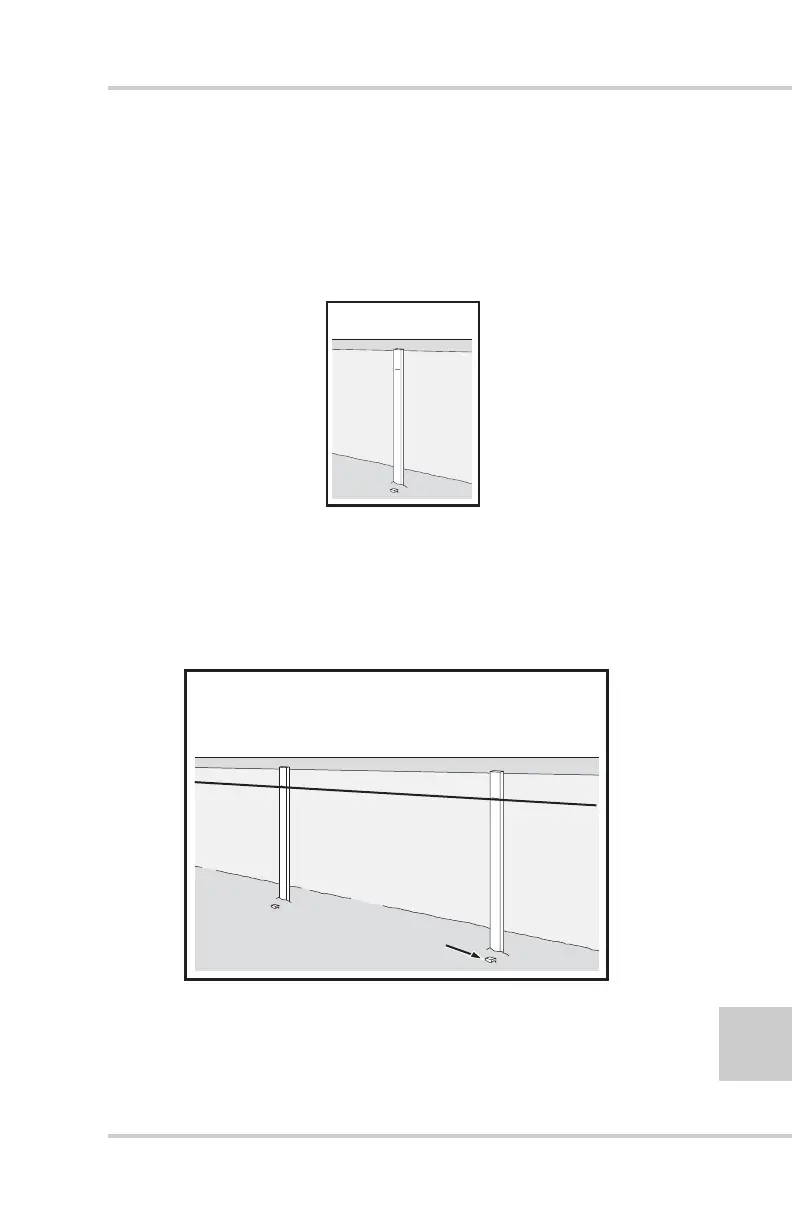

Figure 3-12. Mark Lath with Hike-up Height
2. Secure an anchor pin at each end of the stringline and pull
the stringline tight.
3. At each station, staple or Ty-Wrap the stringline directly to
the witness lath at the desired “hike-up” (Figure 3-13).
Figure 3-13. Stringline Attached to Lath
4. Due to the height of some stakes, raise the Tracker or cut
off the tops of the stakes.
2
V
2
V
2
V
2
V
2
V
2
V
Hub
Hub
Hub
