Topcon Paver System 5 User Manual

Paving Applications
Topcon Paver System Five Operator’s Manual
7-10

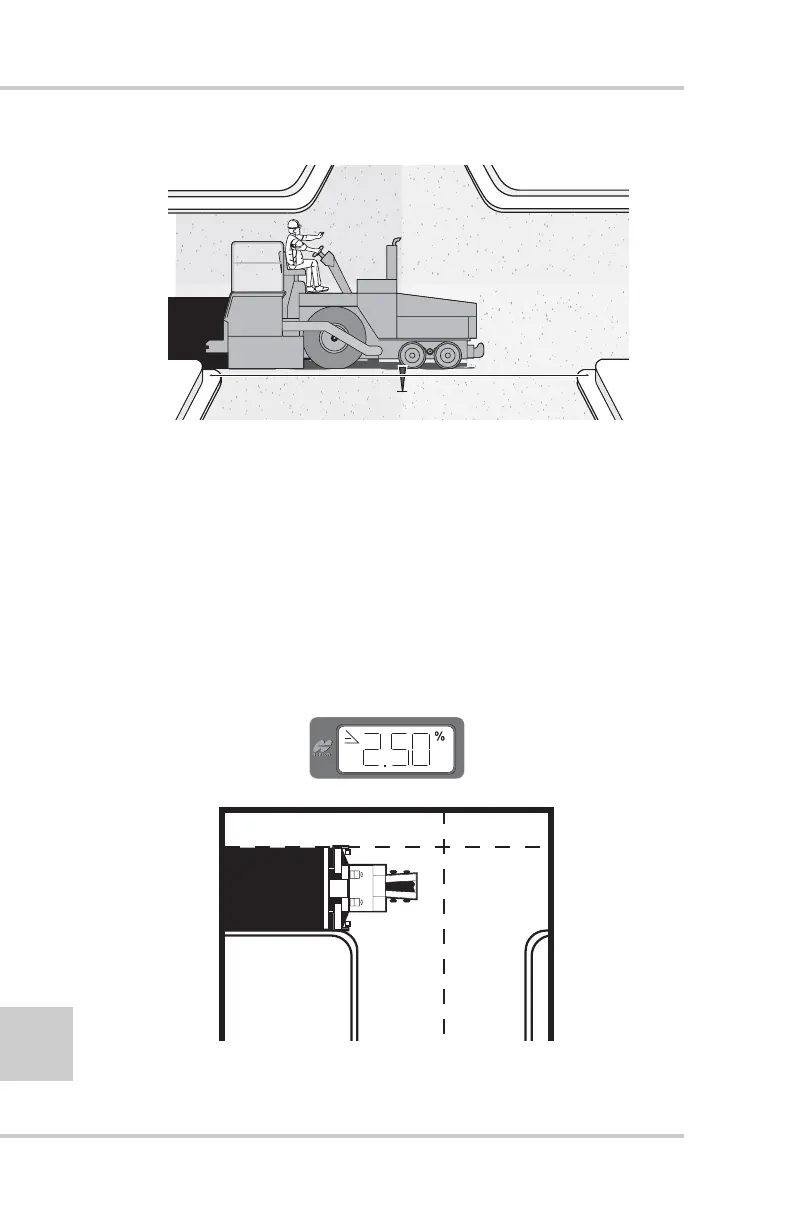

Figure 7-16. Paving Through Intersection Using Hub
This constant reference will give you complete control through
the intersection and will also ensure that you tie in perfectly to
both curbs.
Paving Intersections with Cross Slope
When paving with slope, intersections do not require any
adjustments if the “mainline” cross slope does not change. If the
slope does change, then a combination of slope and Tracker should
be used (Figure 7-17).
Figure 7-17. Paving Intersections with Cross Slopes
