Topcon Paver System Five Operator’s Manual
4-34
Tes t
This menu item tests the valves for shorts and disconnected
valves. It test the Raise Valve first and then the Lower Valve.
1. From the Performance Menu, press the Auto button to
select Test Mode (Figure 4-43).

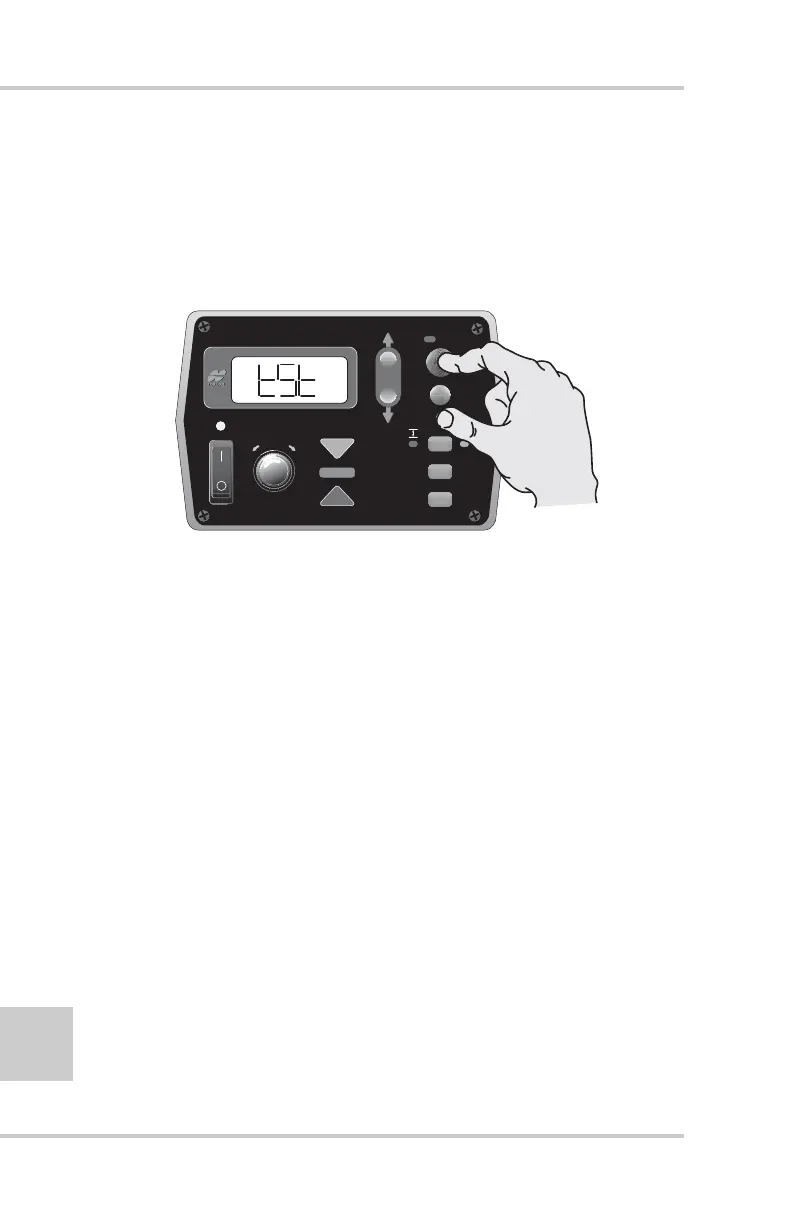

Figure 4-43. Select Test Mode
The raise valves test first.
• The display shows “Pass” if the raise valves test OK.
• If there is a problem, the display will read “Open” or
“Short”.
Table 4-5 on page 4-35 summarizes the Test solutions.
2. Press the Auto button to test the lower valves.
• The display shows “Pass” if the lower valves test OK.
• If there is a problem, the display will read “Open” or
“Short”.
Table 4-5 on page 4-35 summarizes the Test solutions.
FiveSystem
AU TO
S UR VEY
SET
(M E NU )
