Topcon Paver System 5 User Manual

Control Box
P/N 7010-0341 www.topconpositioning.com
4-11
Slope/Elevation Button
The elevation/slope button (Figure 4-15) is used to set the
System Five™ for slope or elevation control

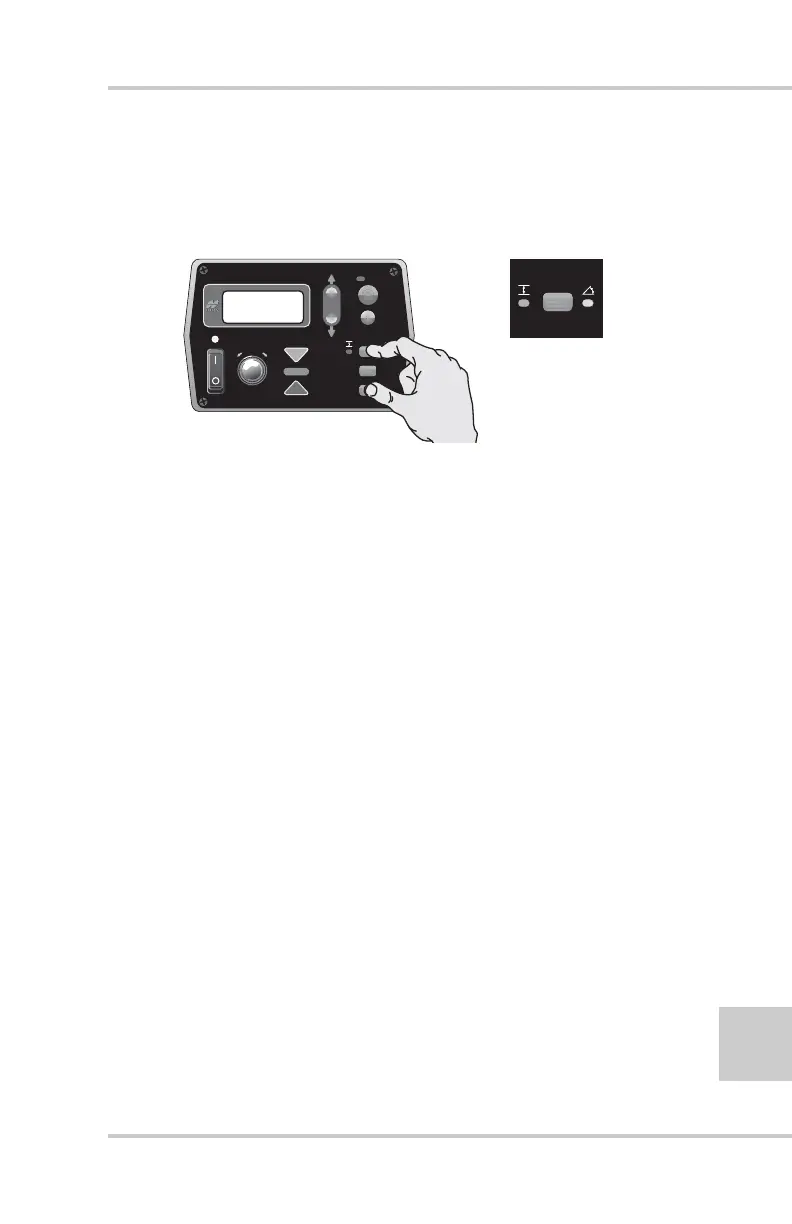

Figure 4-15. Slope/Elevation Button
Slope Mode
If the Control Box is connected to a slope sensor, the
desired cross slope can be dialed in for automatic control.
1. Press the Slope/Elevation button: the yellow LED next
to the Cross Slope Symbol illuminates.
2. Turn the Adjustment Knob to get the desired slope.
Elevation Mode
Press the Slope/Elevation button: the green LED next to the
Elevation Symbol illuminates.
FiveSystem
AU TO
S UR VEY
SET
(ME
NU )
E l eva t ion
M od e
S lop e
M od e
