Grade Adjustment Knob
The grade adjustment knob makes measured adjustments to
elevation and slope settings, or cycles through menu options.
• Knob adjusts the grade height while in elevation control
(Figure 4-4).

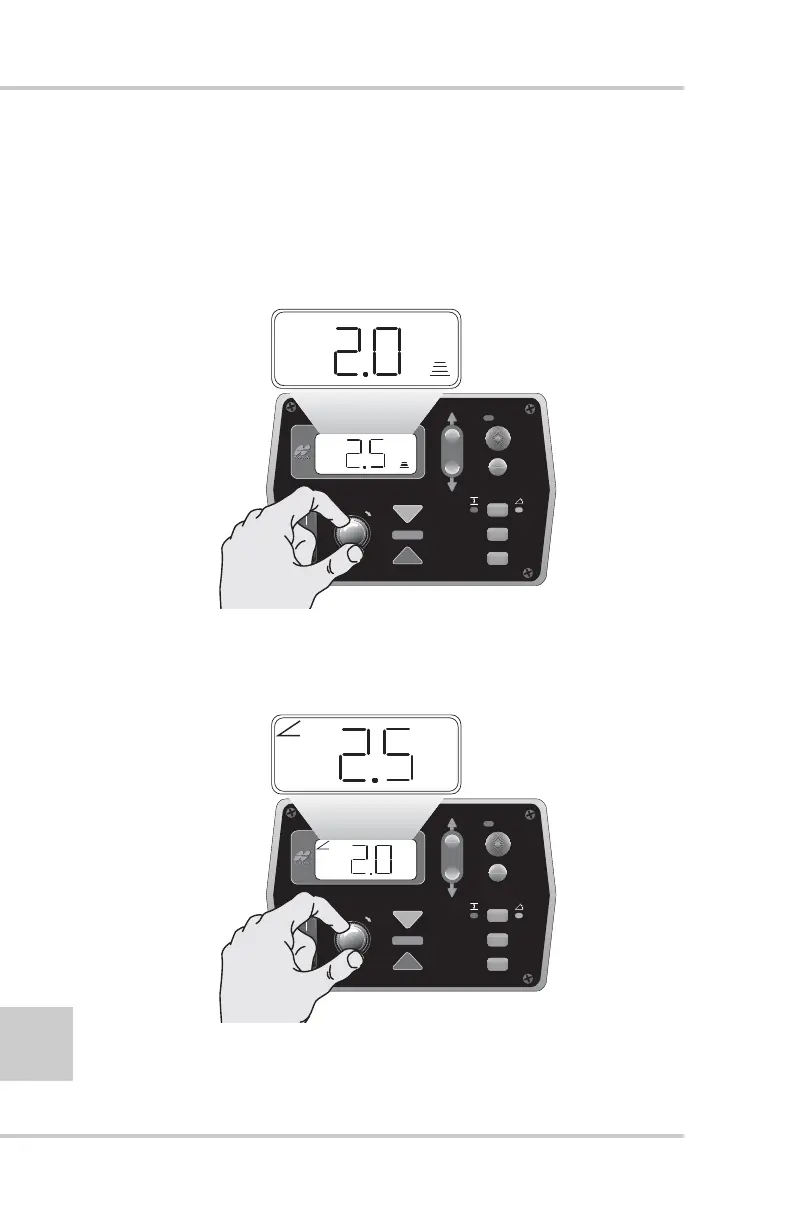

Figure 4-4. Adjusting Grade Height
• Knob adjusts the percentage of slope while in cross slope
control (Figure 4-5).
Figure 4-5. Adjusting Cross Slope Control
