Performance Menu Settings
P/N 7010-0341 www.topconpositioning.com
4-27
2. Turn the Grade Adjustment Knob to select the desired
value (Figure 4-34).

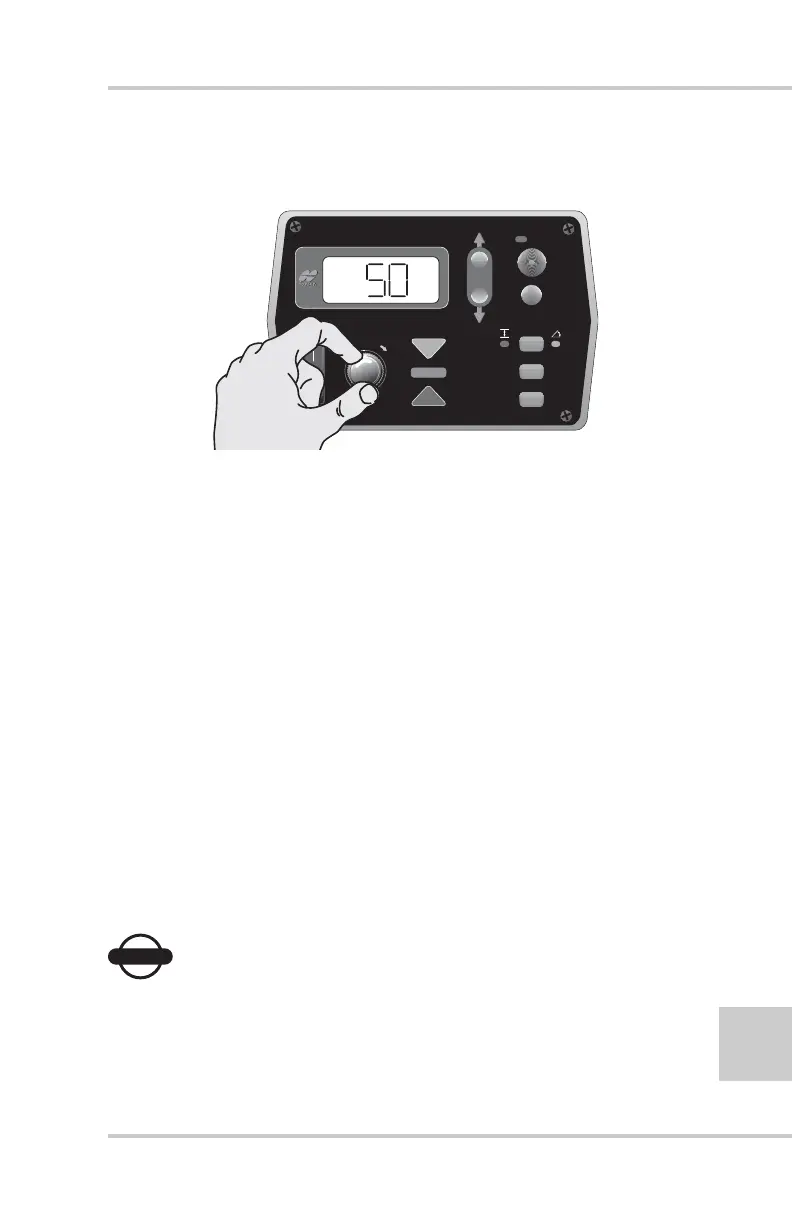

Figure 4-34. Select Value
3. Press the Auto button again to store the value.
4. Rotate the Grade Adjustment Knob to access another item
in the Performance Menu, or press the Set/Menu button to
exit.
Deadband Elevation
Deadband is the area of the Working Window that is on-grade.
While the reference is within that area, the paver’s valves are
idle (closed). Therefore the wider the Deadband (on-grade
area), the more a reference can move up or down without a
correction being initiated. Once the signal from the reference is
out of the deadband, System Five will drive the hydraulics to
place the reference back in the CENTER of the deadband.
• Deadband Elevation value range – 1 to 30mm
• Factory preset – 3mm (01’ or 1/8”)
NOTICE
NOTICE
Select the amount of Deadband carefully
selected. Too small of a Deadband will cause the
tow point cylinder to constantly hunt up and
FiveSystem
AU
TO
S
UR
VEY
SET
(M
E
NU
)
