Topcon Paver System 5 User Manual

Tracker and SAS Placement
Topcon Paver System Five Operator’s Manual
6-8
Placement When Using Surface Stringline
Sometimes the surface to be paved contains pot holes or the
surface is too broken up to use as a joint match reference.
Setting an elevated stringline is too time consuming, especially
for small, divided up projects. In these applications, surface
stringline would be a good alternative (Figure 6-9). See
“Setting Surface Stringline” on page 3-2 for further details.

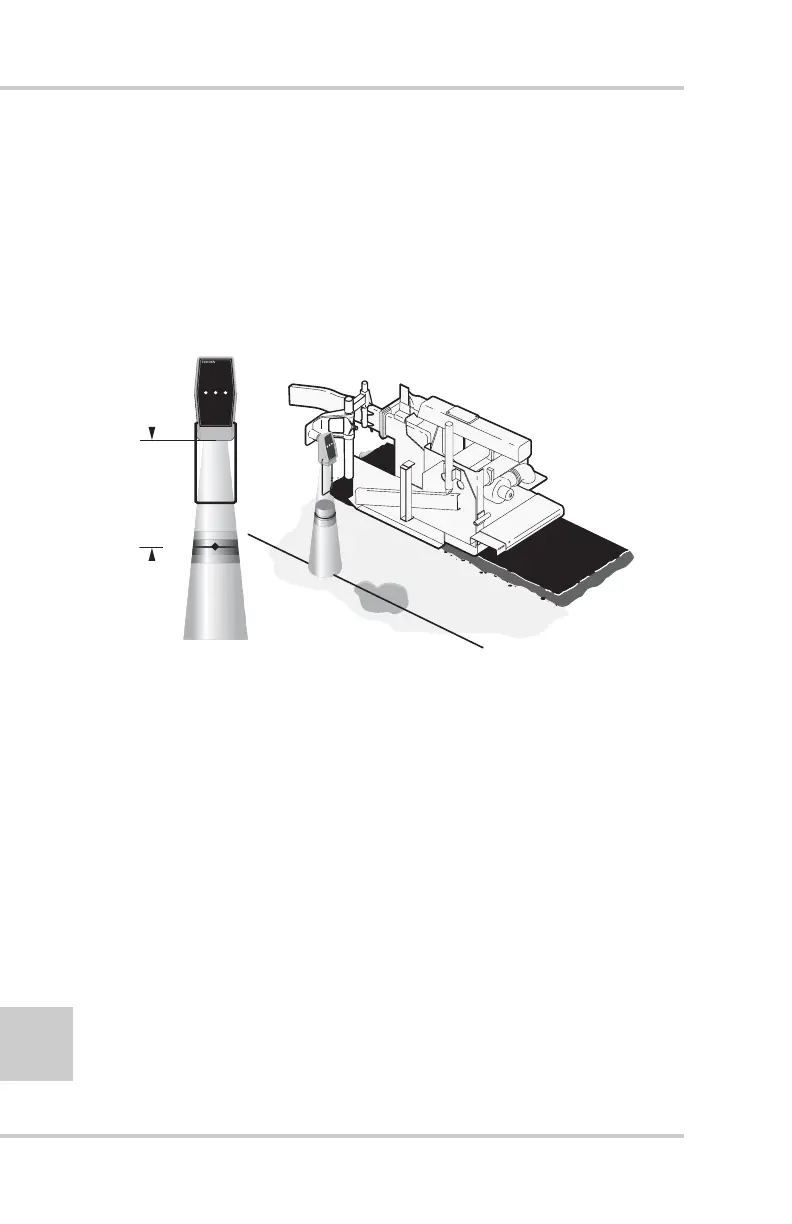

Figure 6-9. Tracker Placement – Pot Holes
Sonic Tracker Placement in Relation
to Screed
As a tracker is moved closer to or further away from the screed, the
response of the screed to an elevation correction changes. A rule of
thumb is to place the tracker about 1/3 to 2/3 the length of the tow
arm forward of the screed pivot point (Figure 6-10 on page 6-9).
S onic T racker II
T
14"
to
18"
S
o
n
i
c
T
r
a
c
k
e
r
I
I
S
o
n
i
c
T
r
a
c
k
e
r
I
I
